Xinje TS Series User Manual

6

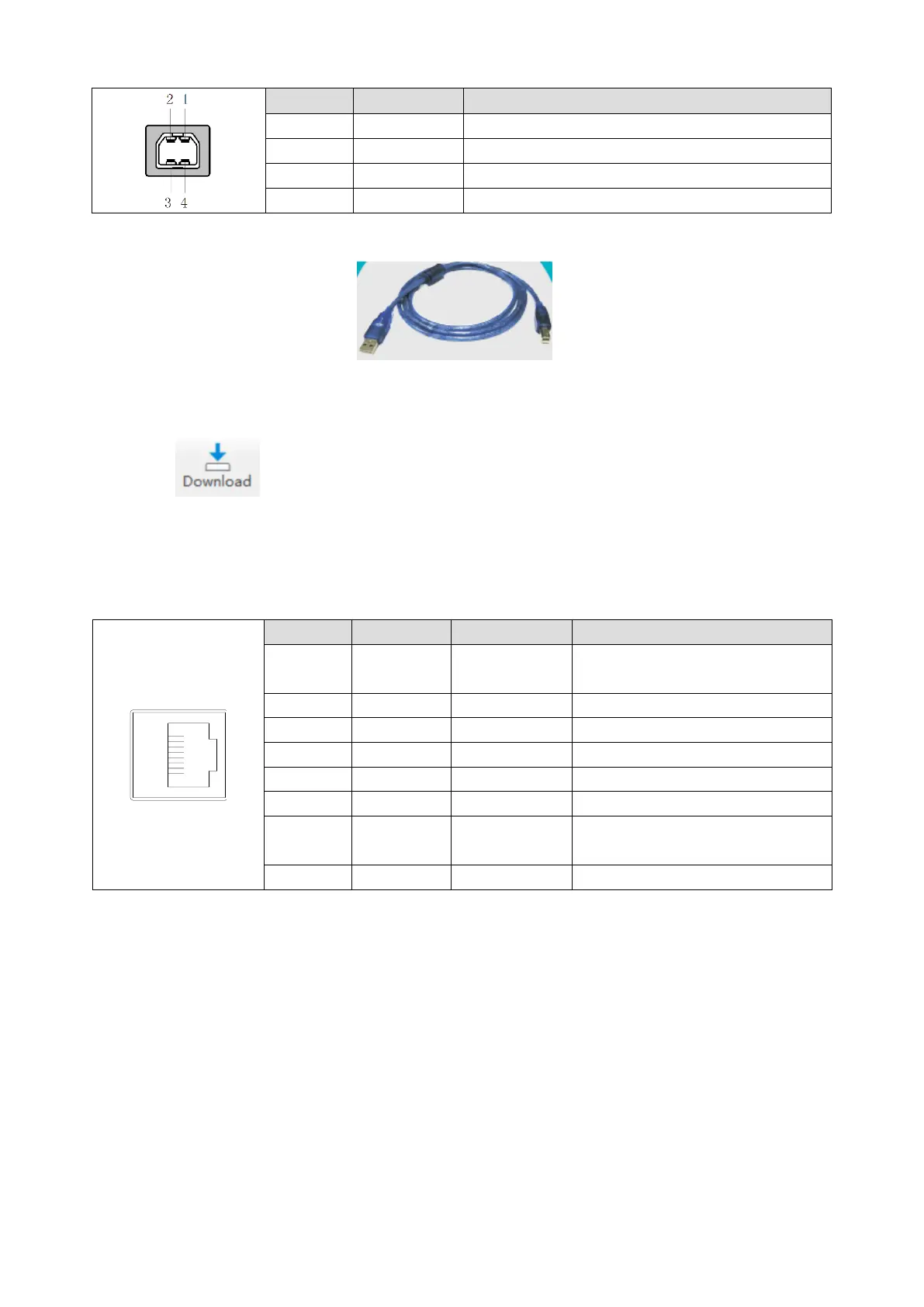

Pin
Definition
Explanation
1
+5V
+5V voltage signal
2
DATA-
Data﹢signal
3
DATA+
Data﹣signal
4
GND
Signal ground
(1) Please use the shielded USB cable
(2) The TouchWin Pro editing tool and USB drive must be correctly installed before using.
(3) After the drive is correctly installed, confirm that the computer is correctly connected to the TS5L series
HMI, click to download HMI program.
5. RJ45 port
RJ45 port pin definition:
1
8
Pin
Color
Definition
Explanation
1
Orange
white
TXD+
Data send +
2
Orange
TXD-
Data send -
3
Green white
RXD+
Data receive +
4
Blue
-
-
5
Blue white
-
-
6
Green
RXD-
Data receive -
7
Brown
white
-
-
8
Brown
-
-
