We take XMP3-18R as an example to explain how to build a project.

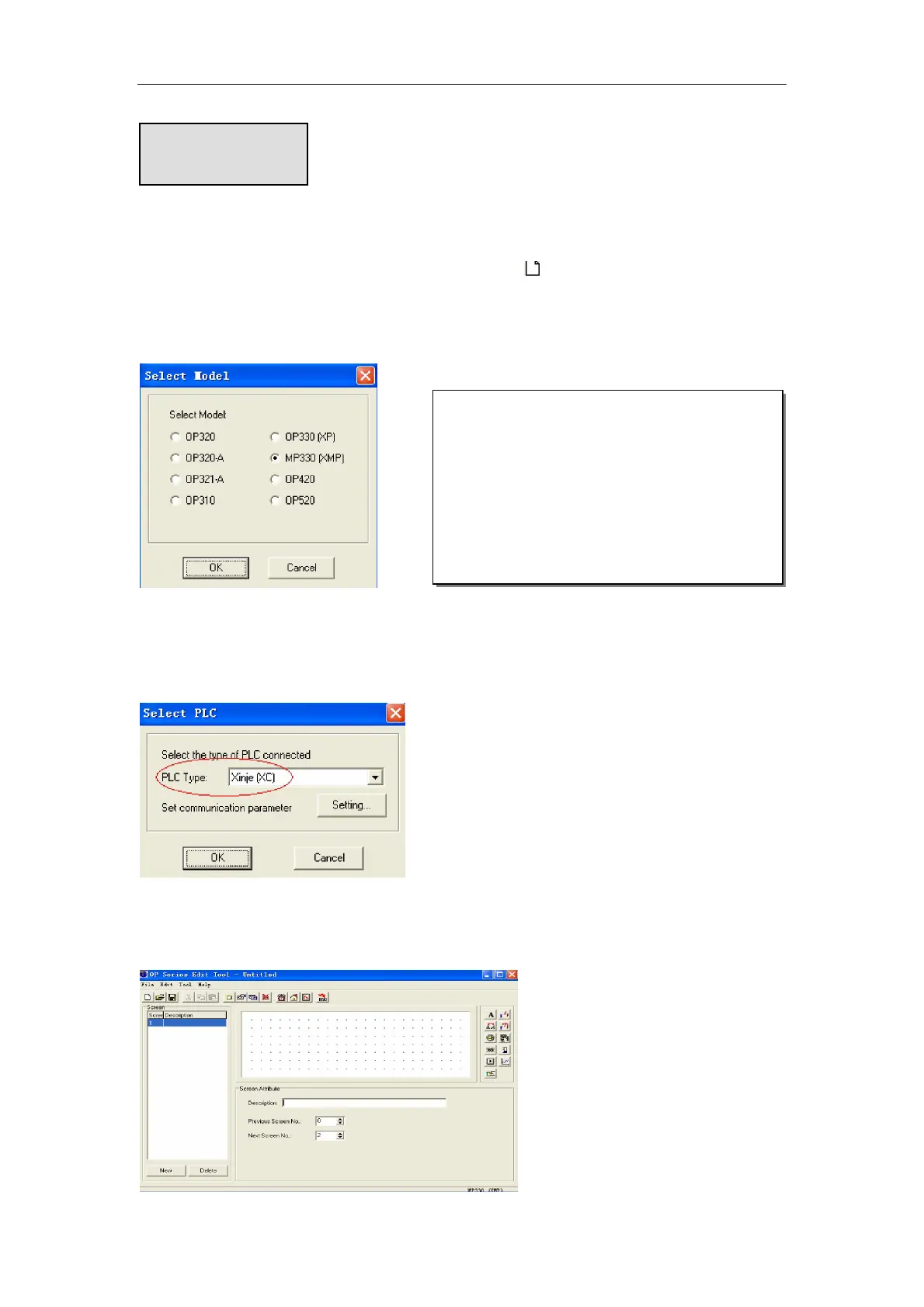

1. build a new project
Open the OP software, click “file”-“new project” or click “
” to build a new project.
2. choose the display type
In the “select model” window, choose the correct type of XP/XMP. For this example we select
“MP330(XMP)”.
3. select PLC type
As the XP/XMP is a integrated product of OP and XC, the OP will communicate with XC inside
the product, the communication parameters are defaulted.
4. edit the screen
After these three steps, we can enter screen editing mode. For the editing details, please refer to
OP Series Display User Manual chapter 2.
Build a project
This window shows all the display type
supported by OP software.
We can select the correct type according to the
content in the bracket.
XP series should select OP330
XMP series should select MP330
To Next Page
