XK A800 - Page 6

Vertical tail
N, _ 25°30PM ?.'S‘EOPM 26 é’

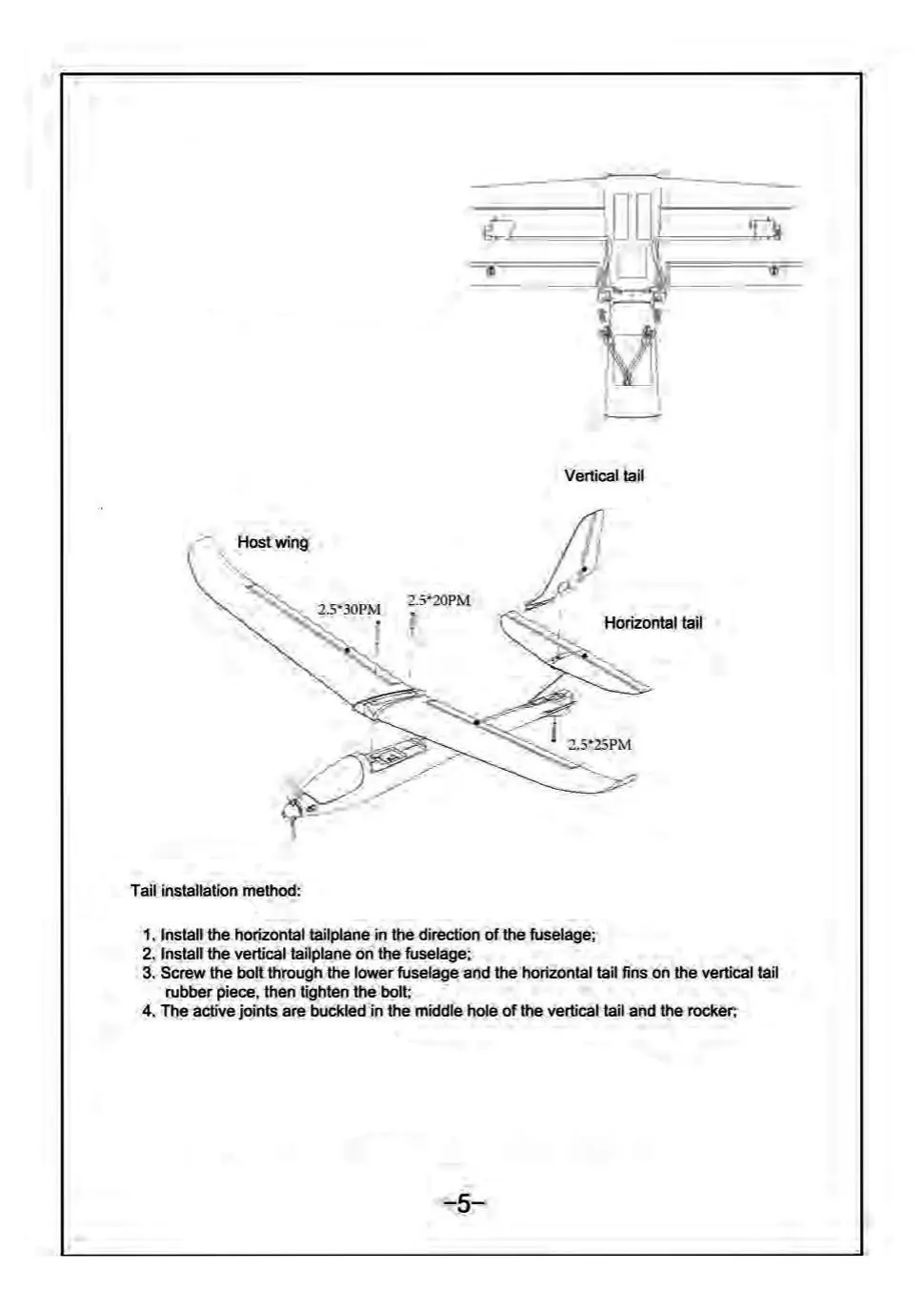

Tail installation method:
1. Install the horizontal tailplane in the direction of the fuselage;
2. Install the vertical tailplane on the fuselage;
3. Screw the bolt through the lower fuselage and the horizontal tail fins on the vertical tail
rubber piece, then tighten the bolt;
4, The active joints are buckled in the middle hole of the vertical lail and the rocker;
