XMOD Drive Thru DTX1 - Page 8

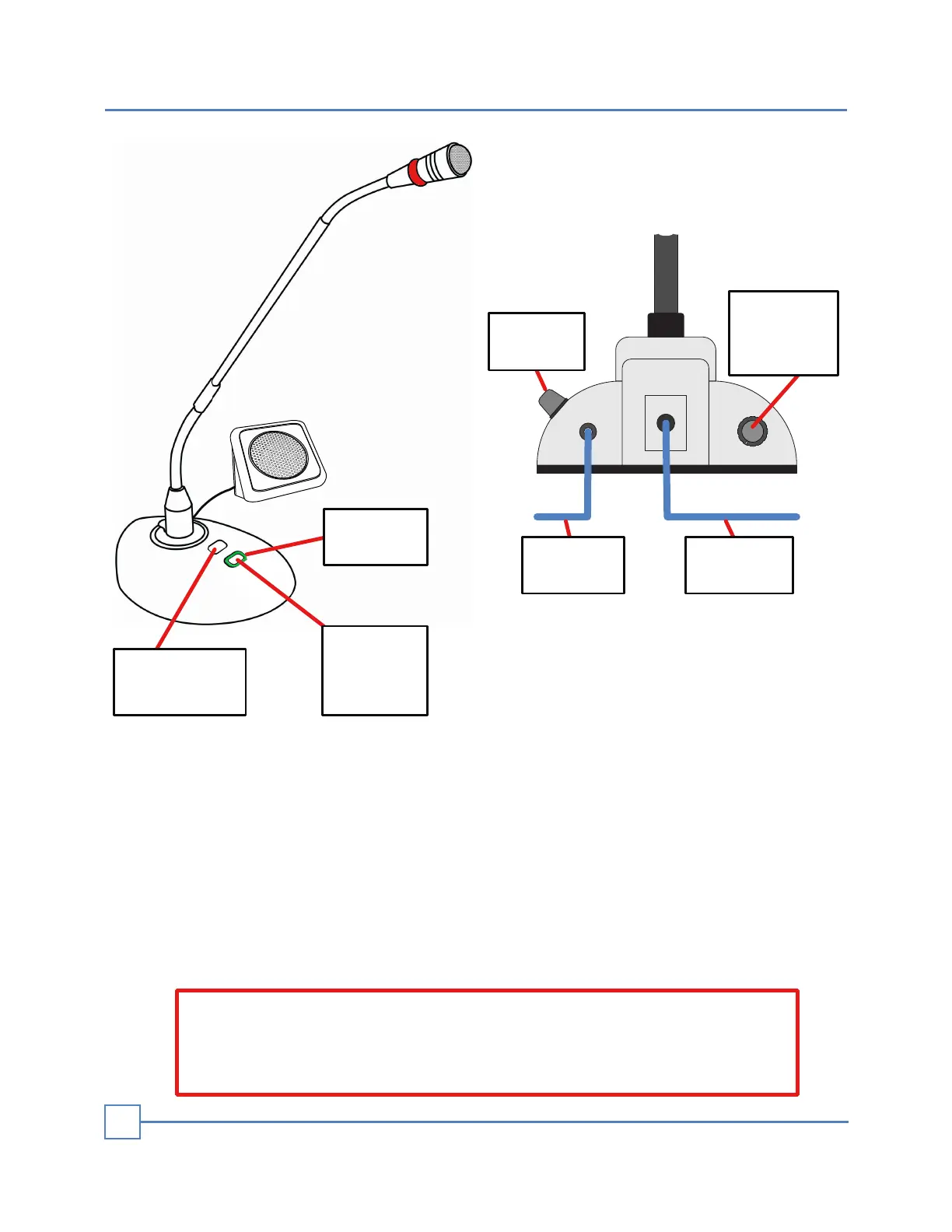

SPEAKER
MIC
Hands-free
Button
Push to
Talk
Button
LED
Indicator
To
Speaker
To Base
Station
Speaker
Volume
Car Alert
Beep
Volume
LEDS INDICATORS
• WHITE blinking: A vehicle present in the drive thru lane. Waiting for answer.
• GREEN: Active device, taking orders. Open Microphone with customer.
• RED: Active device, taking orders. Microphone Muted.
• PURPLE: Monitoring drive-thru customer audio.
DESKTOP SPEAKER
The DTX1 system support a dierent types of desktop speakers. They must be rated to a
maximum output of 10 Watts, 4-8 ohms with a 3.5 mm. jack connector.
NOTE
Don’t connect any device (PC, router, etc) to the Base Station
Ethernet jack, other than the Desktop Mic Base. This jack has
voltages that can damage your equipment.
DESKTOP MIC - SPEAKER
8
