Page 23
gas requirements
gas requirements and hook-up (cont'd.)
Gas
Supply
Inside
Wall
Outside
Wall
Shut-Off
Male
Fitting
To Grill
Regulator
Quick Disconnect
When Using 12ft. Hose
Locking
Shut-Off
Flex-Line Or
12" Hose
Grill
Regulator
Swivel
Nut
12ft. Hose
Or Flex Line

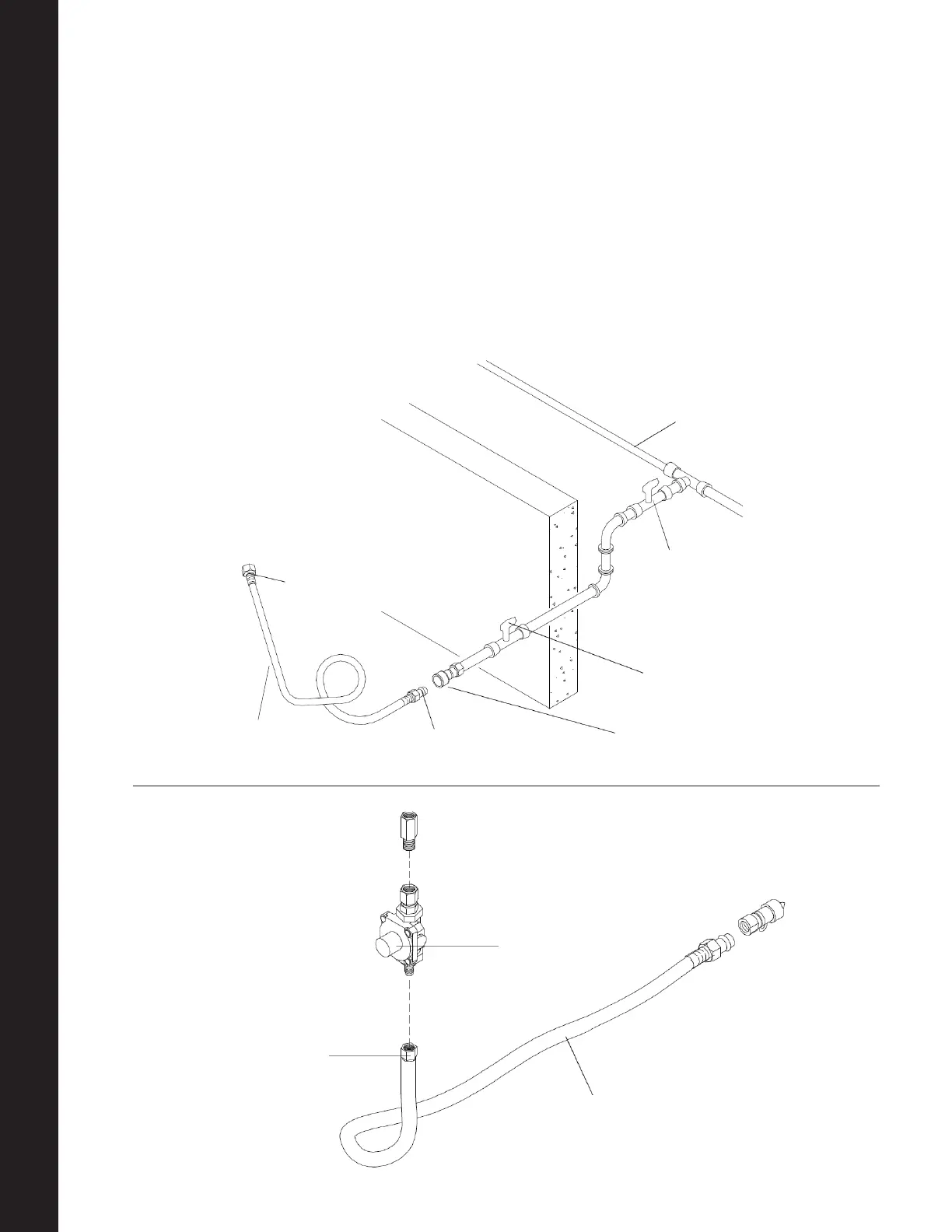

CONNECTING TO A PERMANENTLY
PLUMBED GAS LINE
Follow the diagrams below when
connecting gas to your grill from a natural
gas line or a permanently plumbed hard
piped LP connection.
NOTE: When using a portable cart
mounted grill, the use of a 12ft. Q.C. Hose
is recommended from grill to gas supply.
Whether the grill is built-in to a permanent
structure, the use of a S/S Flex-Line is
recommended from grill to gas supply.
Connect the Swivel nut of the flex-line or
12' Natural Gas Hose to the horizontal
fitting of the regulator as shown and
connect the other end to the gas supply
line from your home. Read and follow the
"Gas Safety Instructions" on page 22.
To Next Page
