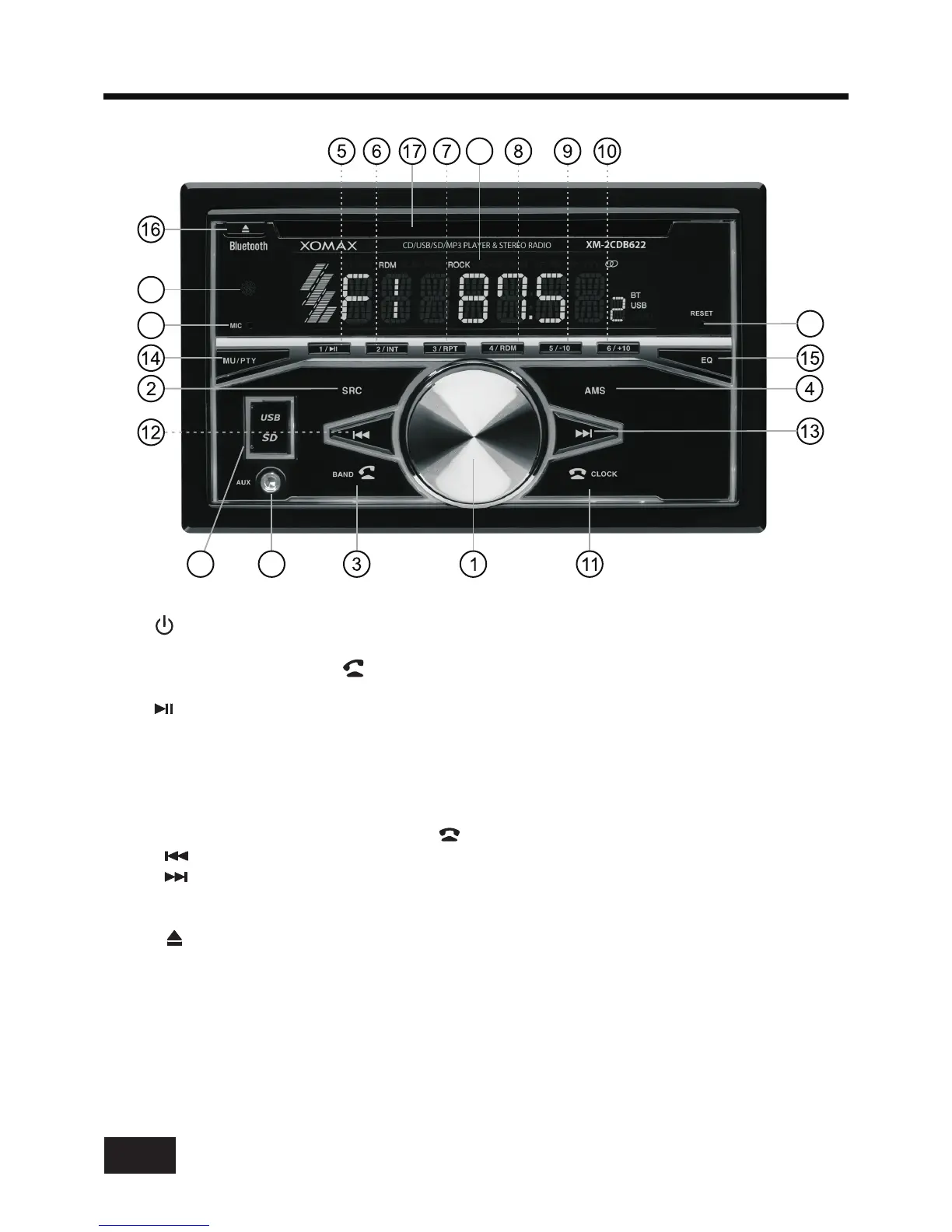

CONTROL PANEL BUTTON LOCATIONS
4
1. (power)/Volume knob and
2. SRC (source) button
3. BAND(band) button, (answer call) button
4. AMS (automatic store / preset station scan, automatic music search) button
5. (pause/play), Preset station1 button
6. INT (intro), Preset station 2 button
7. RPT (repeat), Preset station 3 button
8. RDM (random), Preset station 4 button
9. -10(previous 10 tracks), Preset station 5 button
10. +10(next 10 tracks), Preset station 6 button
11. CLOCK (clock setting) button, (end call) button
12. (tune down, seek down,previous, fast reverse) button
13. (tune up, seek up, next track, fast forward)button
14. MUTE button, PTY (Program Type) button
15. EQ (Equalizer)
16. (eject) button
17. Disc slot
18. IR remote sensor
19. LCD Display
20. USB Port & Micro SD card slot
21. AUX IN (auxiliary input) jack
22. Hands-free Microphone
23. Reset button
SEL (select/menu) button
21
20
23
22
19
18
