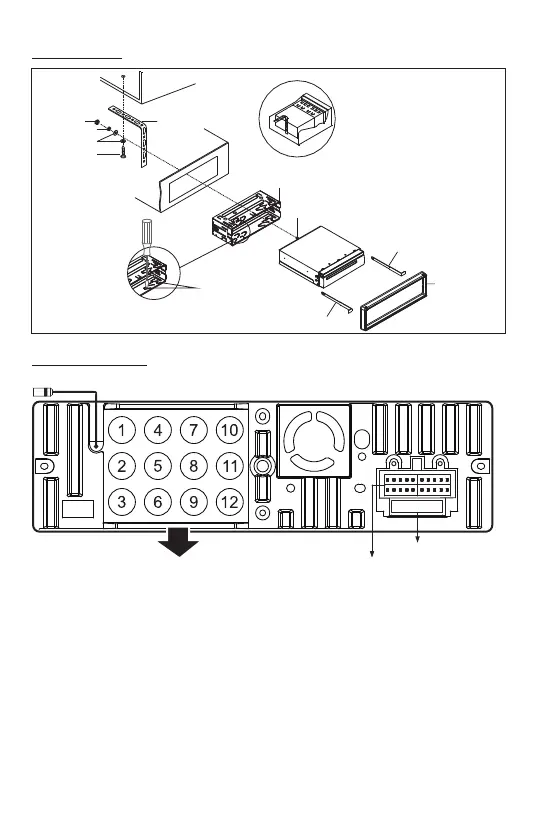

Hex Bolt
Spring Washer
Plain Washer
Tapping Screw
Screwdriver
Tabs
Hex Nut
Dash Board
Key Plate
Key Plate
Plasc Trim Out
Metal Mounng Strap
Console
Slide Bracket Housing
INSTALLATION:
Wiring Connecons:
Gray: Front Right (+)
Gray/Black: Front Right (-)
White: Front Left (+)
White/Black: Front Left (-)
Violet: Rear Right (+)
Violet/Black: Rear Right (-)
Green: Rear Left (+)
Green/Black: Rear Left (-)
Red: ACC 12V (+)
Yellow: BATTERY 12V (+)
Black: GND (-)
Blue: ANT (+)
Orange: BACK (+)
Pink: BRAKE (-)
Orange/Black: ILL (+)
Brown: SWC 1
Brown/white: SWC 2
Black: SWC-GND
Audio/Audio I/O Connections
1. Rear View Video input (Yellow)
2. Subwoofer Output 2 (Green)
3. Subwoofer Output 1 (Green)
4. Video input (Yellow)
5. Left Audio input (White)
6. Right Audio input (Red)
7. Video Output 1 (Yellow)
8. Rear Left RCA Output (White)
9. Rear Right RCA Output (Red)
10. Video Output 2 (Yellow)
11. Front Left RCA Output (White)
12. Front Right RCA Output (Red)
FUSE 10A
ANT
10A
Speaker/Power Connections
