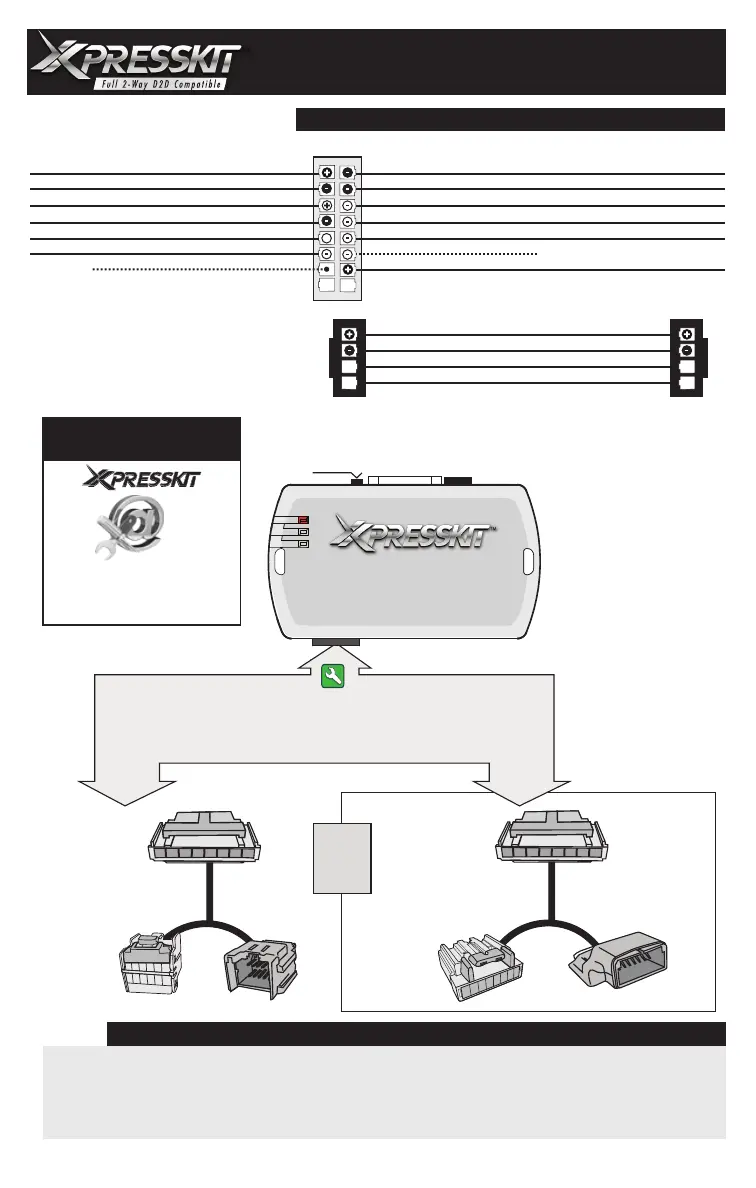

T-HARNESS
HARNAIS EN T
CHTH 1
T-HARNESS
HARNAIS EN T
CHTH 2
Male
Mâle
Female
Femelle
8
1
Male
Mâle
Female
Femelle
OR
OU
CHALL
REMOTE CAR STARTERS AND ALARM INTERFACE
DESCRIPTION
4 PIN CONNECTOR: D2D (BLACK | NOIR)
16 PIN CONNECTOR: MAIN HARNESS | HARNAIS PRINCIPAL (WHITE|BLANC)
Lt.Blue | Bleu Pâle
White | Blanc
Pink | Rose
Blue | Bleu
Orange
Purple | Mauve
Yellow | Jaune
(-) While running
Lock | Verrouillage
Ignition
Tach
~
(+) Start
Unlock | Déverrouillage
Trunk | Valise
Lt. Blue/Black | BleuPâle/Noir
White/Black | Blanc/Noir
Pink/Black | Rose/Noir
Green | Vert
Orange/Black | Org/Noir
Purple/White | Mauve/Blanc
Yellow/Black | Jaune/Noir
n.c.
n.c.
Before proceeding with the installation refer to the vehicle fit guide
to determine which T-harness is required.
Avant de procéder avec l'installation, référez-vous au Guide des Véhicules
pour déterminer lequel des Harnais en T est requis.
2
Programming
Button
Bouton de
Programmation
CONN. 2
16 PIN
CONNECTOR
D2D
4 PIN
CONNECTOR
CHALL
On Clifford, Python and Viper products, the
remote starter Disarm (Light Green/Black)
and Diesel Wait to Start Input (Gray/Black)
wires must be connected together.
Sur les produits Clifford, Python et Viper, les
fils Désarmement (Vert Pâle/Noir) et Entrée
Attente de Démarrage Diesel (Gris/Noir)
provenant du démarreur à distance doivent être
connectés ensemble.
NOTE
TECHNICAL SUPPORT
INFORMATION
web resources:
www.xpresskit.com
www.directechs.com
E-Brake Status Frein Main | Statuts
Hood Status Capot | Statuts
Door Status Porte | Statuts
Brake Status Frein | Statuts
Trunk Status Valise | Statuts
