Xray NT1 - Rear Transmission

15

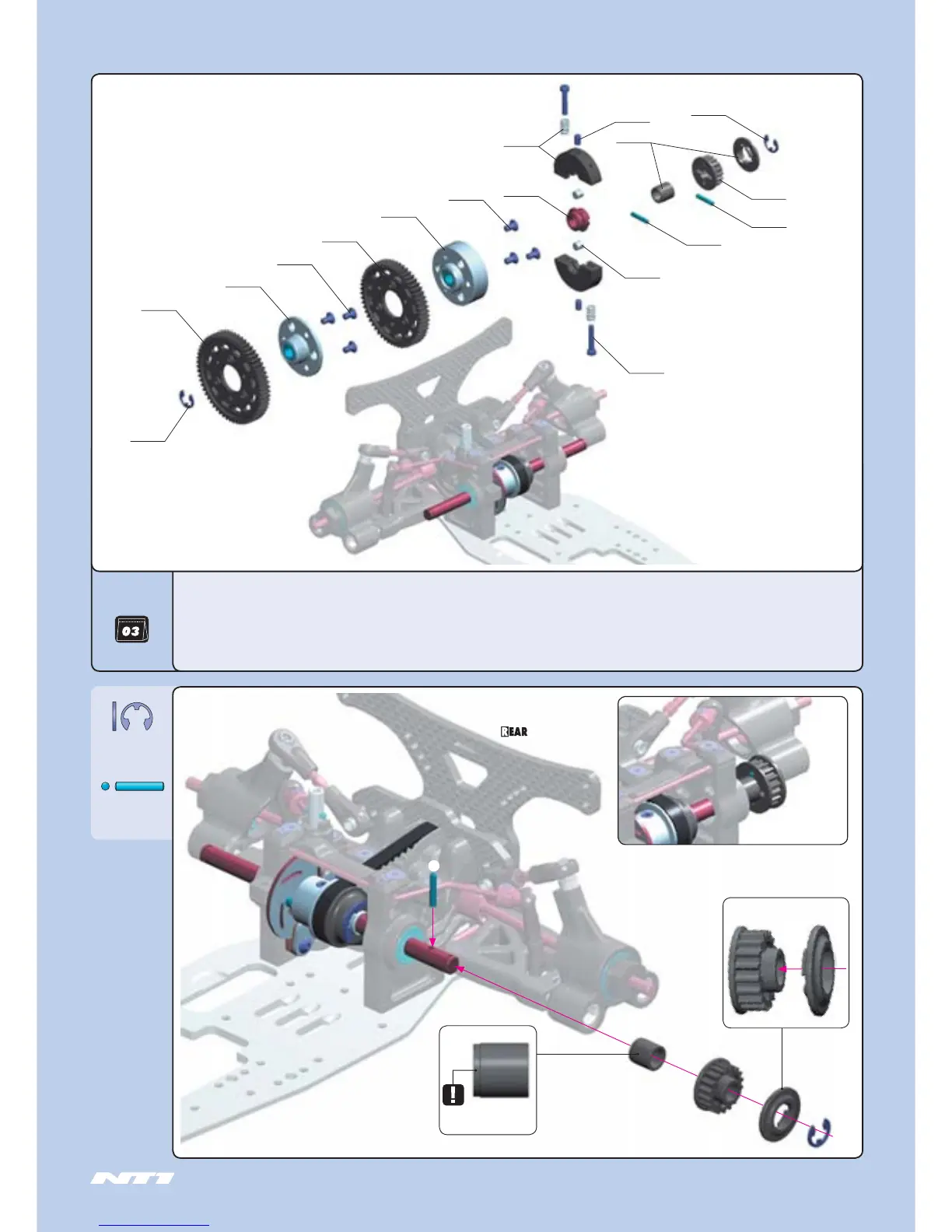

3. REAR TRANSMISSION
33 5520 CARRIER FOR 2-SPEED GEAR (2nd) - ALU 7075 T6 + BALL-BEARING
33 5530 DRIVE FLANGE WITH ONE-WAY BEARING - ALU 7075 T6
33 5540 COMPOSITE 2-SPEED GEAR BOX SHOE SET
33 5554 COMPOSITE 2-SPEED GEAR 54T (2nd)
33 5559 COMPOSITE 2-SPEED GEAR 59T (1st)
33 5570 ADAPTER 2-SPEED - HUDY SPRING STEEL™
33 5800 COMPOSITE BELT PULLEY COVER SET
33 5828 COMPOSITE BELT PULLEY 18T - 2-SPEED-SIDE
90 1305 HEX SCREW SB M3x5 (10)
90 3306 HEX SCREW SFH M3x6 (10)
90 8262 HEX SCREW SOCKET HEAD CAP M2.5x12 (10)
96 5050 E-CLIP 5 (10)
98 1210 PIN 2x10 (10)
98 1212 PIN 2x12 (10)
98 3404 ROLLER PIN 4x4 MM (2)
965050
335559
335530
903306
335554
335520
903306
908262
983404
335570
335540
901305
981212
335828
965050
335800
981210
981212
P 2x12
965050
C 5
BAG
➊
➋
NOTE
ORIENTATION
➌
➍
➎
ASSEMBLED VIEW
➌
STEP DETAIL
STEP DETAIL
➊
