Xray NT1 Instruction Manaul

19

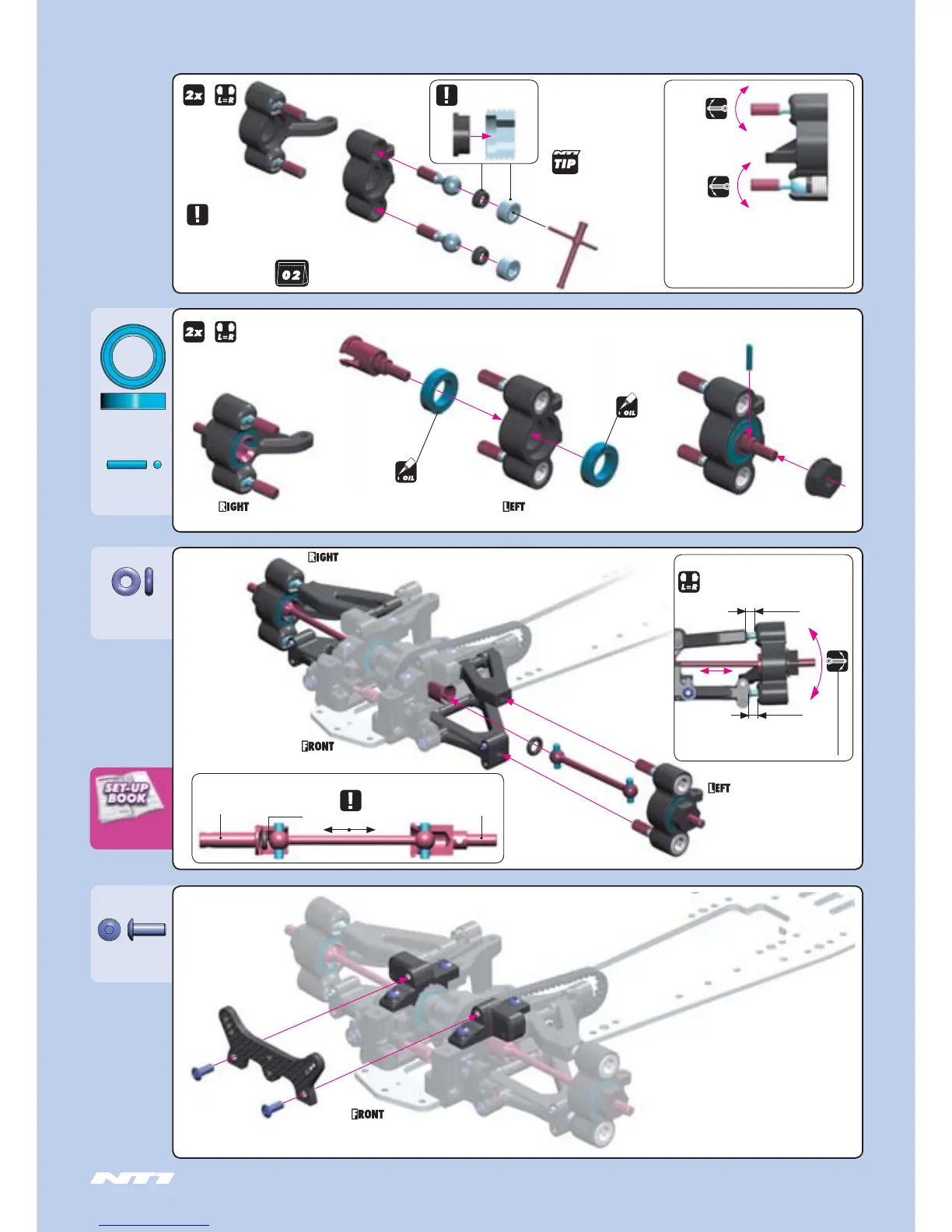

FRONT WHEELBASE &
CAMBER ADJUSTMENT
FRONT SUSPENSION
941016
BB 10x16x4
972030
O 3x2
902308
SH M3x8
981210
BB 10x16x4
DETAIL
➊
➋
➌
➍
➎
Pivot balls must move freely.
During initial assembly, tighten each
aluminum hex nut until the pivot ball
starts to bind, then loosen slightly.
Verify that the pivot balls move freely.
STEERING BLOCK
STEERING BLOCK
STEERING BLOCK
Ensure that the front
suspension moves freely
DETAIL
WHEEL
AXLE
DIFF
ADAPTER
CUTAWAY VIEW
Ensure suffi cient play
4.3mm
3.7mm
STEERING BLOCK
Tighten the aluminum
hex nuts using HUDY
tool #107581
Use the composite ball
cup #337254 from
BAG
NOTE
ORIENTATION
BEARING
OIL
BEARING
OIL
