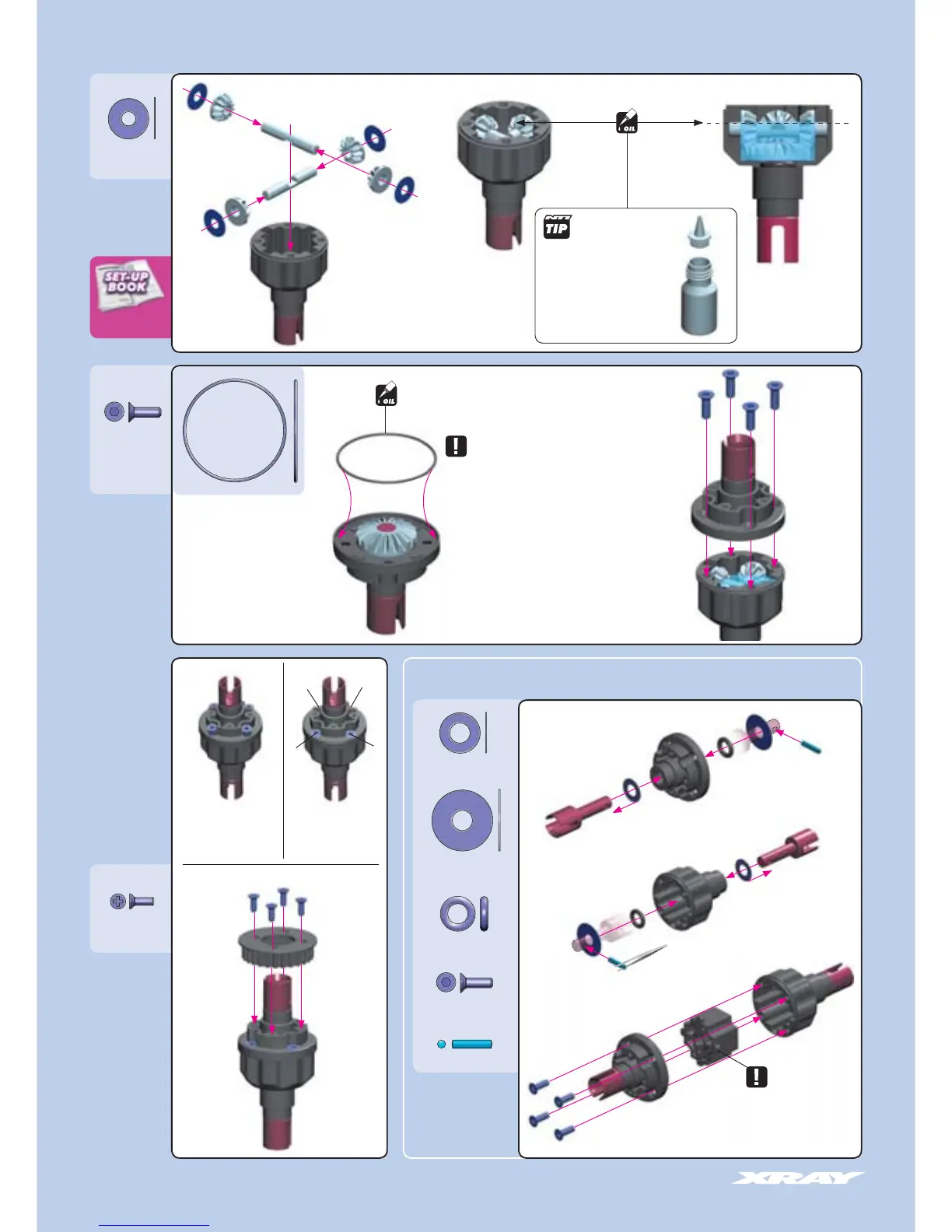

GEAR DIFF ADJUSTMENT
FRONT GEAR DIFFERENTIAL & SOLID AXLE
SOLID AXLE
971240
O 24x0.7
903206
SFH M2x6
The front diff can be
easily changed into
a solid axle. Remove
the internal gears and
replace with the solid
axle locking body.
903258
SFH M2.5x8
981210
P 2x10
972050
O 5x2
964050
S 5x15x0.3
962051
S 5x10x0.2
903258
SFH M2.5x8
964031
S 3.5x10x0.2
Fill differential up to the
top of the diff pins. DO
NOT fi ll the diff to the top
of the housing.
Remove the nozzle of the
bottle to allow easy fi lling
of the diff.
Tighten the screws
equally but do
NOT tighten them
completely
Finish tightening
in this order
NOTE
ORIENTATION
➊
➋
➌
➍➎
➊
➋
➌
➍
➎
➊
➋
➌
➍
After disassembling the differential the large O-ring
may have an increased size and may be more diffi cult to
re-install. We recommend either replacing the O-ring
or carefully inserting the O-ring in the diff cover.
➊
➋
➌
➍
