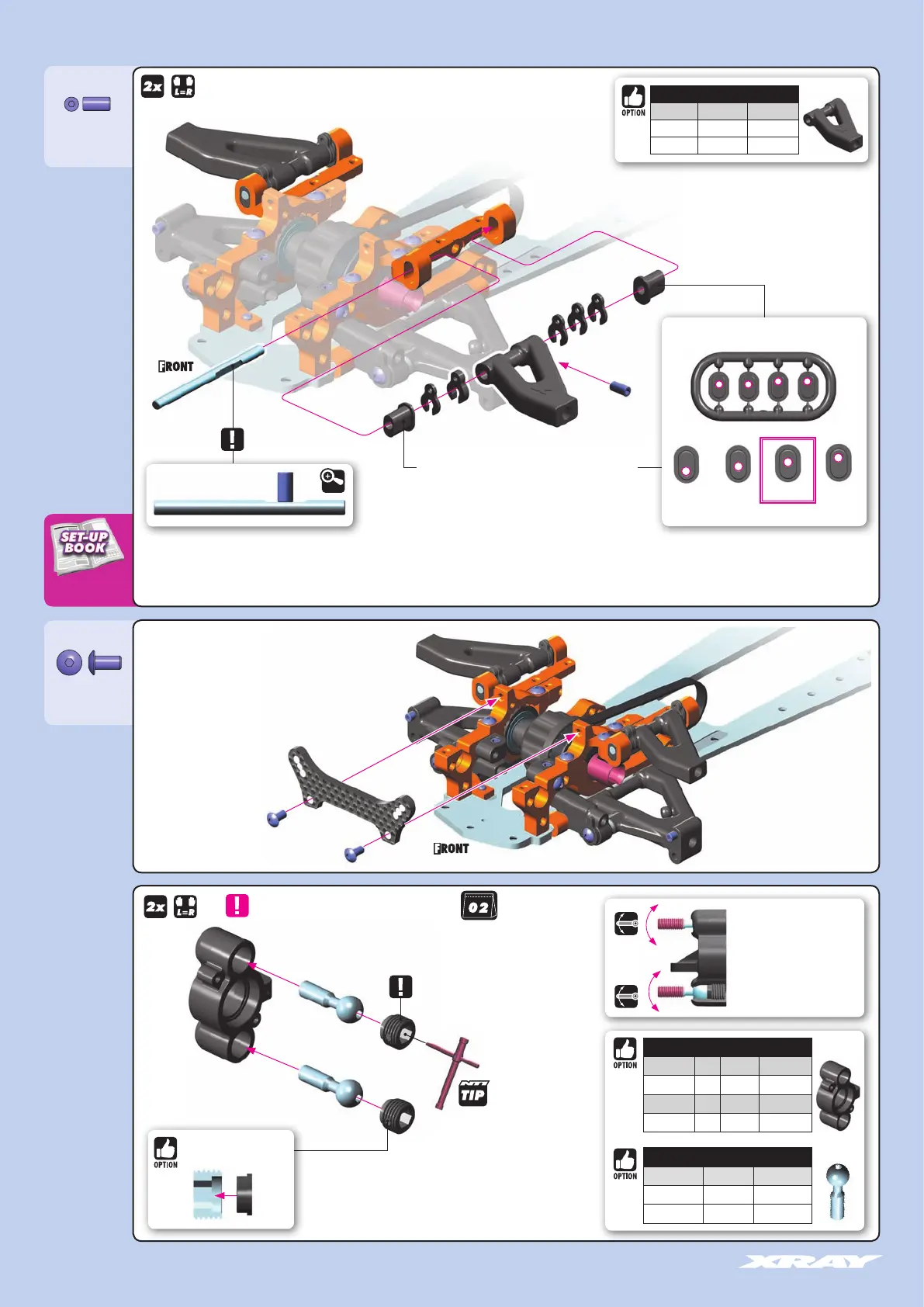

FRONT ROLL CENTER
ADJUSTMENT
4. FRONT SUSPENSION
NOTE ORIENTATION
Tighten composite hex nuts
using HUDY tool #107581
#337252 Alu nut
#337254 Composite cup
902306
SH M3x6
➊
➊
➋
➌
➍
➍
➎
1mm
1+1+1mm
1.6mm
Pivot balls must move freely.
During initial assembly, tighten
each composite hex nut until the
pivot ball starts to bind, then
loosen slightly. Verify that the
pivot balls move freely.
Use the composite ball cup #337254 from
BAG
Use (+0.5mm) suspension holders for initial assembly
901306
SB M3x6
NOTE ORIENTATION
STEP DETAIL
➎
DETAIL
-1.5mm -0.5mm +0.5mm +1.5mm
INITIAL SETTING
FRONT ROLL CENTER INSERT POSITIONS
FRONT UPPER ARMS
#332134 SOFT INCLUDED
#332133 MEDIUM OPTION
#332134 HARD OPTION
PIVOT BALLS
#337256 STEEL INCLUDED
#337251 ALU OPTION
#337255 TITANIUM OPTION
STEERING BLOCK
#332212 0° RIGHT INCLUDED
#332213 1° RIGHT OPTION
#332222 0° LEFT INCLUDED
#332223 1° LEFT OPTION
