16

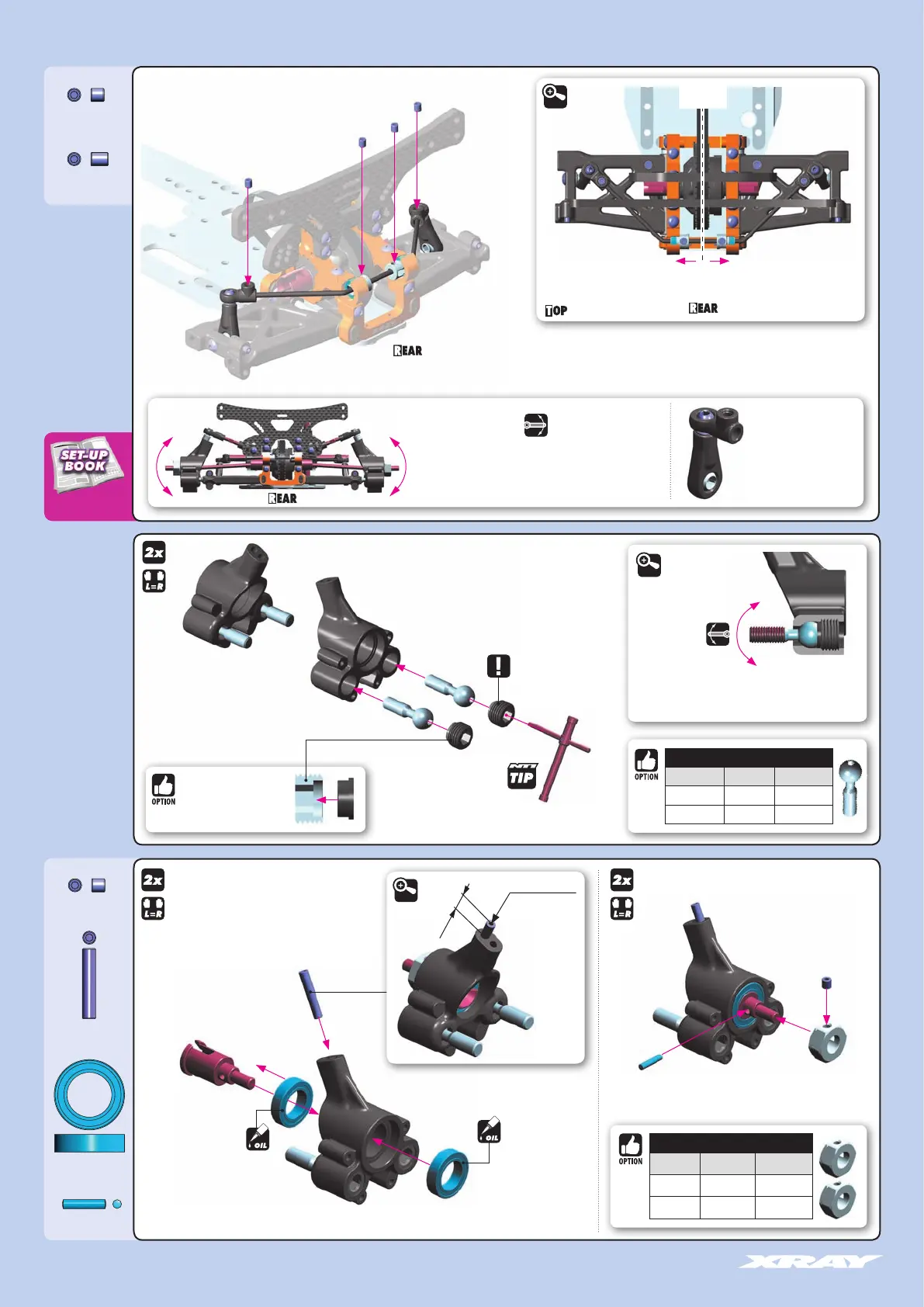

2. REAR SUSPENSION
REAR ANTI-ROLL BAR
ADJUSTMENT
NOTE ORIENTATION
Tighten composite hex nuts
using HUDY tool #107581
➊
➋
➌
➍
BEARING OIL
BEARING OIL
6mm
INITIAL SETTING
901303
SB M3x3
PIVOT BALLS
#337250 STEEL INCLUDED
#337251 ALU OPTION
#337255 TITANIUM OPTION
DETAIL
DETAIL
WHEEL HUBS
#335250 0mm INCLUDED
#335251 -0.75MM OPTION
#335252 +0.75MM OPTION
Set the bar into the center, remove the play in the
bushings, and tighten the set-screws fully.
VIEW
CENTER
DETAIL
During initial assembly, tighten each composite hex nut
until the pivot ball starts to bind, then loosen slightly.
Verify that the pivot balls move freely.
Pivot balls must
move freely.
941016
BB 10x16x4
901316
SB M3x16
981210
P 2x10
#337252 ALU NUT
#337254 COMPOSITE CUP
➊
➋
➌
901303
SB M3x3
901304
SB M3x4
When the bars are set, verify that both sides move at the same
time. If they do, the bars are set up correctly. If not, make sure
that both downstops are the same and that the bar wire is flat.
If the sides still do not
move at the same time,
adjust the length of the
bar holders.
3x4mm
3x4mm
3x3mm
