Xray NT1 User Manual

17

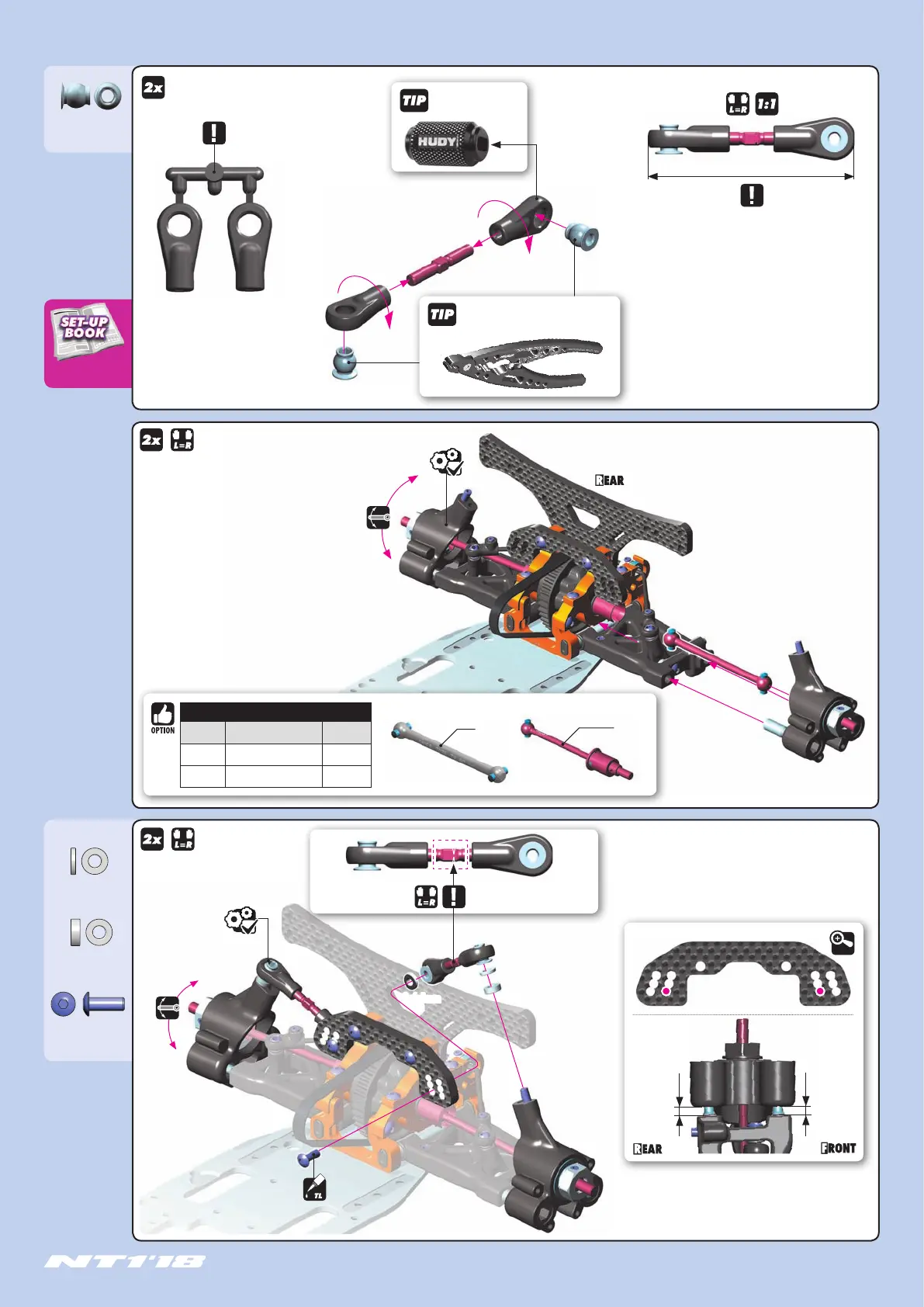

2. REAR SUSPENSION
REAR CAMBER
ADJUSTMENT
DRIVE SHAFT
#335320 HUDY SPRING STEEL™ INCLUDED
#335321 ALU OPTION
#335305 CVD - SET OPTION
303122-O
SHIM 3x6x1
303123-O
SHIM 3x6x2
Ensure that both suspension
assemblies move freely.
Ensure that both suspension
assemblies move freely.
3x6x2mm
3x6x1mm
OUTSIDEINSIDE
3x6x1mm
333240
BALL 5.8
48.8mm
90° angle difference between the ball joints
Use ball joints WITH DOT
INITIAL SETTING
3.2mm
3mm
DETAIL
ALU
CVD-SET
902308
SH M3x8
NOTE ORIENTATION
Install the pivot balls with Professional
Multi Tool (HUDY #183011)
BALL JOINT WRENCH
(HUDY #181110)
