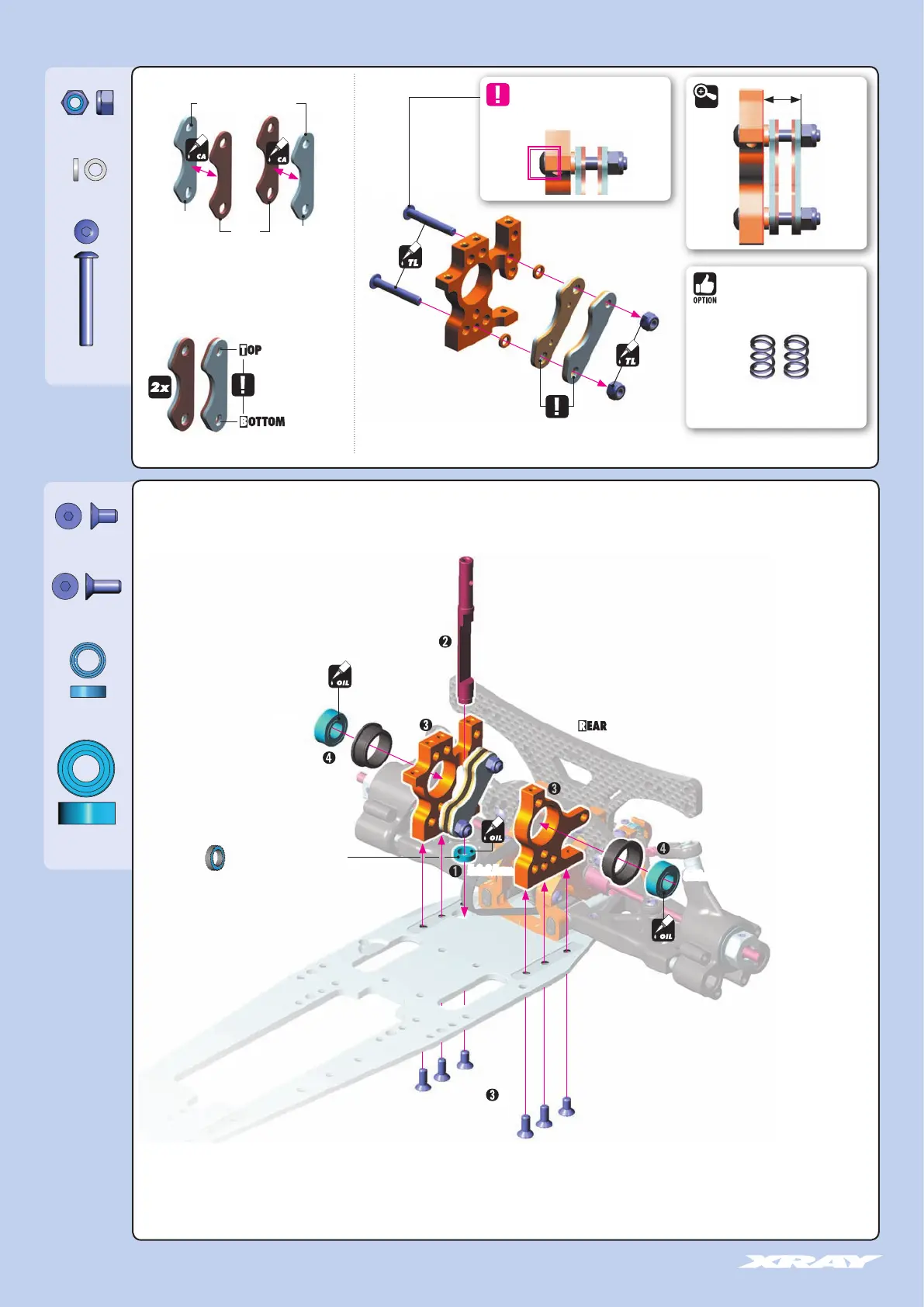

2. REAR SUSPENSION
SLS PADS FACE TOGETHER
3x5x1mm
3x5x1mm
NOTE ORIENTATION
NOTE ORIENTATION
Hole on outer side.
BEARING WITH BLUE COVERS
903308
SFH M3x8
BEARING OIL
BEARING OIL
940508
BB 5x8x2.5
940613
BB 6x13x5
903306
SFH M3x6
3x6mm
3x6mm
3x8mm
3x8mm
296530-O
N M3
303141-O
SHIM 3x5x1
902320
SH M3x20
STEEL
PAD
STEEL
PAD
SLS
PAD
NOTE ORIENTATION
HOLE - OVAL
HOLE - ROUND
6x13x5mm
6x13x5mm
5x8x2.5mm
7.5mm
DETAIL
Roughen steel plates with sandpaper
before gluing SLS pads
We recommend gluing the brake pads
to the steel pads, however there is no
performance difference between glued
& unglued brake pads.
IMPORTANT
Tighten the screws fully so there is no
gap between screw head and bulkhead.
#372180
SPRING 4.0 COILS 3.6x6x0.5mm
C=3.5 - GOLD
The springs can be used only in combination
with #334111 Ventilated Brake Disc.
