Xray NT1 User Manual

19

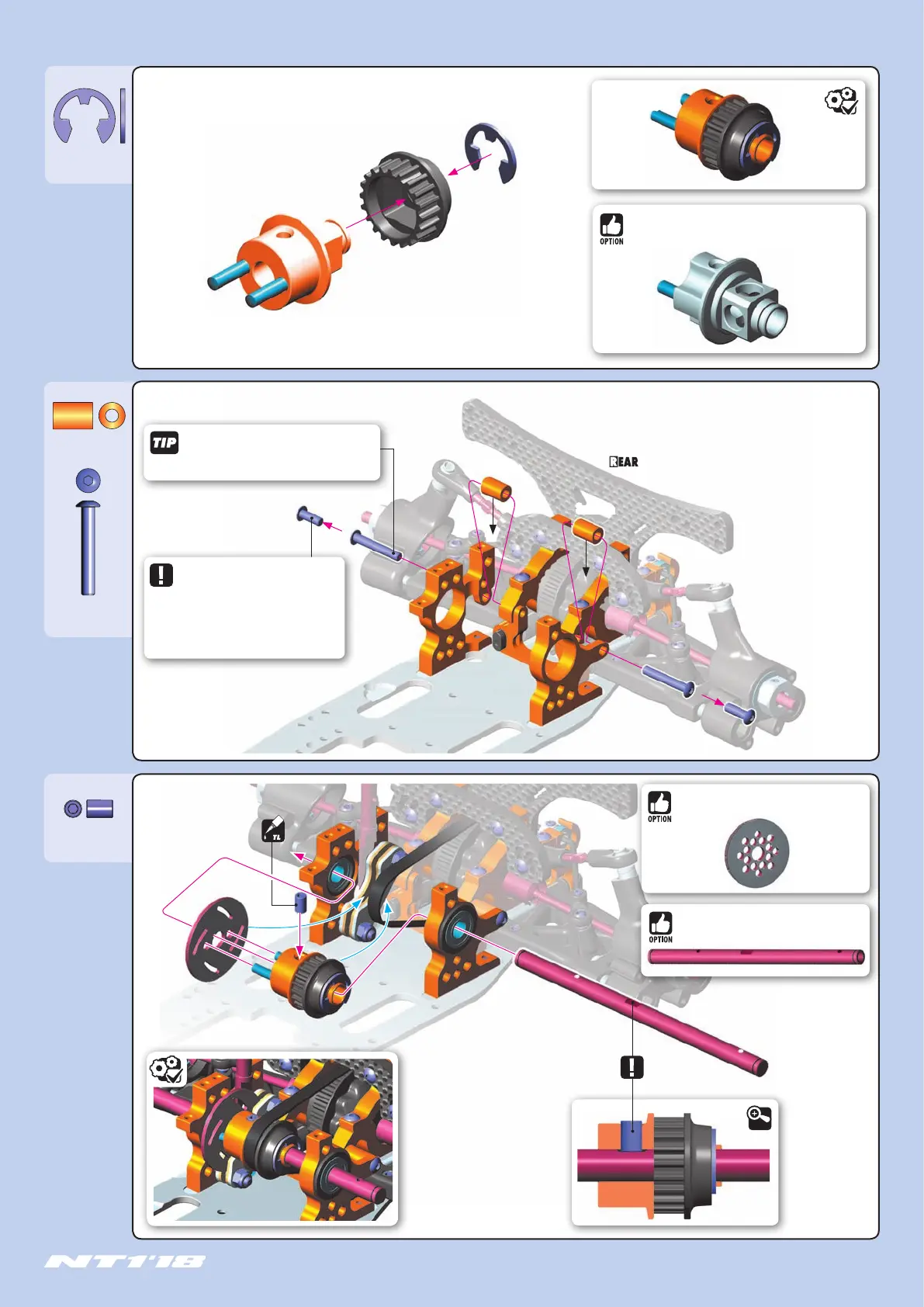

2. REAR SUSPENSION
965070
C 7
➊
➋
901406
SB M4x6
303130-O
SHIM 3x6x9
902320
SH M3x20
➍
STEP DETAIL
DETAIL
➊
➋
➍
➌
Tighten set-screw
onto flat spot
NOTE ORIENTATION
#334141
ALU LIGHTWEIGHT BRAKE DISK ADAPTER - SWISS 7075 T6
#334111
VENTILATED BRAKE DISC PRECISION-GROUND
LIGHTWEIGHT
#335511
2-SPEED SHAFT - LIGHTWEIGHT
3x6x9mm
3x6x9mm
These screws are part of the
REAR SUSPENSION MULTI-FLEX™ TECHNOLOGY
(see page 20)
➊ Remove short screws #902308 connecting
bulkheads to RF holder (page 12).
➋ Insert bushings between bulkheads as shown.
➌ Install & tighten longer screws #902320.
When installing bushings, do the following:
