Xray NT1 User Manual

25

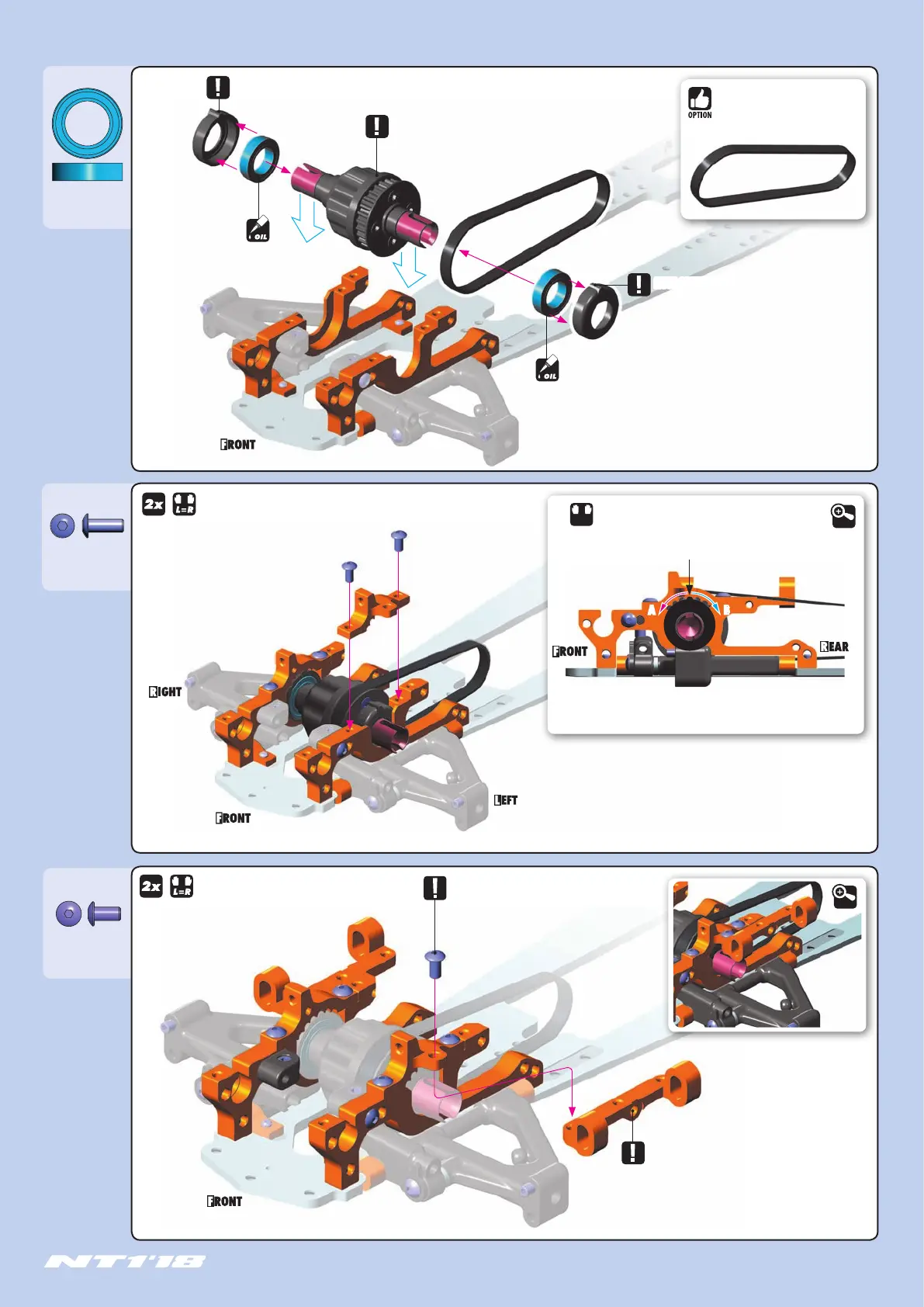

4. FRONT SUSPENSION
902308
SH M3x8
TO LOOSEN FRONT BELT: Rotate both front nylon hubs in arrow direction A
FRONT BELT TENSION ADJUSTMENT
L=R
BA
TO TIGHTEN FRONT BELT: Rotate both front nylon hubs in arrow direction B
INITIAL POSITION
NOTE ORIENTATION
941016
BB 10x16x4
➊
➊
➋
➋
➌
Both bushings must be
in same position
#335431
HIGH-PERFORMANCE KEVLAR®
DRIVE BELT FRONT 5.0x186mm - V2
Both bushings must be in same position
NOTE ORIENTATION
BEARING OIL
BEARING OIL
NOTE ORIENTATION
NOTE ORIENTATION
DETAIL
Do not tighten fully.
This screw will be tightened after
assembling the radio plate (see page 37).
902306
SH M3x6
DETAIL
