GEAR DIFF. CASE
#324911 HARD INCLUDED
#324911-G GRAPHITE OPTION
GEAR DIFF. PULLEY
#324954 HARD INCLUDED
#324954-G GRAPHITE OPTION
6

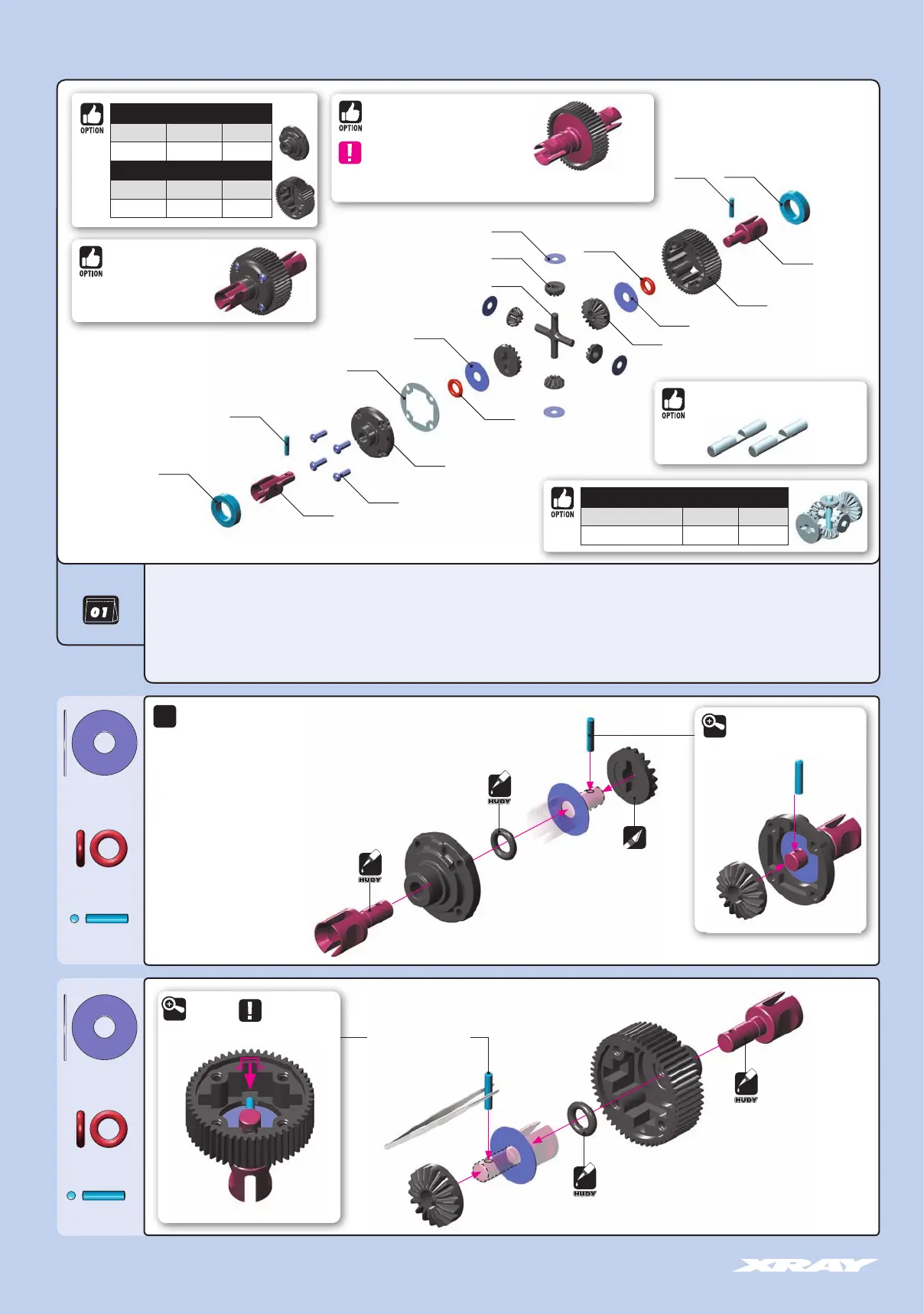

1. GEAR DIFFERENTIAL
2x
STEP
Use tweezer to insert pin
➊
➊
➋
➌
➍
➍
➎
➍➎
304932 GRAPHITE GEAR DIFF BEVEL & SATELLITE GEARS (2+4)
304980 COMPOSITE GEAR DIFF CROSS PIN
324990 DIFF GASKET (4)
324902 GEAR DIFFERENTIAL - LCG - SET
324911 COMPOSITE GEAR DIFFERENTIAL COVER - LCG
324954 COMPOSITE GEAR DIFFERENTIAL CASE - LCG - 53T
324962 GEAR DIFF OUTDRIVE ADAPTER - LCG - HUDY SPRING STEEL™ (2)
902258 HEX SCREW SH M2.5x8 (10)
941014 BALL-BEARING 10x15x4 RUBBER SEALED - GREASE (2)
964031 WASHER S 3.5x10x0.2 (10)
964050 WASHER S 5x15x0.3 (10)
971050 SILICONE O-RING 5x1.5 (10)
981210 PIN 2x10 (10)
BAG
324962
324954
964050
971050
324911
902258
324962
304932
941014
981210
971050
964031
964050
324990
981210
941014
304932
304980
971050
O 5x1.5
971050
O 5x1.5
964050
S 5x15x0.3
964050
S 5x15x0.3
981210
P 2x10
981210
P 2x10
NOTE ORIENTATION
OIL
OIL
DETAIL
DETAIL
➎
➋
➌
➍
➎
BEVEL & SATELITTE GEARS + PINS
#304932 + #304980 COMPOSITE INCLUDED
#335030 + #335080 STEEL OPTION
OIL
OIL
#335081
ALU DIFFERENTIAL PIN - HARDCOATED (2)
#325100
XRAY ACTIVE DIFFERENTIAL
- SET
#325003
BALL ADJUSTABLE DIFFERENTIAL -
LCG - SET - HUDY SPRING STEEL™
When using ball differential you have to use
#325318 REAR DRIVE SHAFT 95MM WITH 2.5MM PIN- HUDY SPRING STEEL™
