Xray T3 User Manual

16
901302
SB M3x2.5
980210
P 2x10

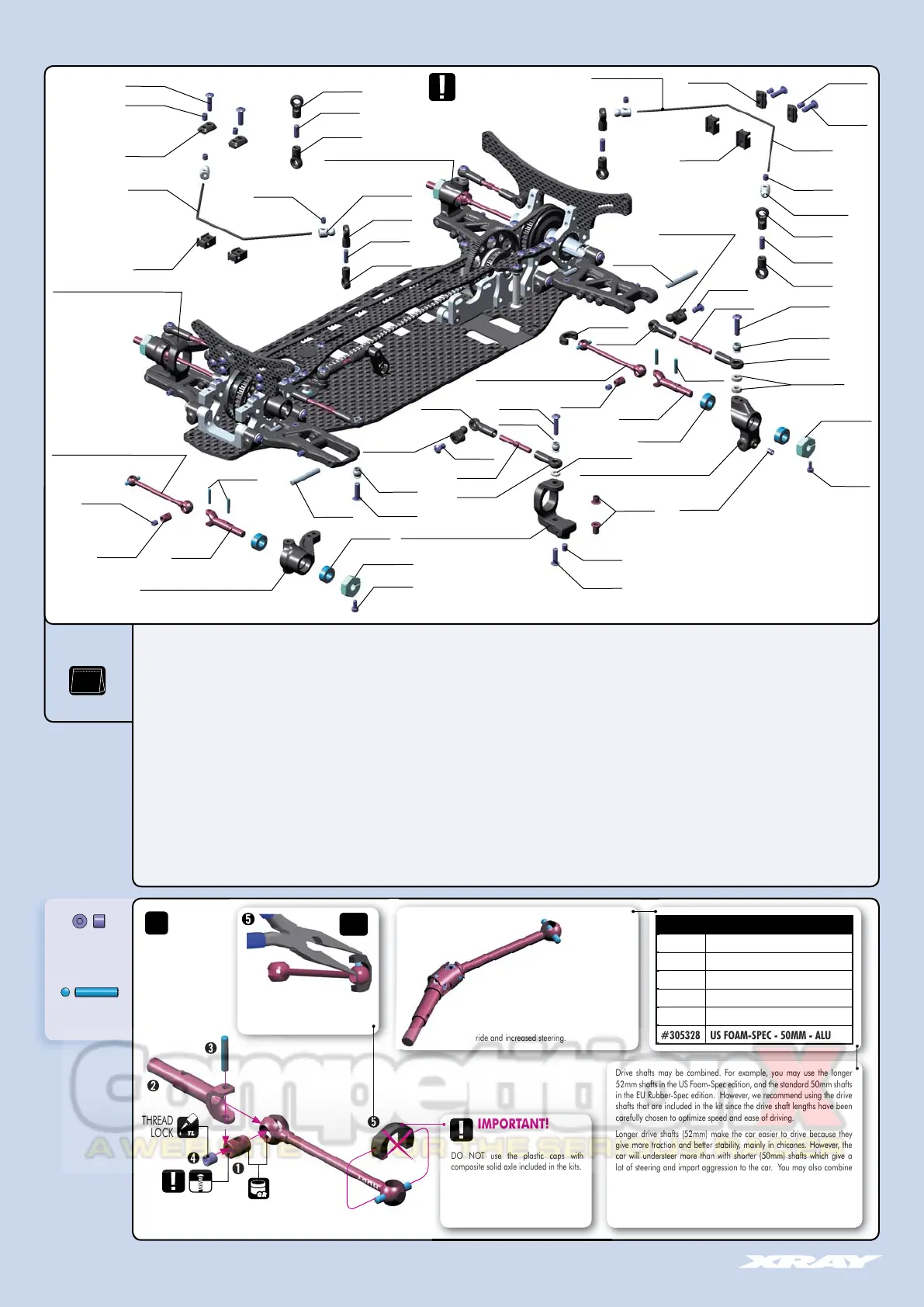

DRIVE SHAFTS
#305323 US FOAM-SPEC - 50MM - STEEL
#305324
EU RUBBER-SPEC - 52MM - STEEL
#305325 US FOAM-SPEC - 50MM - ECS
#305326 EU RUBBER-SPEC - 52MM - ALU
#305327 EU RUBBER-SPEC - 52MM - ECS
#305328 US FOAM-SPEC - 50MM - ALU
05
4x
902310
305324 (EU RUBBER-SPEC)
305323 (US FOAM-SPEC)
902205
901304
303411
901303
303431-K
302484
303411
902306
303454
303454
901308
901308
303454
303454
305341
940510
980210
980210
902310
307455
307221
901302
305231
305231
302291
901304
902310
302663
303212
303033 (EU)
303032-O (US)
902205
305350-K
302663
307455
902314
303212
307321
302664
302664
303454
901308
303454
303431-K
901303
303482
303411
902310
901304
303411
902306
REAR ANTI-ROLL BAR INCLUDED
ONLY IN EU RUBBER-SPEC KITS
901304
940510
902314
307455
305341
303123-K
THREAD
LOCK
GRAPHITE GREASE
(HUDY #106210)
TL
TIP
For easy and comfortable
installation of the #305241
plastic caps use pliers as shown.
DO NOT
OVERTIGHTEN
Drive shafts may be combined. For example, you may use the longer
52mm shafts in the US Foam-Spec edition, and the standard 50mm shafts
in the EU Rubber-Spec edition. However, we recommend using the drive
shafts that are included in the kit since the drive shaft lengths have been
carefully chosen to optimize speed and ease of driving.
Longer drive shafts (52mm) make the car easier to drive because they
give more traction and better stability, mainly in chicanes. However, the
car will understeer more than with shorter (50mm) shafts which give a
lot of steering and impart aggression to the car. You may also combine
different lengths of shafts in front and rear (for example, using long shafts
in the rear and short shafts in the front) depending on track conditions.
Both left & right shafts should ALWAYS be the same length at one end of
the car (front or rear).
305241
305350-K
Di h ft
DO NOT use the plastic caps with
composite solid axle included in the kits.
The new #305241 3.5mm plastic caps
are for use ONLY with ALU ball diffs or
the XRAY Multi-Diff™.
303032-O (US)
303033 (EU)
305326 (EU RUBBER-SPEC)
305328 (US FOAM-SPEC)
303122-K
ECS shafts are available optionally in both
50mm and 52mm lengths. The ECS drive
shafts were developed to decrease front wheel
vibration when racing with a solid front axle,
thus providing a much smoother and quieter
ride and increased steering.
OPTIONAL ECS DRIVE SHAFTS
302252 (EU RUBBER-SPEC)
302253 (US FOAM-SPEC)
303352 (EU RUBBER-SPEC)
303363 (US FOAM-SPEC)
303352 (EU RUBBER-SPEC)
303353 (US FOAM-SPEC)
302364 (EU RUBBER-SPEC)
302374 (US FOAM-SPEC)
302363 (EU RUBBER-SPEC)
302373 (US FOAM-SPEC)
IMPORTANT!
BAG
5. FRONT & REAR TRANSMISSION
30 2252 COMPOSITE STEERING BLOCK - MEDIUM - RUBBER-SPEC - V2
30 2253 COMPOSITE STEERING BLOCK - HARD - FOAM-SPEC
30 2291 STEEL STEERING BUSHING (2+2)
30 2363 COMPOSITE C-HUB RIGHT - 4° DEG. - MEDIUM - RUBBER-SPEC
30 2364 COMPOSITE C-HUB LEFT - 4° DEG. - MEDIUM - RUBBER-SPEC
30 2373 COMPOSITE C-HUB RIGHT - 4° DEG. - HARD - FOAM-SPEC
30 2374 COMPOSITE C-HUB LEFT - 4° DEG. - HARD - FOAM-SPEC
30 2484 ANTI-ROLL BAR FRONT 1.4 MM
30 2663 BALL JOINT 5 MM - OPEN - V2 (8)
30 2664 BALL JOINT 5 MM UNIDIRECTIONAL - OPEN (4)
30 3032-O ALU QUICK ROLL-CENTER HOLDER™ 4.9MM - ORANGE (2)
30 3033 ALU QUICK ROLL-CENTER HOLDER 4.9MM - L1 + L2
30 3122-K ALU SHIM 3x6x1.0MM - BLACK (10)
30 3123-K ALU SHIM 3x6x2.0MM - BLACK (10)
30 3212 ALU ADJ. TURNBUCKLE M3 L/R 26 MM - SWISS 7075 T6 (2)
30 3352 UPRIGHT 0° OUTBOARD TOE-IN - MEDIUM - RUBBER-SPEC
30 3353 UPRIGHT 1° OUTBOARD TOE-IN - RIGHT - HARD - FOAM-SPEC
30 3363 UPRIGHT 1° OUTBOARD TOE-IN - LEFT - HARD - FOAM-SPEC
30 3411 COMPOSITE ANTI-ROLL BAR HOLDERS - V2
30 3431-K ALU 5 MM BALL END - BLACK (2)
30 3454 BALL JOINT 5 MM - OPEN (4)
30 3482 ANTI-ROLL BAR REAR 1.2 MM
30 5231 DRIVE SHAFT COUPLING - HUDY SPRING STEEL
30 5241 DRIVE SHAFT REPLACEMENT PLASTIC CAP 3.5 MM (4)
30 5323 DRIVE SHAFT 50MM - HUDY SPRING STEEL
30 5324 DRIVE SHAFT 52MM - HUDY SPRING STEEL
30 5325 EQUALIZED CORNERING SPEED (ECS) DRIVE SHAFT 50MM (OPTION)
30 5326 ALU DRIVE SHAFT SWISS 7075 T6 - HARD COATED - 52MM
30 5327 EQUALIZED CORNERING SPEED (ECS) DRIVE SHAFT 52MM (OPTION)
30 5328 ALU DRIVE SHAFT SWISS 7075 T6 - HARD COATED - 50MM
30 5341 DRIVE AXLE - LIGHTWEIGHT - HUDY SPRING STEEL
30 5350-K ALU WHEEL HUB - BLACK (2)
30 7221 FRONT ARM PIVOT PIN (2)
30 7321 REAR ARM PIVOT PIN (2)
30 7455 PIVOT BALL 5.0 MM DOUBLE BEVEL SHOULDERS (10)
90 1302 HEX SCREW SB M3x2.5 (10)
90 1303 HEX SCREW SB M3x3 (10)
90 1304 HEX SCREW SB M3x4 (10)
90 1308 HEX SCREW SB M3x8 (10)
90 2205 HEX SCREW SH M2x5 (10)
90 2306 HEX SCREW SH M3x6 (10)
90 2310 HEX SCREW SH M3x10 (10)
90 2314 HEX SCREW SH M3x14 (10)
94 0510 HIGH-SPEED BALL-BEARING 5x10x4 RUBBER SEALED (2)
98 0210 PIN 2x10 (10)
