ACKERMANN ADJUSTMENT
STEERING THROW SYMMETRY
CHASSIS FLEX SETTING
TOP DECK FLEX SETTING
902306
SH M3x6
903306
SFH M3x6
930407
BB 4x7x2.5
Install this stand when using the EU Edition
car on carpet; the stand will decrease
front traction so that the front tires do not
overheat too quickly, thus preventing the
car from stopping quickly in corners.
The stand is not necessary on asphalt
tracks because the car will understeer
more.
OIL
OIL
BEARING OIL
(HUDY #106230)
BEARING OIL
(HUDY #106230)
For super-high traction tracks where tires have a lot of natural
traction, we recommend using the optional front brace which will
make the car easier to drive with smoother steering.
The brace is also helpful for foam tires because it makes the car turn
more smoothly and prevents the car from being nervous (which is
typical on high-grip carpet tracks).
1
2
There are two positions for the alu brace: forward (1)
or rearward (2).
As well, the orientation of the brace depends on the position of the
front (long) belt. Always orient the brace so the belt passes beneath
the brace without rubbing.
#302054-K
INITIAL POSITION
BASIC SET-UP FOR US FOAM-SPEC
INITIAL POSITION
EU RUBBER-SPEC
US FOAM-SPEC
BASIC SET-UP FOR EU RUBBER-SPEC

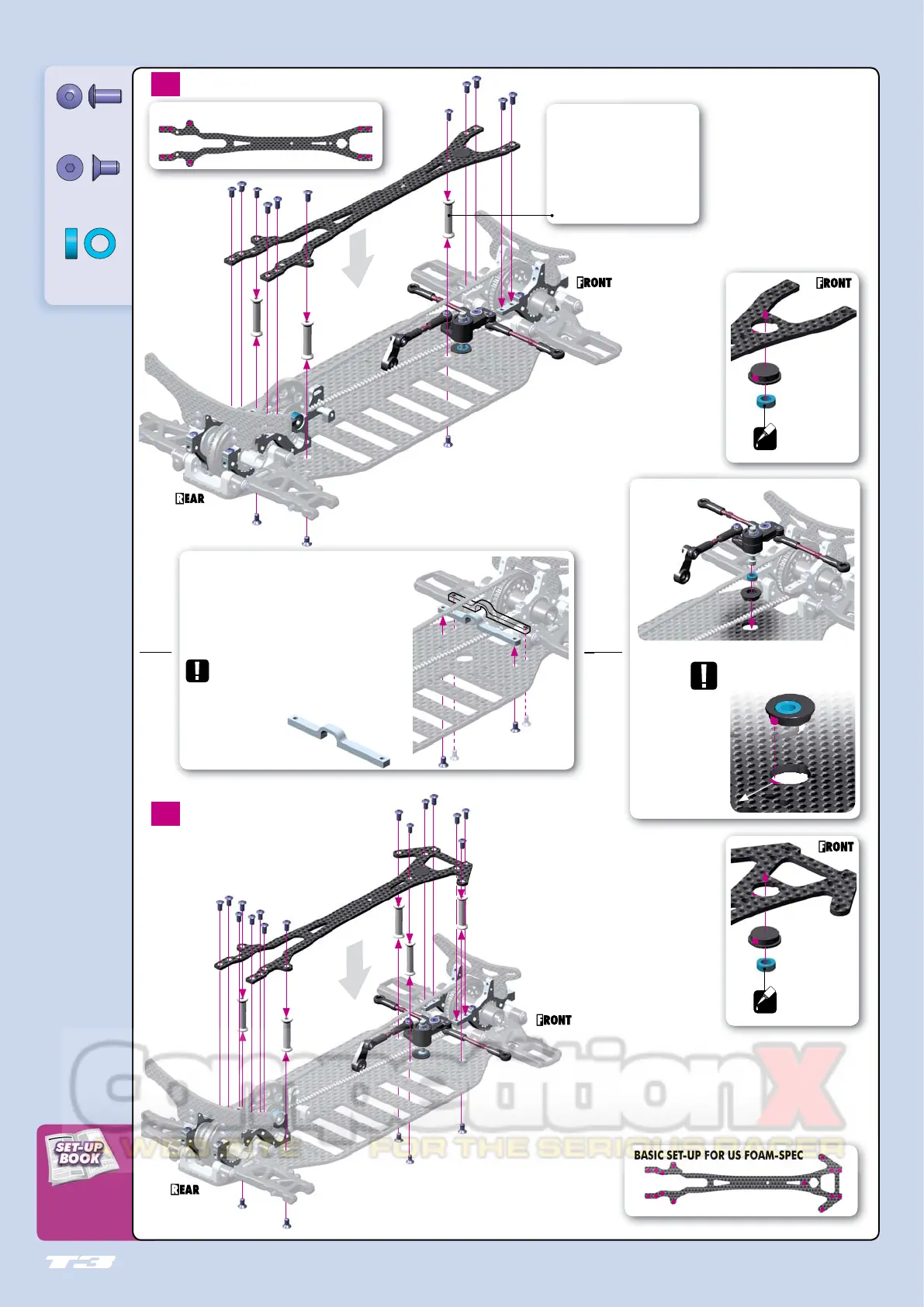

4. STEERING
TAB TO REAR
TAB TO REAR
TAB TO REAR
DETAIL
NOTE ORIENTATION
TAB TO REAR FOR
EU RUBBER-SPEC
& US FOAM-SPEC
ALU CHASSIS BRACE
