Xray T3 User Manual

9
REAR DOWNSTOP
ADJUSTMENT
FRONT DOWNSTOP
ADJUSTMENT
903306
SFH M3x6
901308
SB M3x8
901408
SB M4x8
901308
SB M3x8
901408
SB M4x8
REAR ARMS
#303163 EU RUBBER-SPEC - HARD (H)
#303164
US FOAM-SPEC - EXTRA-HARD (XH)
FRONT ARMS
#302163 EU RUBBER-SPEC - HARD (H)
#302164
US FOAM-SPEC - EXTRA-HARD (XH)
OPTIONAL REAR ARMS - 2-HOLE
#303165 EU RUBBER-SPEC - HARD (H)
#303166
US FOAM-SPEC - EXTRA-HARD (XH)
OPTIONAL FRONT ARMS - 2-HOLE
#302165 EU RUBBER-SPEC - HARD (H)
#302166
US FOAM-SPEC - EXTRA-HARD (XH)
REAR LEFT ARM REAR RIGHT ARM
RIGHT REAR ARM
FRONT LEFT ARMFRONT RIGHT ARM
LEFT REAR ARM
REAR ARMS
DETAIL

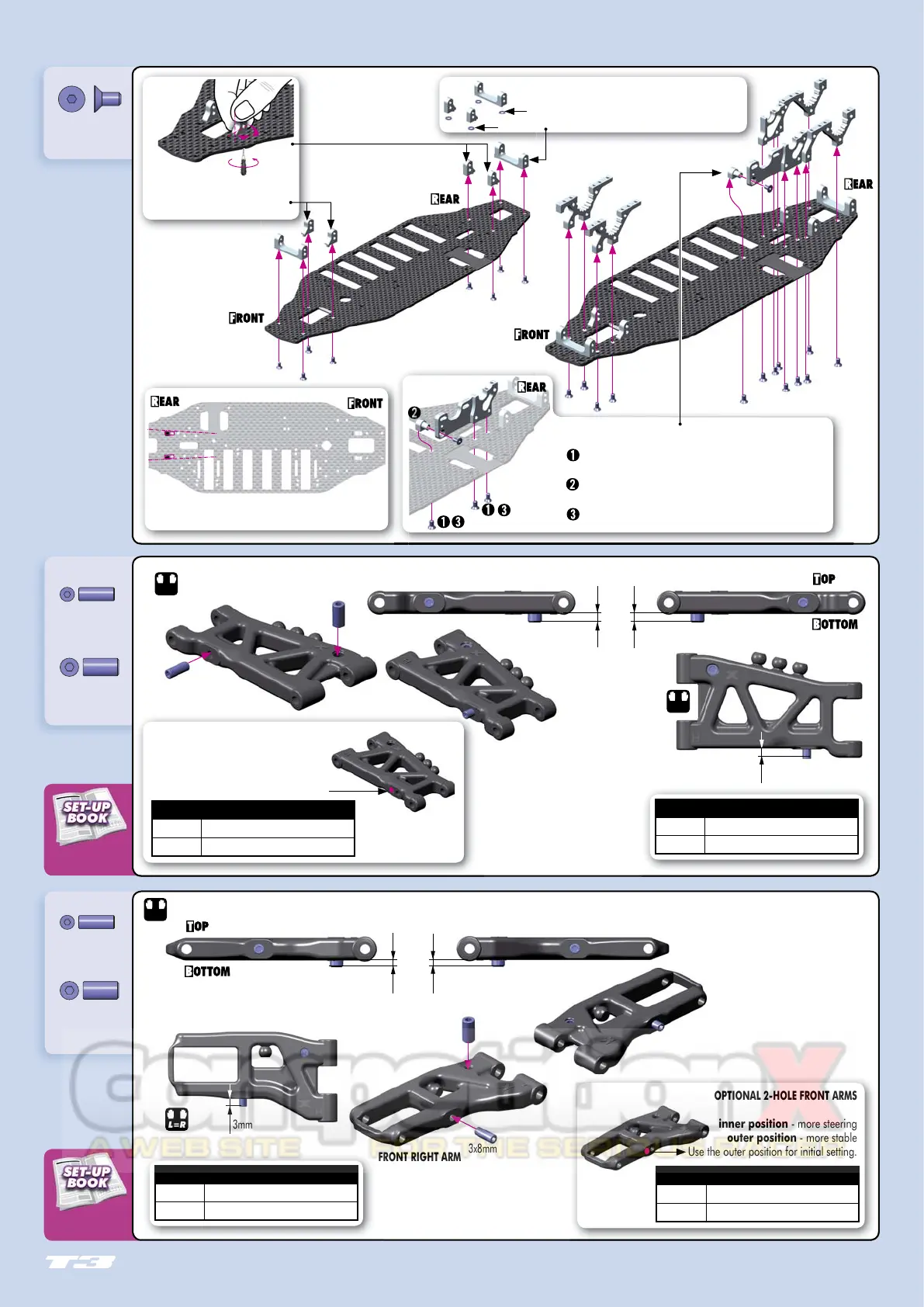

2. FRONT & REAR SUSPENSION
3mm
2.0mm
3mm
4x8mm
3x8mm
L=R
FRONT RIGHT ARM
FRONT LEFT ARM
L=R
COMPLETED ASSEMBLY
3x8mm
4x8mm
COMPLETED ASSEMBLY
FRONT ARMS
L=R
EU RUBBER-SPEC
0.8mm
US FOAM-SPEC
2.2mm
EU RUBBER-SPEC
0.5mm
US FOAM-SPEC
L=R
Mount the screws on the motor bulkhead but do NOT
tighten them fully.
Mount the motor bulkhead holder to the motor
bulkhead using M3x6 screw. Tighten fully.
Tighten fully all screws from the bottom of the chassis.
OPTIONAL 2-HOLE REAR ARMS
inner position - more rear traction
outer position - more stable
Use the inner position for initial setting.
OPTIONAL 2-HOLE FRONT ARMS
inner position - more steering
outer position - more stable
Use the outer position for initial setting.
The rear aluminum holders have integrated rear toe-in
(approximately 1° rear toe-in).
Follow these steps when assembling the motor mount bulkhead:
When tightening the screws, push
the alu holders gently against
screw tightening direction.
OPTIONAL FINE ROLL-CENTER ADJUSTMENT
Optional shims may be used for raising roll center.
Use 3x7 shims with thicknesses between 0.1–0.5mm
