8

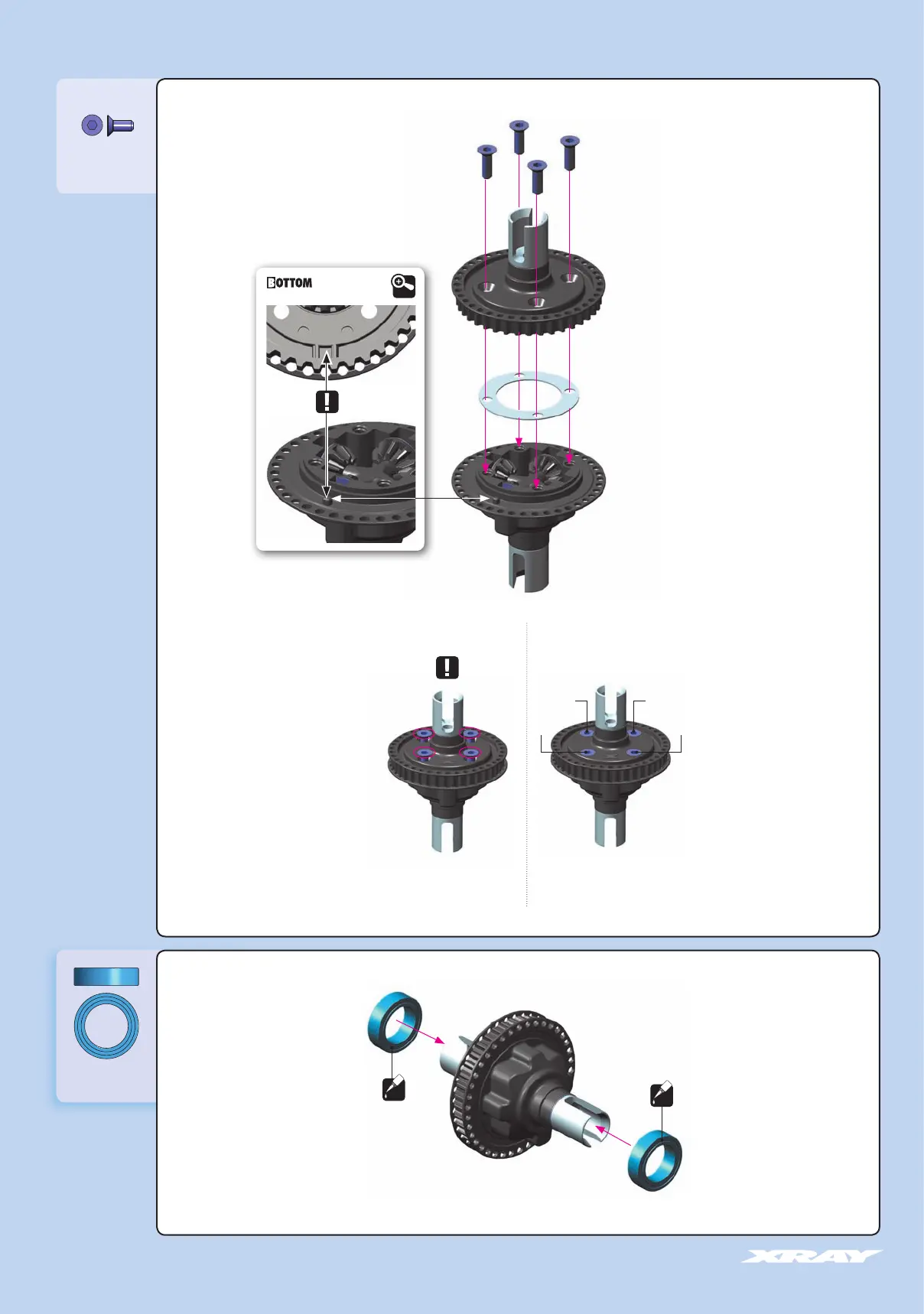

1. GEAR DIFFERENTIAL
941015
BB 10x15x4
OIL
903256
SFH M2.5x6
Tighten the screws equally but do
NOT tighten them completely.
Finish tightening in this order.
➊
➋
➌
➍
NOTE
ORIENTATION
DETAIL
BEARING OIL
(HUDY #106230)
BEARING OIL
(HUDY #106230)
OIL
