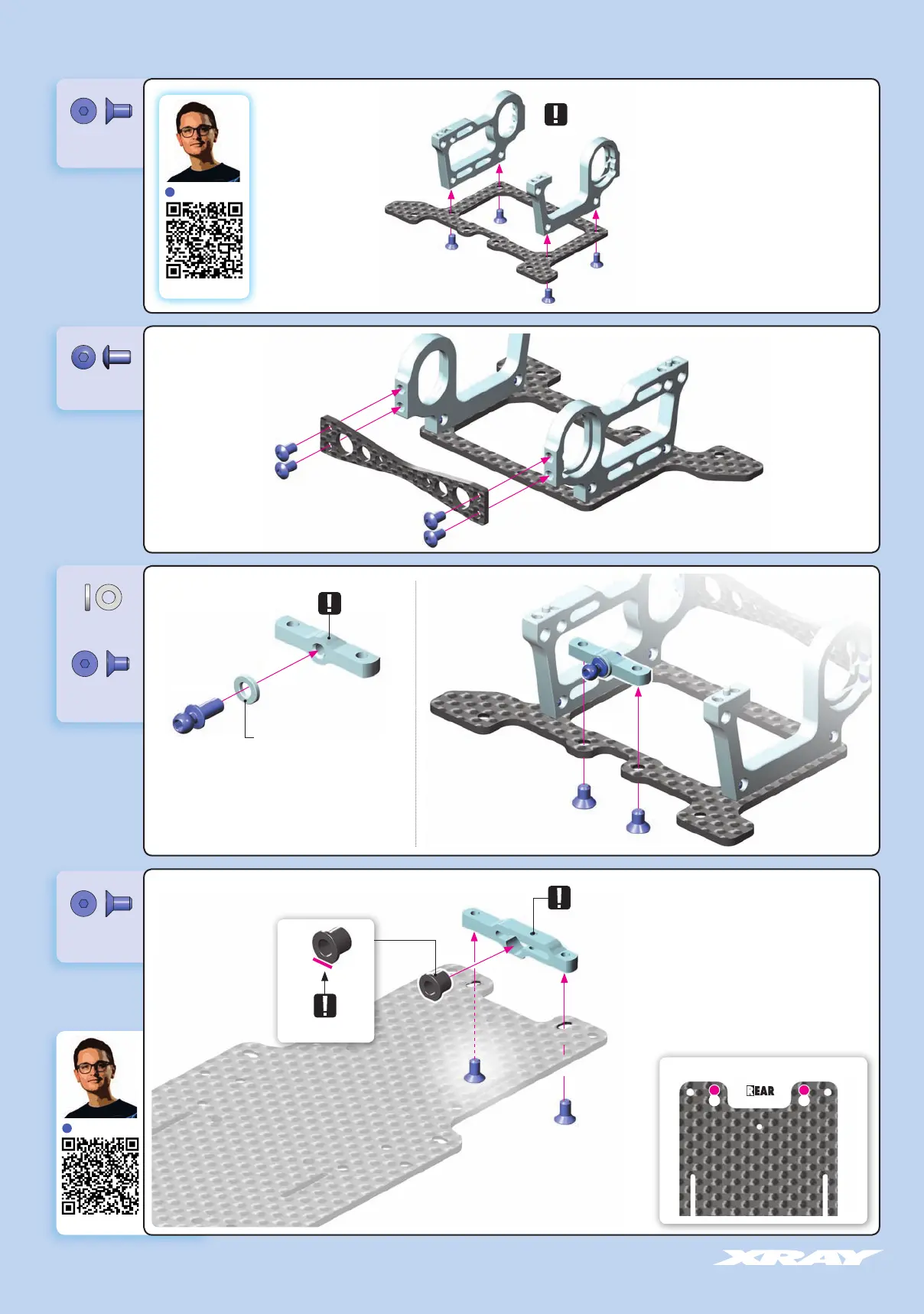

Xray X10 - Page 12

12
VIDEO TECH TIP
▶
CENTER POD PIVOT BUILD
903306
SFH M3x6
903306
SFH M3x6
(INITIAL SETTING)
VIDEO TECH TIP
▶
REAR POD BUILD
NOTE ORIENTATION
2. REAR SUSPENSION
903305
SFH M3x5
902305
SH M3x5
NOTE
ORIENTATION
The amount of shims has a direct
effect on the pivot mounting position.
Please see: PAGE 13
INITIAL SETTING - rear pivot position
1mm shim
NOTE ORIENTATION
1mm
303122
SHIM 3x6x1
8mm THREAD
NOTE ORIENTATION
