Xray X10 - Final Assembly

22
2S LiPo Battery Pack
(NOT INCLUDED)
Wheels
(NOT INCLUDED)
371345
902310
902310
902306
902306
960030
960030
373075
376322
903306
903306
376322
371325
371325
981212
371325
371325
371349
903306
372661
372661
375390
981212
306200-K
309402
Pinion 305968~306000
(NOT INCLUDED)
372503
902308
372650
306219
309402
903305
376130
371225
371345
371040
903312
951851
352610
352610
372661
960030
960030
371040
903308
951851
960030
372290
Speed Controller
(NOT INCLUDED)
Receiver
(NOT INCLUDED)
Personal Transponder
(NOT INCLUDED)
Servo
(NOT INCLUDED)
Screw from servo
(NOT INCLUDED)
902308
Motor
(NOT INCLUDED)
BAG

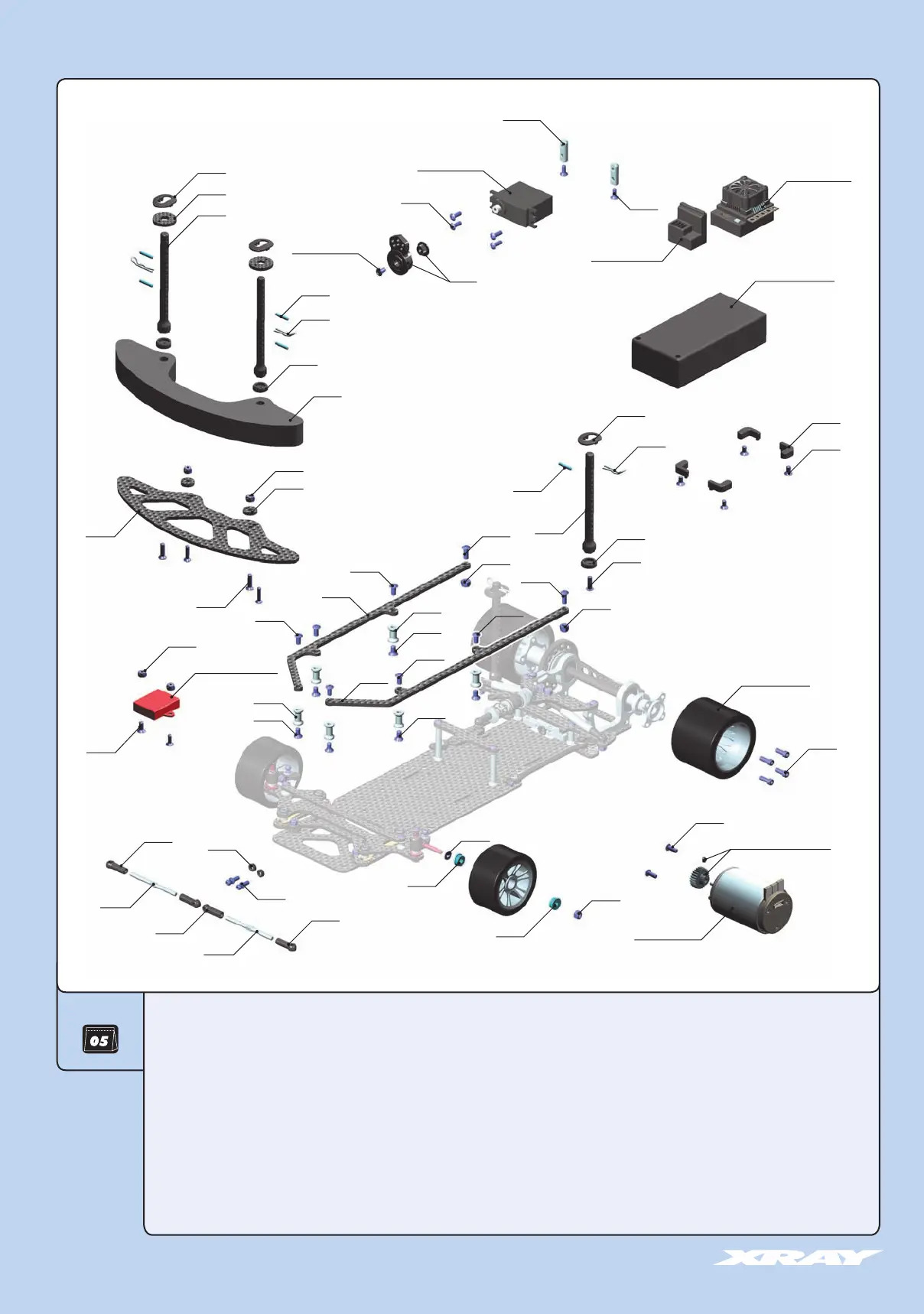

5. FINAL ASSEMBLY
305968~306000 PINION GEAR HARD COATED 18~50T/64P (OPTION)
306200-K ALU SERVO MOUNT - BLACK (2)
306219 COMPOSITE SET OF SERVO SHIMS (4)
309402 BODY CLIP FOR 6MM BODY POST (4)
352610 ADJ. TURNBUCKLE M3 L/R 45 MM - SPRING STEEL - V3 (2)
371325 COMPOSITE BODY POST (2)
371345 COMPOSITE SHIM FOR BODY POST (2)
371349 GRAPHITE SHIM FOR 6MM BODY POST 2.5MM (2)
372290 ALU SHIM 3.2x4.8x0.5 (4)
372503 COMPOSITE SERVO SAVER - X-STIFF - SET - V2
372650 BALL-END 4.2MM - THREADED - HUDY SPRING STEEL™ (2)
372661 COMPOSITE STEERING BALL-JOINT 4.2 MM OPEN (4)
373075 ALU REAR BRACE MOUNT 10.5MM - BLACK (2)
375390 ALU HEX SCREW M3x8 FOR REAR WHEELS (6)
376130 COMPOSITE LiPo BATTERY BACKSTOP (2)
376322 GRAPHITE SIDE BRACE 2.5MM (2)
902306 HEX SCREW SH M3x6 (10)
902308 HEX SCREW SH M3x8 (10)
902310 HEX SCREW SH M3x10 (10)
903305 HEX SCREW SFH M3x5 (10)
903306 HEX SCREW SFH M3x6 (10)
903308 HEX SCREW SFH M3x8 (10)
903312 HEX SCREW SFH M3x12 (10)
951851 BALL-BEARING 1/8“ x 5/16“ x 9/64“ FLANGED (2)
960030 NUT M3 (10)
981212 PIN 2x12 (10)
371040 GRAPHITE FRONT BUMPER & SHIMS 2.5MM - V2
371225 FOAM BUMPER
902306
902310
902306
373075
903306
