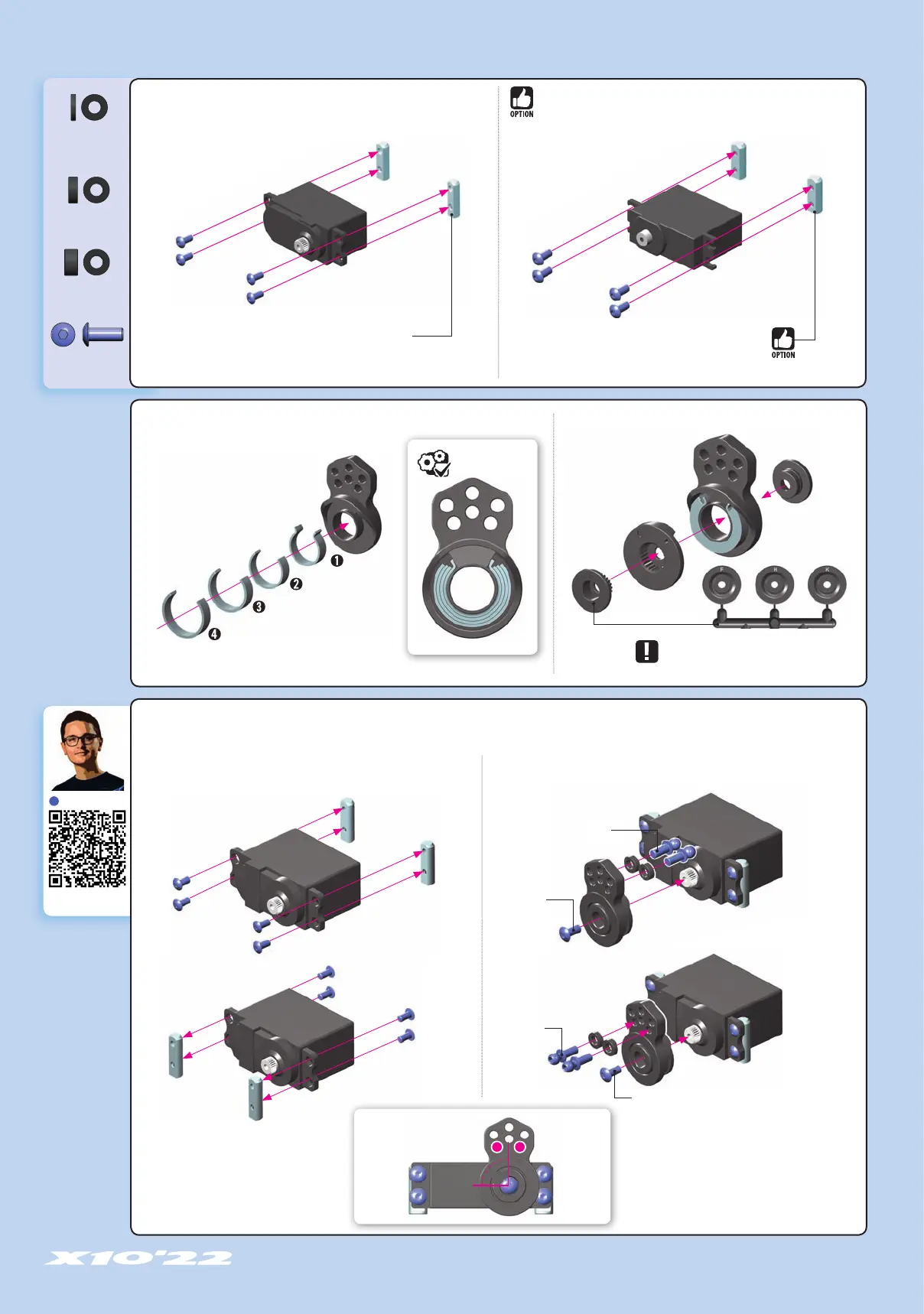

Xray X10 - Page 23

23
VIDEO TECH TIP
▶
ACKERMANN &
BUMPSTEER
902308
SH M3x8
306219
SHIM 3x6x1
306219
SHIM 3x6x2
306219
SHIM 3x6x3
F = 25T H = 24T K = 23T
Use the adapter that matches the steering servo.
SERVO SAVER
Servo Screw
(NOT INCLUDED)
Servo Screw
(NOT INCLUDED)
6mm
THREAD
6mm
THREAD
Note the orientation of servo
saver when servo is in neutral.
90º
Depending on the wheelbase and linkage position on the steering block you can
either mount the servo behind or ahead of the servo posts.
ACKERMANN SETTING
Ackermann is directly affected by wheelbase length and linkage position on the steering block.
You can also mount the ballstuds to the front or rear of the servo saver, and you can also
use shims to set the required Ackermann setting.
INITIAL SETTING
5. FINAL ASSEMBLY
ALTERNATIVE 2 - MID size servo
(OPTIONAL)
ALTERNATIVE 1 - STANDARD size servo
(INITIAL SETTING)
For STANDARD size servo use the
INCLUDED #306200-K alu servo mounts.
For MID size servo use the
OPTIONAL #376255-O alu servo mounts.
INCLUDED
OPTIONAL
STANDARD size servo
(NOT INCLUDED)
MID size servo
(NOT INCLUDED)
