TWEAK & SIDE
SPRINGS SETTING
VIDEO TECH TIP
▶
NOTE ORIENTATION
Top edge of hole is
beveled
DETAIL STEP

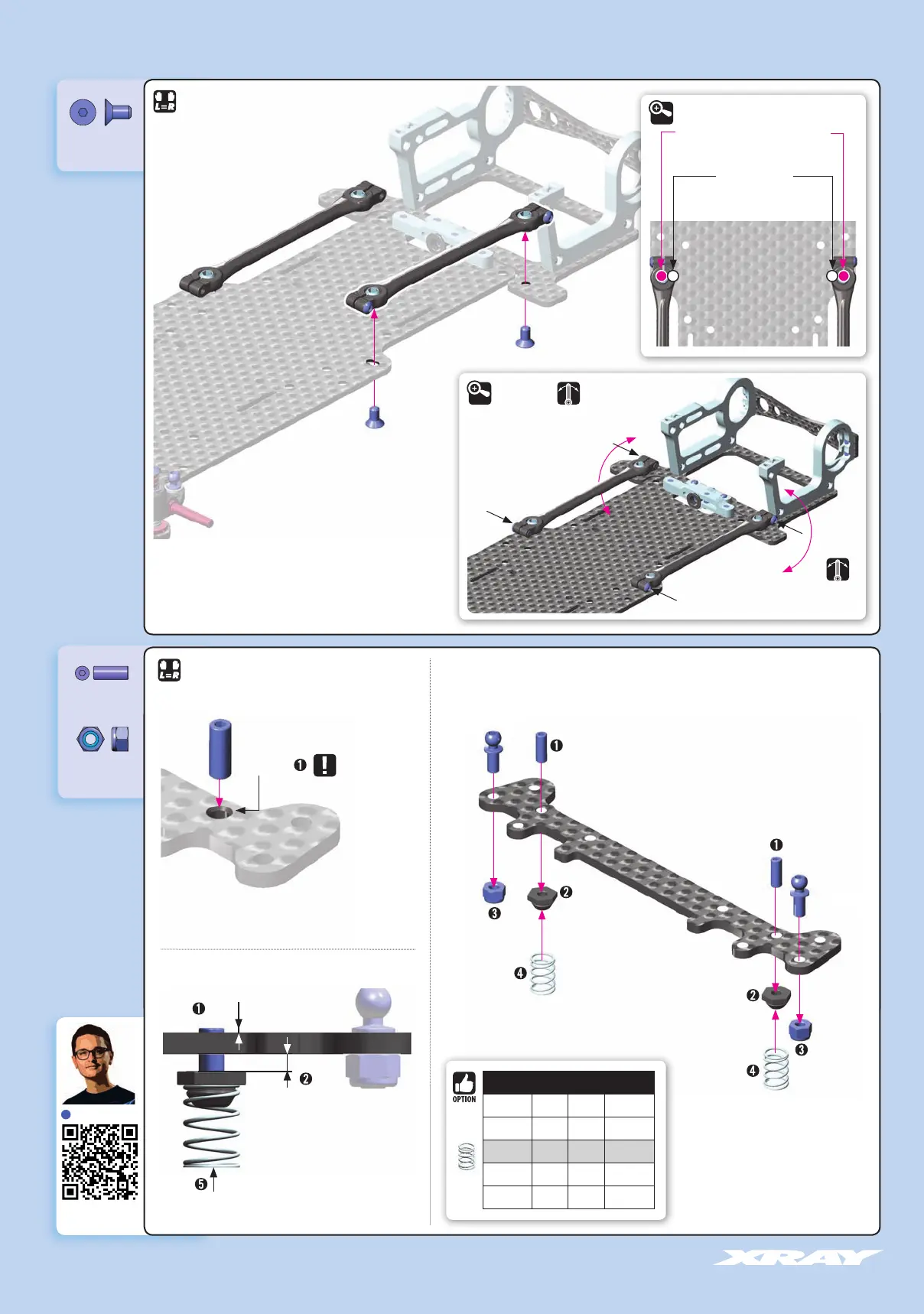

2. REAR SUSPENSION
DETAIL
POD LINKAGE POSITION
OUTER POSITION -
(INITIAL SETTING)
LESS ANGLED side links make the car
easier to drive.
INNER POSITION
MORE ANGLED side links give increased
in-corner steering.
"CLICK"
0.5mm
901308
SB M3x8
960030
N M3
2.0mm
903306
SFH M3x6
Tighten the screws enough
to remove excess play, while
ensuring that the pod plate
can move freely.
DETAIL
Ensure free, smooth movement
6mm THREAD
6mm THREAD
SIDE SPRINGS
#373584 C=0.6 SILVER OPTION
#373585 C=0.9 GOLD OPTION
#373586 C=1.2 BLACK INCLUDED
#373587 C=1.5 SILVER OPTION
#373588 C=1.8 GOLD OPTION
