7

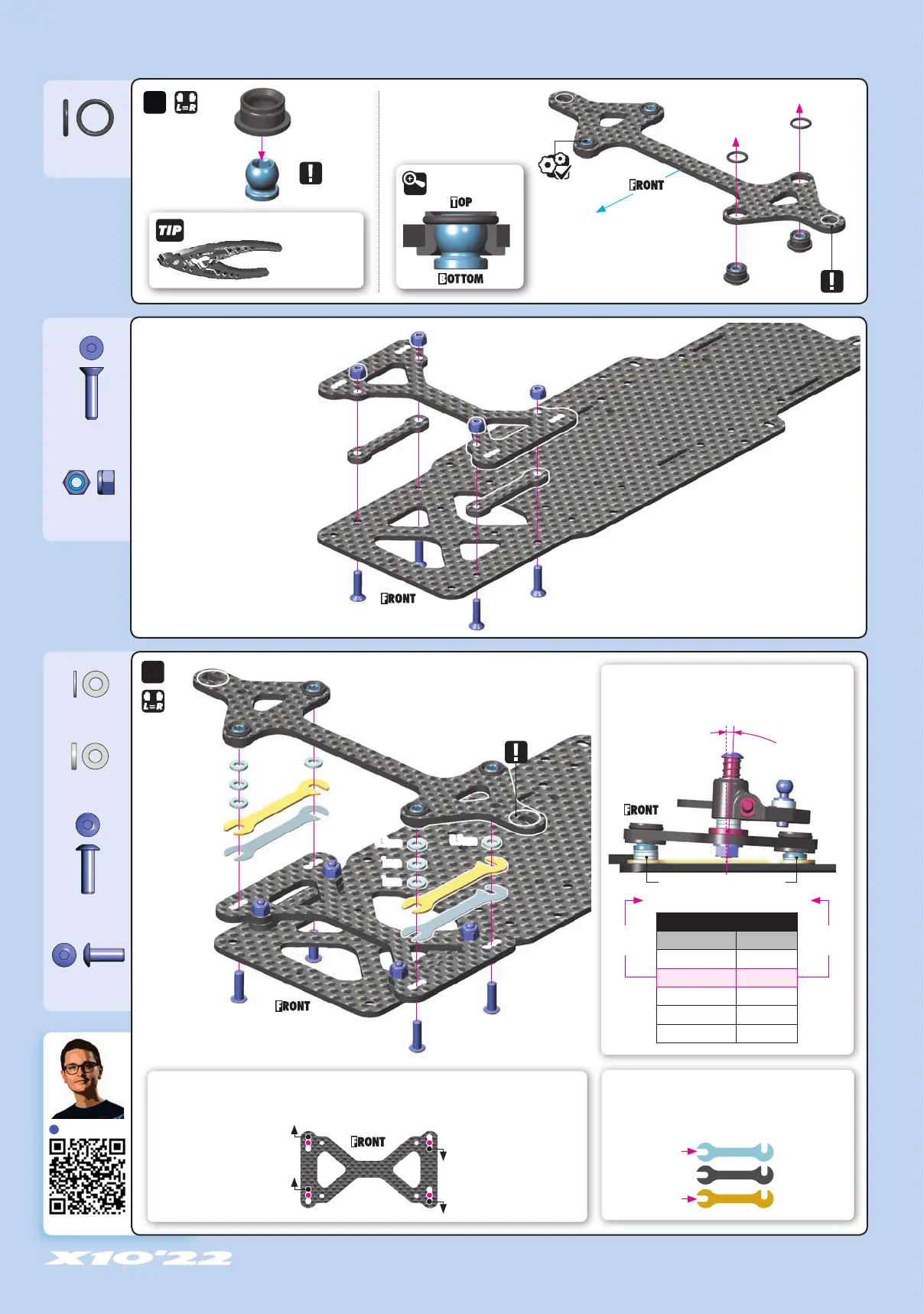

1. FRONT SUSPENSION
CASTER ADJUSTMENT
VIDEO TECH TIP
▶
970050
O 5x1
1mm
3x10
3x10
3x8
3x8
1mm
Install the balls with Professional Multi-Tool
(HUDY #183011)
0.5mm
0.5mm
1. FRONT SUSPENSION
2x
CUTAWAY VIEW
DETAIL
NOTE
ORIENTATION
NOTE
ORIENTATION
1mm
1mm
0.5mm
303120
SHIM 3x6x0.5
303122
SHIM 3x6x1
0.5mm
NOTE
ORIENTATION
ALTERNATIVE FRONT
POSITION
LONG WHEELBASE
ALTERNATIVE REAR
POSITION
SHORT WHEELBASE
FRONT WHEELBASE ADJUSTMENT
Longer wheelbase is recommended
for bigger tracks with longer
sweepers. Makes the car more stable
and easier to drive.
Shorter wheelbase allows the car to
rotate better in corners to maintain
cornering speed. Recommended for tight,
technical tracks or tracks with numerous
180° hairpin corners.
EXTRA SHIM UNDER FRONT BALL
SHIM DIFFERENCE CASTER
1mm 1.5º
2mm 3º
3mm 4.5º
4mm 6º
5mm 7.5º
CASTER ADJUSTMENT SETTING
Caster is adjusted by the shims placed under front ball.
Please see the table beneath the to understand how to set
caster.
2.5mm
2.5 - 0.5= 2.0mm (Shim Difference and Caster 3º )
0.5mm
CASTER
INITIAL
SETTING
INITIAL
SETTING
RIDE HEIGHT & CASTER ADJUSTMENT
The number of washers and shims used affects the ride height
and caster of the car, so determine the proper amount of
shimming based on tire diameter and desired caster angle.
INITIAL SETTING
INITIAL SETTING
0.2mm - SILVER
0.4mm - BLACK
0.6mm - GOLD
903312
SFH M3x12
960030
N M3
902310
SH M3x10
(INITIAL SETTING)
902308
SH M3x8
4x
To Next Page
