1. FRONT SUSPENSION
2x
The DOT must be oriented
towards OUTSIDE.
The DOT must be oriented
towards OUTSIDE.
(INITIAL SETTING)
(INITIAL SETTING)
INCLUDED
INCLUDED
OPTION
OPTION
OPTION
OPTION
NOTE ORIENTATION
NOTE ORIENTATION

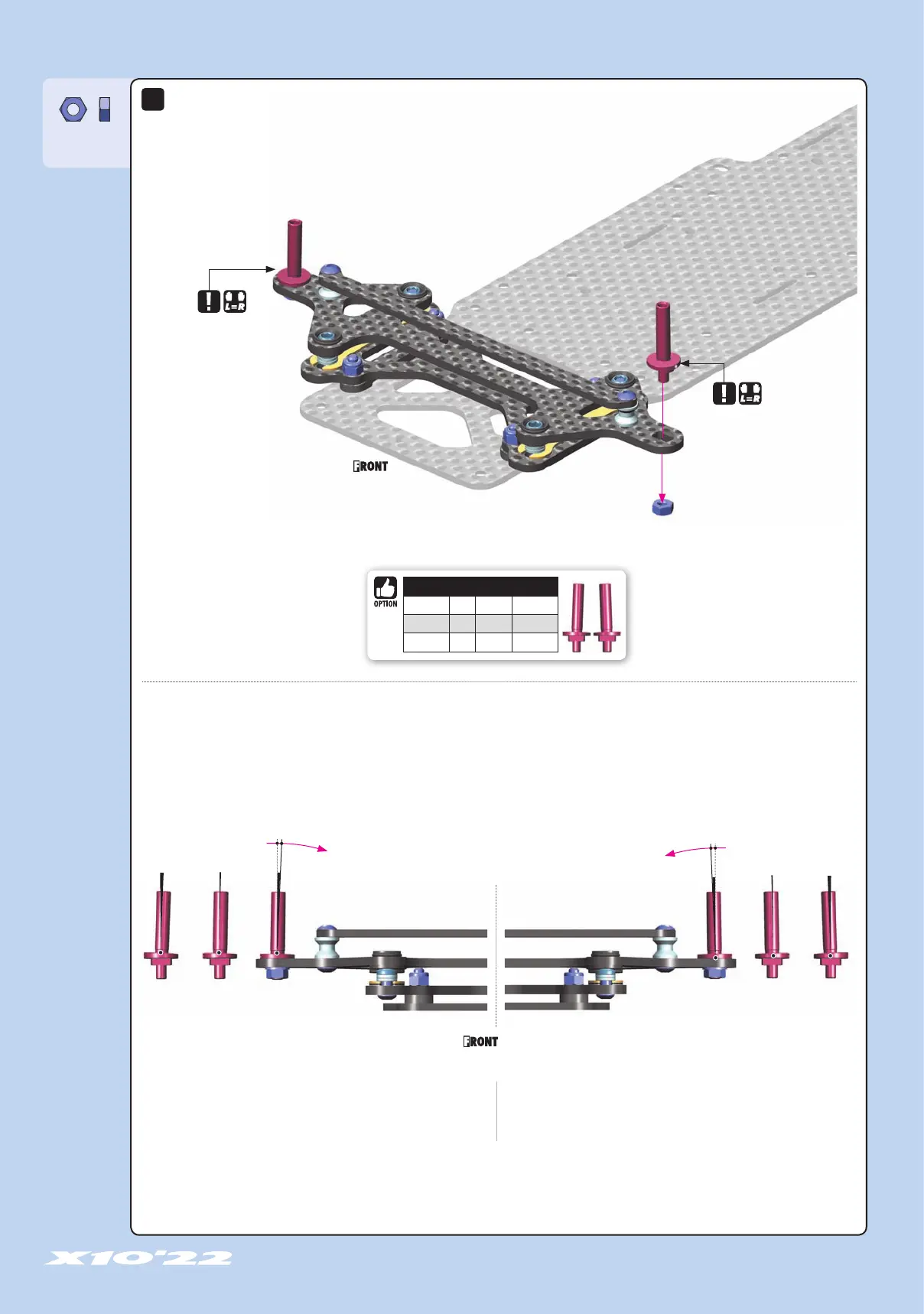

CAMBER ADJUSTMENT
The car features 1.5° angled king pin axles which are the recommended starting camber for most
tracks and traction conditions. There are 1° and 2° camber king pin axles optionally available.
DECREASING THE CAMBER ANGLE
will decrease the steering which will make the car easier
to drive and also helps to prevent traction rolling.
1 DOT1 DOT 3 DOTS3 DOTS 2 DOTS2 DOTS
1.5º
1.5º
1º1º 2º
2º
INCREASING THE CAMBER ANGLE
will increase the car steering, however, will make the
car more difficult to drive.
C
A
M
B
E
R
C
A
M
B
E
R
VIEW
CAMBER - KING PIN AXLE
#372287 1º 3 DOTS OPTION
#372288 1.5º 1 DOT INCLUDED
#372289 2º 2 DOTS OPTION
960032
N M3
