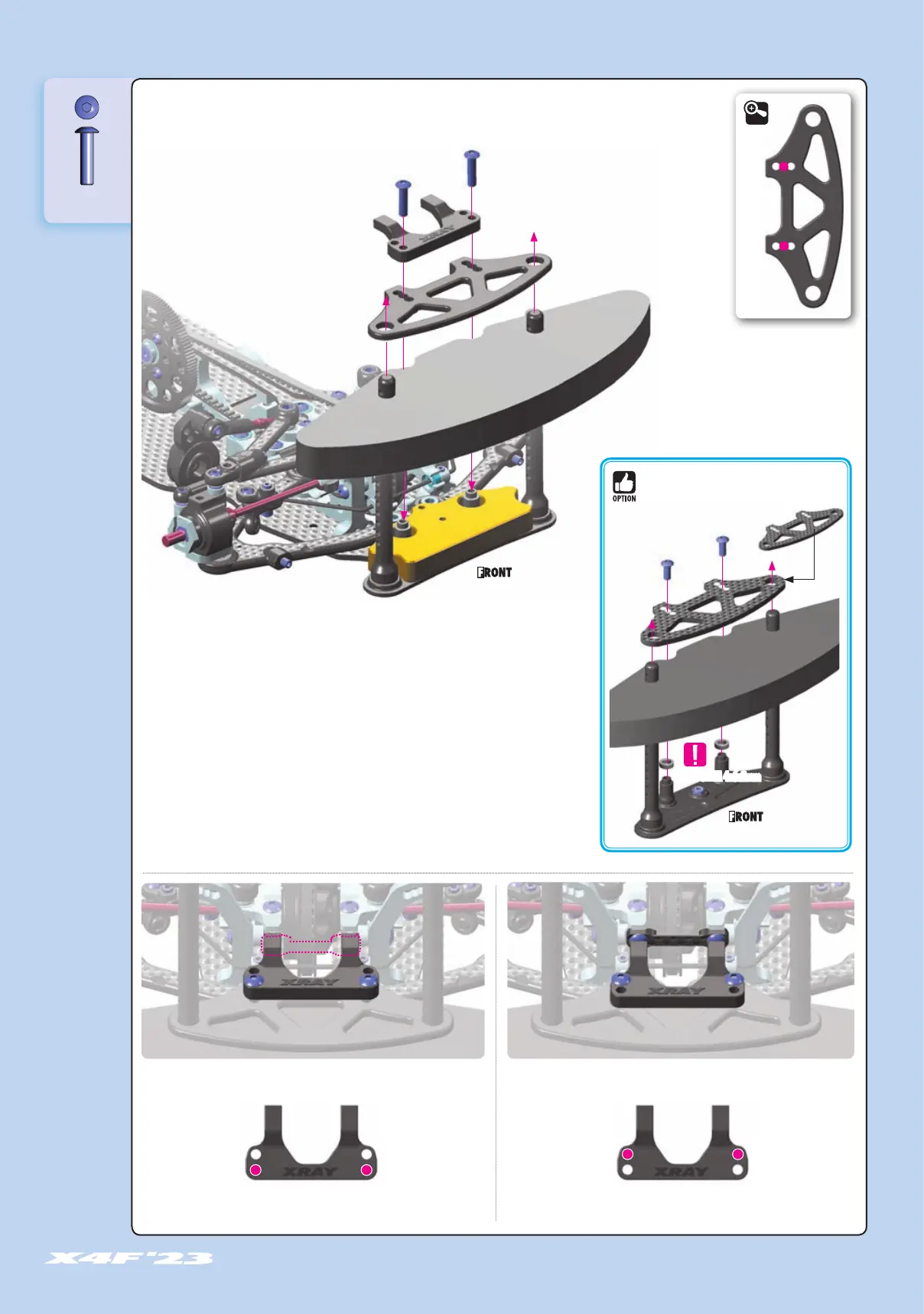

37
902312
SH M3x12
ALU SHIM 4x6x2mm
#301210
GRAPHITE UPPER HOLDER FOR BUMPER 2.5mm
(Alu shim 4x6x2mm - INCLUDED)
DETAIL
INITIAL
SETTING
INITIAL SETTING
7. FRONT & REAR ASSEMBLY
Position WITHOUT graphite brace Position WITH graphite brace
