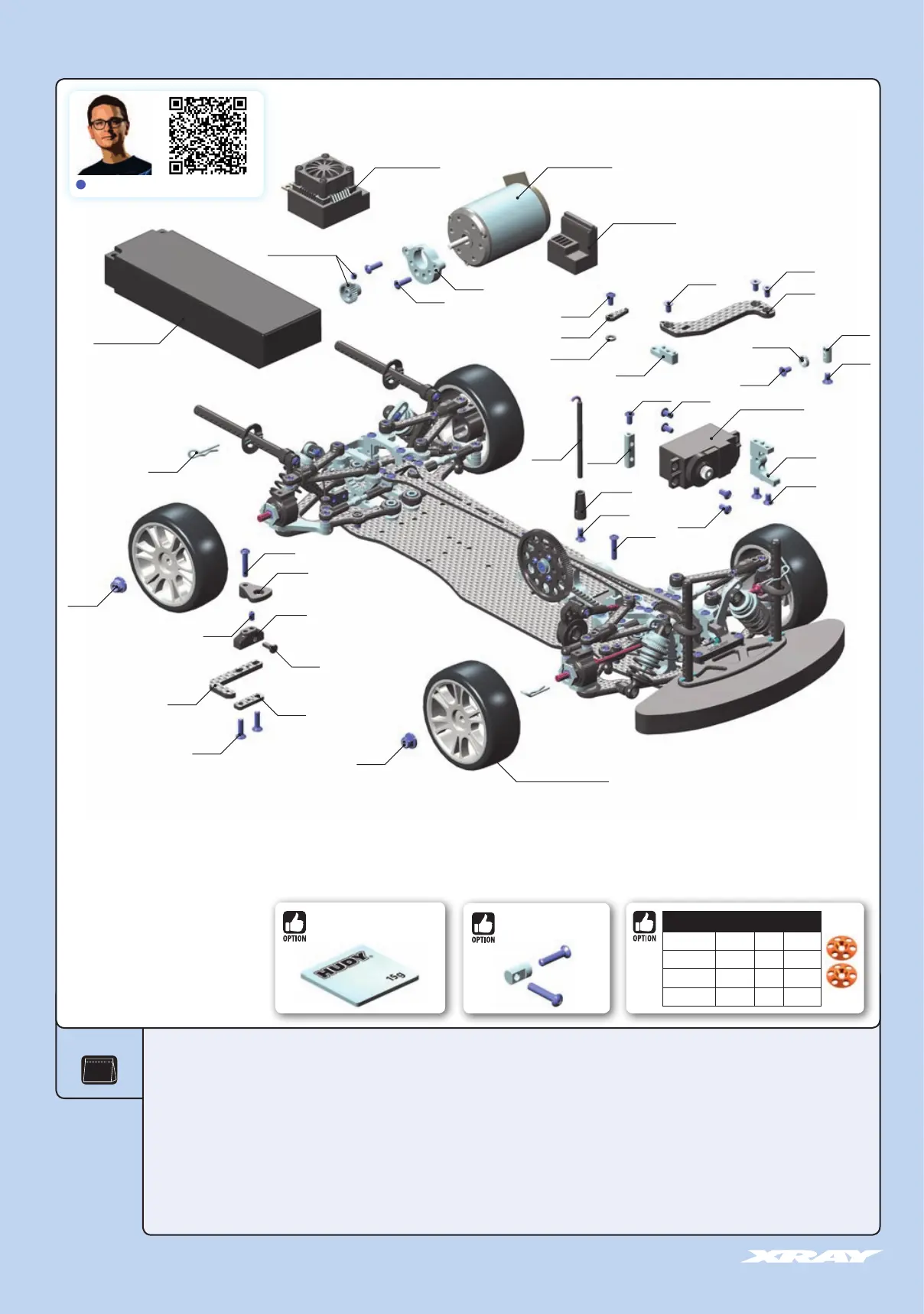

Xray X4F - 7. FINAL ASSEMBLY

40
BAG
07
305912~294160
(NOT INCLUDED)
LiPo Battery Pack
(NOT INCLUDED)
Speed Controller
(NOT INCLUDED)
Receiver
(NOT INCLUDED)
Motor
(NOT INCLUDED)
Wheels & Tires & Inserts
(NOT INCLUDED)
Steering Servo
(NOT INCLUDED)
306410
903306
306236
306201
903308
902306
902306
902316
903306
306207
903306
903306
306301
306310
309402
960240
903312
960240
306134
296510-K
903306
303122-K
364090
306192
306177
902310
376170
902306
306189
901305
306192
326177
902320
902306
305912~294160 NARROW ALU PINION GEAR 12T~60T (OPTION)
296510-K ALU COUNTERSUNK SHIM - BLACK (10)
303122-K ALU SHIM 3x6x1.0MM - BLACK (10)
306134 X4F ALU BATTERY HOLDER BACKSTOP
306177 GRAPHITE BATTERY PLATE SHIM (2)
306189 X4F GRAPHITE BATTERY ADJUSTABLE WIDTH PLATE
306192 COMPOSITE ADJUSTABLE BATTERY HOLDER & BACKSTOP (2+2)
306201 ALU SERVO MOUNT - LONG
306207 X4F ALU SERVO MOUNT - BLACK
306236 X4F GRAPHITE FLOATING SERVO HOLDER 3.0MM
306301 ANTENNA MOUNT - THIN
306410 ALU UNIVERSAL MOUNT
309402 BODY CLIP FOR 6MM BODY POST (4)
326177 COMPOSITE BATTERY CLAMP (2)
364090 ALU ECCENTRIC MOTOR BULKHEAD INSERT
376170 GRAPHITE BATTERY CLAMP 2.2MM (2)
901305 HEX SCREW SB M3x5 (10)
902306 HEX SCREW SH M3x6 (10)
902310 HEX SCREW SH M3x10 (10)
902316 HEX SCREW SH M3x16 (10)
902320 HEX SCREW SH M3x20 (10)
903306 HEX SCREW SFH M3x6 (10)
903308 HEX SCREW SFH M3x8 (10)
903312 HEX SCREW SFH M3x12 (10)
960240 NUT M4 WITH SERRATED FLANGE (10)
306310 ANTENNA (2)
ALU REAR WING SHIM
#353561 SILVER XRAY OPTION
#293561 SILVER HUDY OPTION
#293561-K BLACK HUDY OPTION
#293561-O ORANGE HUDY OPTION
#306410
ALU FAN MOUNT
ELECTRONICS INSTALLATION
VIDEO TECH TIP
▶
7. FINAL ASSEMBLY
TUNGSTEN & STAINLESS STEEL
WEIGHTS (on page 42 and 45)
