41
STEERING SYSTEM
VIDEO TECH TIP
▶
902306
SH M3x6
7. FINAL ASSEMBLY
90°
DETAIL

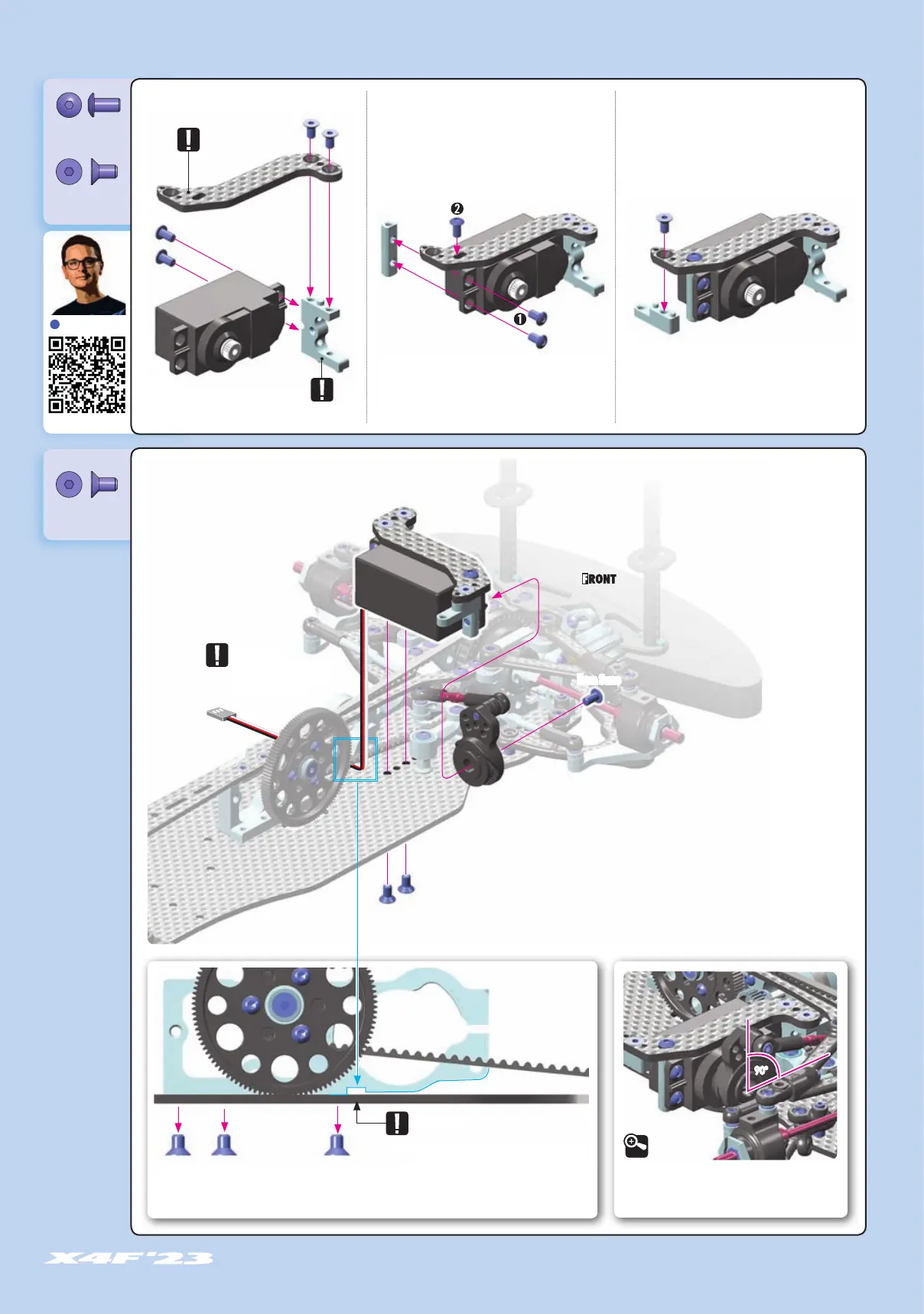

Attach servo arm to servo output shaft using screw from
servo. Servo saver must be perpendicular to chassis when
servo is in neutral.
903306
SFH M3x6
903306
SFH M3x6
From Servo
NOTE ORIENTATION
NOTE ORIENTATION
The motor mount features
a cut-out for the servo wire
to pass underneath.
SERVO WIRE
The motor mount features a cut-out for the servo wire
to pass underneath. When installing servo, loosen the
motor mount, place the servo wire in the groove, and
then tighten the motor mount and top deck.
(untight the motor mount screws)
SERVO WIRE
To Next Page
