44
VIDEO TECH TIP
▶
WEIGHT BALANCE
BATTERY MOUNTING
SYSTEM
VIDEO TECH TIP
▶
903312
SFH M3x12
902306
SH M3x6
303122-K
SHIM 3x6x1

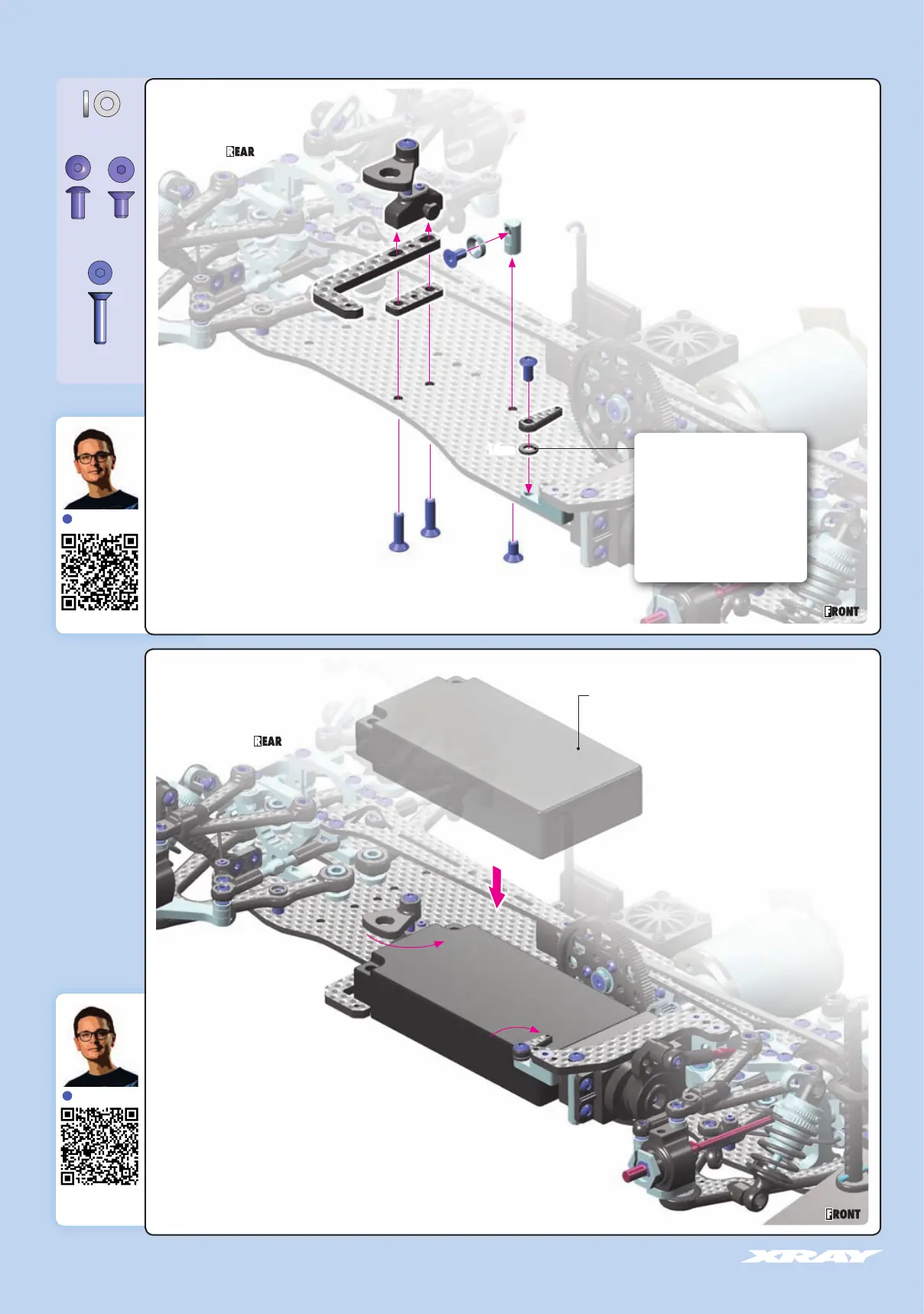

7. FINAL ASSEMBLY
LiPo Battery Pack
(NOT INCLUDED)
903306
SFH M3x6
1.0mm
The shim thickness and screw length
depends on the the battery size. If you
use a LOW-PROFILE SHORT BATTERY,
use 3x6x1mm shim and 3x6mm screw
included in the kit.
If you use a NORMAL SHORT BATTERY, use
3x6x4mm shim (3x6x1mm+3x6x3mm)
and 3x10mm screw.
