Xray XB8 Series User Manual

16

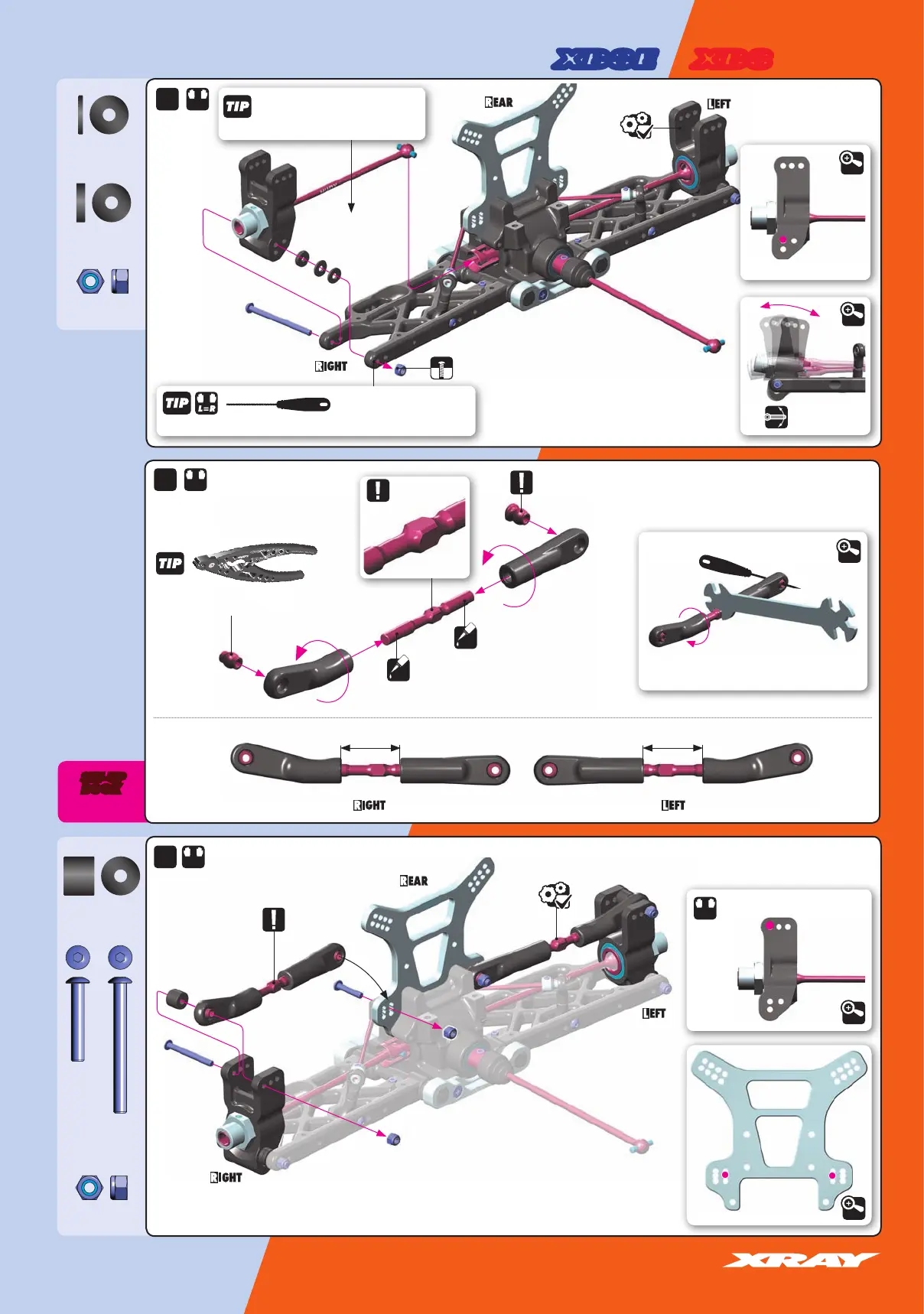

4. REAR SUSPENSION
CAMBER
XB8XB8E
353370
SHIM 3x9x1
353354
SHIM 3x9x7
353370
SHIM 3x9x2
960030
N M3
902318
SH M3x18
902330
SH M3x30
960030
N M3
Ensure that the rear upright moves freely.
If it does not move freely, use sandpaper
to thin both wheelbase adjustment shims.
Shims for wheelbase
adjustment
Do not overtighten the self-locking nut.
Overtightening may result in suspension binding.
If the rear upright does not move freely, use a HUDY Arm Reamer to resize the hole.
ARM REAMER
2+1+1mm
INITIAL SETTING
(HUDY #107633)
2x
L=R
Check for free
movement
DETAIL
DETAIL
2x
2x
L=R
L=R
RIGHT
THREAD
LEFT
THREAD
OIL
OIL
RIGHT THREAD RIGHT THREADLEFT THREAD LEFT THREAD
26.5mm
7mm
26.5mm
NOTE ORIENTATION
NOTE
ORIENTATION
INITIAL SETTING
DETAIL
DETAIL
INITIAL SETTING
L=R
NOTE
ORIENTATION
3x18mm
3x30mm
BOOK
SET-UP
DETAIL
Use tools to tighten as shown
Special Tool for all turnbuckles & nuts (HUDY #181090)
or Turnbuckle Wrench 5mm (HUDY #181050)
Install the pivot balls with Professional
Multi Tool (HUDY #183011)
