Xray XB8 Series User Manual

20

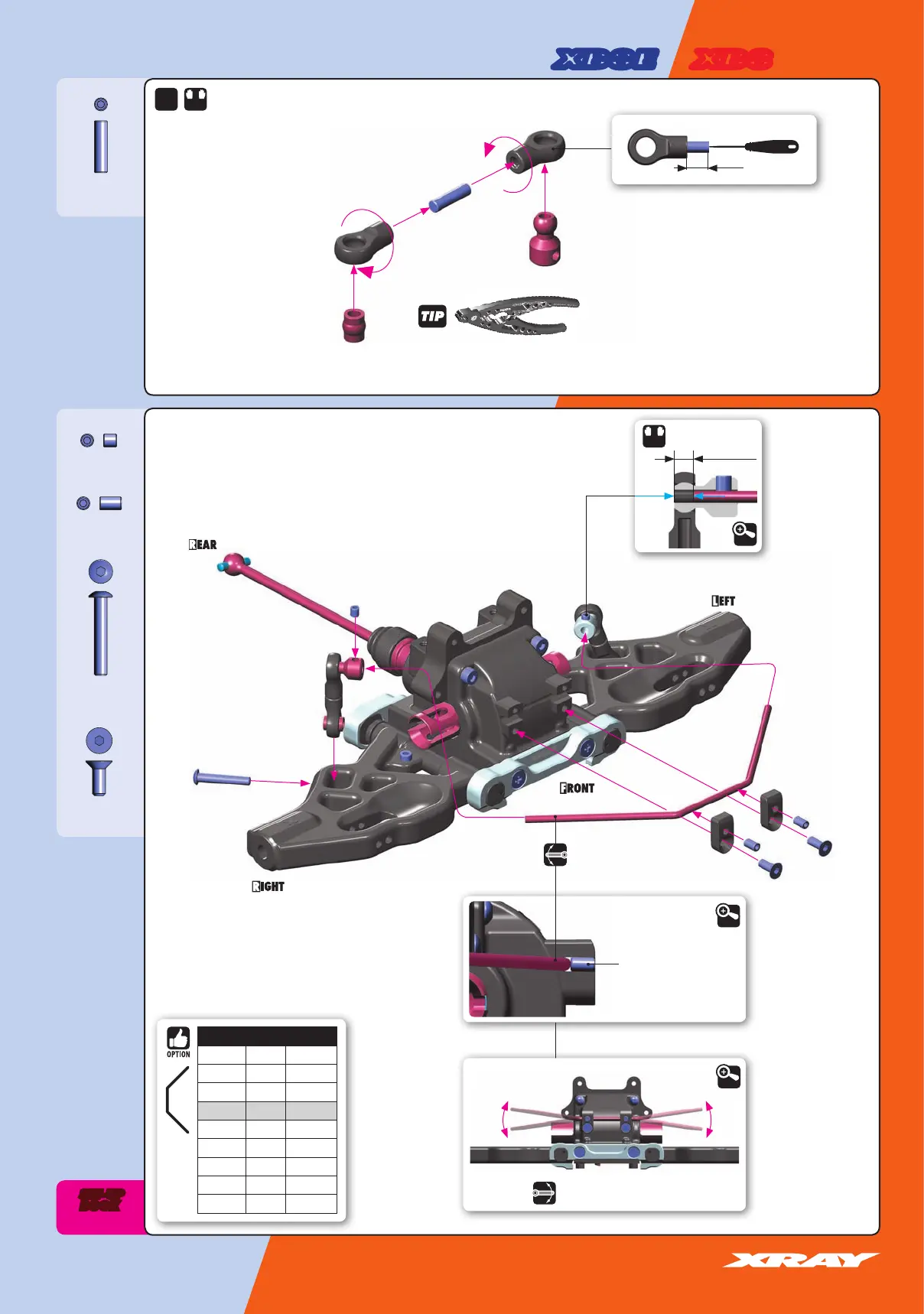

5. FRONT SUSPENSION
ANTI-ROLL BAR
901303
SB M3x3
901305
SB M3x5
901312
SB M3x12
902318
SH M3x18
903308
SFH M3x8
XB8XB8E
FRONT ANTI-ROLL BARS
#352487 1.6mm OPTION
#352489 1.8mm OPTION
#352490 2.0mm OPTION
#352492 2.2mm INCLUDED
#352493 2.3mm OPTION
#352494 2.4mm OPTION
#352495 2.5mm OPTION
#352496 2.6mm OPTION
#352498 2.8mm OPTION
3x3mm
3x5mm
3x8mm
3x18mm
L=R
2x
Step check for free movement
➊
Loosen the 3x5 setscrew if
the anti-roll bar does not
turn freely
Step
➊
➊
➋
➌
➍
1.5mm
6mm
1.5~2.5mm
L=R
STEP DETAIL
➍
DETAIL
DETAIL
DETAIL
BOOK
SET-UP
Install the pivot balls with Professional
Multi Tool (HUDY #183011)

Xray XB8 Series Specifications

General

Scale	1/8
Drive	4WD
Type	Buggy
Chassis	7075 T6 Aluminum
Body	Not included
