Xray XB8 Series User Manual

25

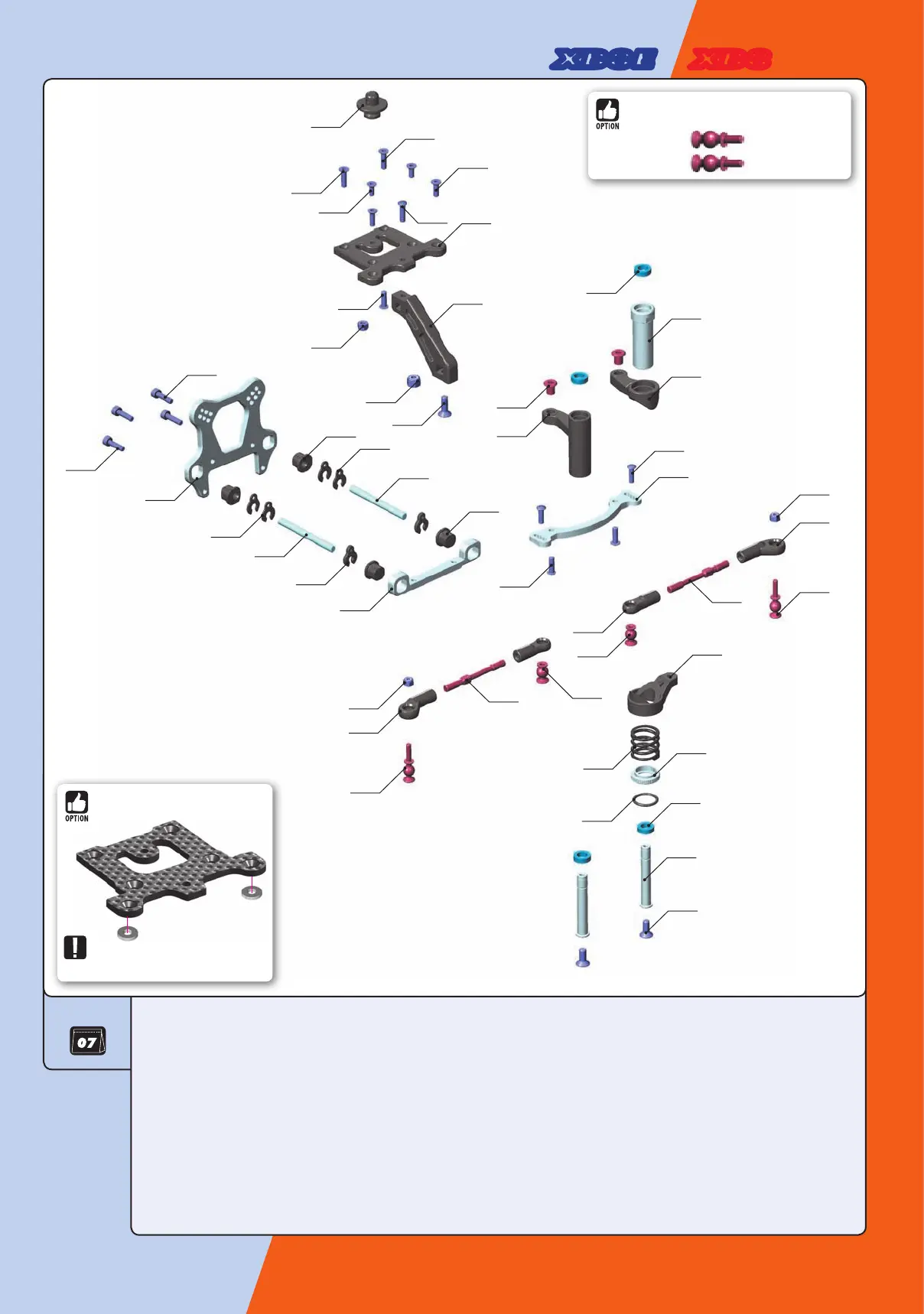

XB8XB8E7. STEERING
351301 BODY POSTS
351344 COMPOSITE UPPER PLATE
352084 COMPOSITE FRONT BRACE
352052 ALU FRONT SHOCK TOWER - CNC MACHINED 7075 T6 (4MM)
352314 COMPOSITE SQUARE ADJ. ROLL CENTER BUSHINGS - V2 (2)
352333 ALU FRONT UPPER ARM HOLDER - SWISS 7075 T6 (6MM)
352381 CASTER CLIPS (2)
352505 SERVO SAVER COMPLETE SET - GRAPHITE
352514 COMPOSITE SERVO SAVER - GRAPHITE
352576 STEERING PLATE BUSHING (2)
352579 ALU STEERING PLATE - SWISS 7075 T6
352612 ADJ. TURNBUCKLE M4 L/R 45 MM - HUDY SPRING STEEL™ (2)
352653 BALL STUD 6.8MM WITH BACKSTOP - M3 (2)
352659 BALL STUD 6.8MM WITH BACKSTOP L=6MM - M3x11 (2)
352664 COMPOSITE STEERING BALL JOINT 6.8MM - V3 (2)
352666 COMPOSITE RELIEF STEERING BALL JOINT 6.8MM (2)
BAG
352576
352514
902308
357222
357222
960030
352653
352666
352666
352659
960030
902310
960040
352612
352612
351301
903310
903312
903308
940610
352505
352514
352579
902310
960030
352664
352659
352514
352505
352505
970121
940610
352505
903410
903312
351344
352084
352381
352381
352381
352333
352314
352314
908312
908312
352052
903412
357222 FRONT UPPER PIVOT PIN 4x45 (2)
902308 HEX SCREW SH M3x8 (10)
902310 HEX SCREW SH M3x10 (10)
902312 HEX SCREW SH M3x12 (10)
903308 HEX SCREW SFH M3x8 (10)
903310 HEX SCREW SFH M3x10 (10)
903312 HEX SCREW SFH M3x12 (10)
903410 HEX SCREW SFH M4x10 (10)
903412 HEX SCREW SFH M4x12 (10)
908312 HEX SCREW SOCKET HEAD CAP SCH M3x12 (10)
940610 BALL-BEARING 6x10x3 RUBBER SEALED - OIL (2)
960030 NUT M3 (10)
960040 NUT M4 (10)
970121 O-RING 12.1 x 1.6 (10)
352653
902312
#352658
BALL STUD 6.8mm WITH BACKSTOP L=6mm - M3x8 (2)
Must be used also 2pcs of #303136 shim 3x7x1mm.
NOTE
#351348
GRAPHITE UPPER PLATE
