Xray XB8 Series User Manual

46
SHOCK OIL
Gently push the shock shaft
completely into the shock
body. Excess oil will flow
through the hole in the
shock cap.
Keep the shock shaft
pushed in the shock body
and tighten the shock cap
completely.
The rebound will be at
approximately 0%.
➐
HALF TIGHTEN TIGHTEN FULLY
100%
Follow the steps below to set the shock rebound to the default setting of 0%.
970180
O 18x1.8

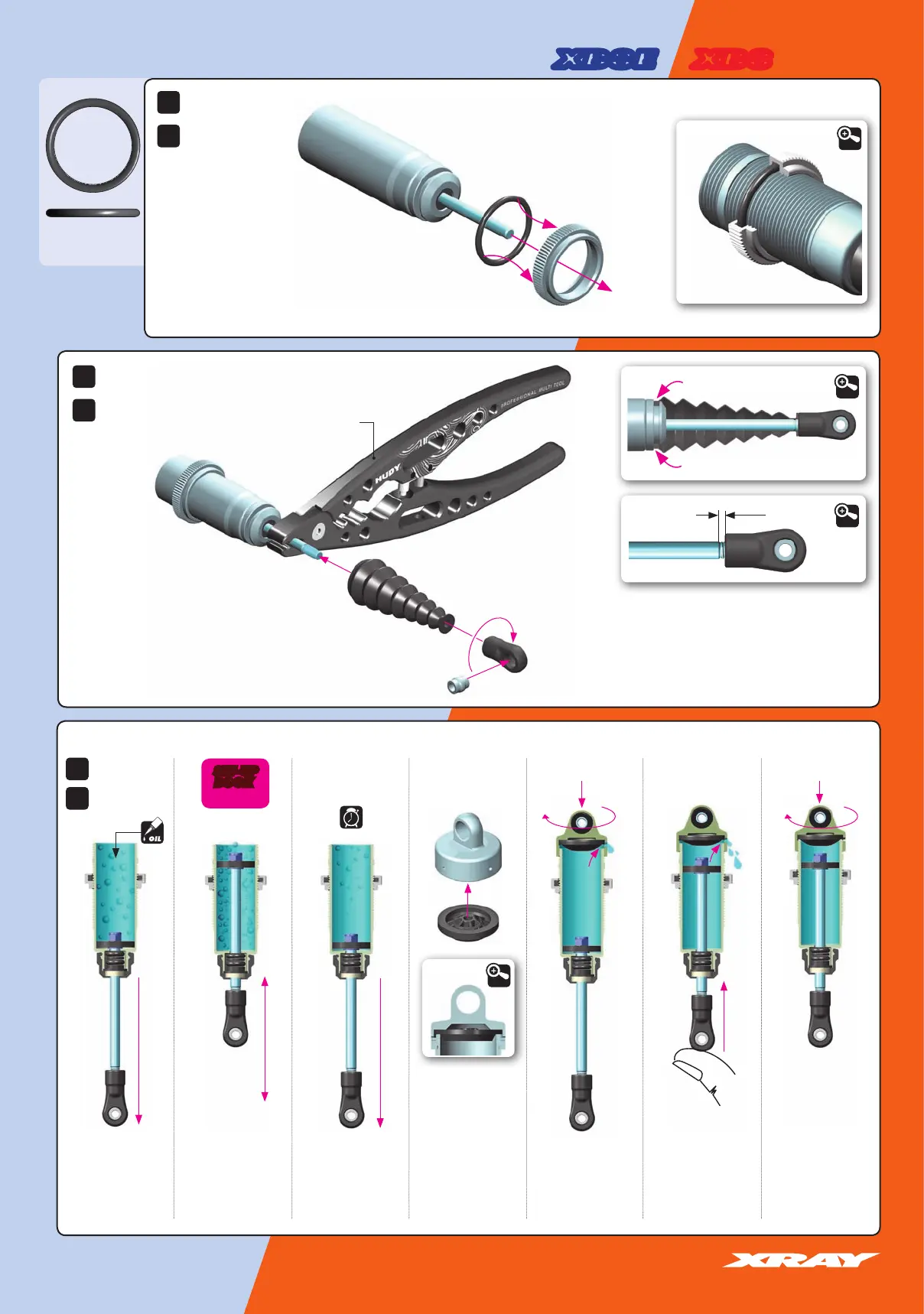

XB8XB8E11. SHOCK ABSORBERS
FRONT (SHORT)
Oil 550cSt
2x
REAR (LONG)
Oil 600cSt
2x
Extend the shock shaft
completely. Fill the shock
body with the shock oil.
For the FRONT shocks
(short) use 550cSt oil. For
the REAR shocks (long) use
600cSt oil.
Move the shock shaft up and
down a few times to release
the air bubbles trapped
beneath the piston.
Orient the filled shock
vertically for several
minutes with the shock
shaft fully extended. The
remaining air bubbles will
release.
Install the shock membrane
into the groove in the
upper shock cap.
Gently place the shock cap
assembly onto the filled
shock body. Excess oil will
spill from the shock. Screw
the shock cap onto the
body by only a few turns.
➊ ➋ ➌ ➍ ➎ ➏
3~5x
UP & DOWN
50%
DEFAULT SHOCK REBOUND SETTING 0% (LOW REBOUND)
DETAIL
FRONT SHOCKS
FRONT SHOCKS
2x
2x
REAR SHOCKS
REAR SHOCKS
2x
2x
DETAIL
DETAIL
1 mm
DETAIL
BOOK
SET-UP
Professional Multi Tool
(HUDY #183011)
