Xray XB8 Series User Manual

49

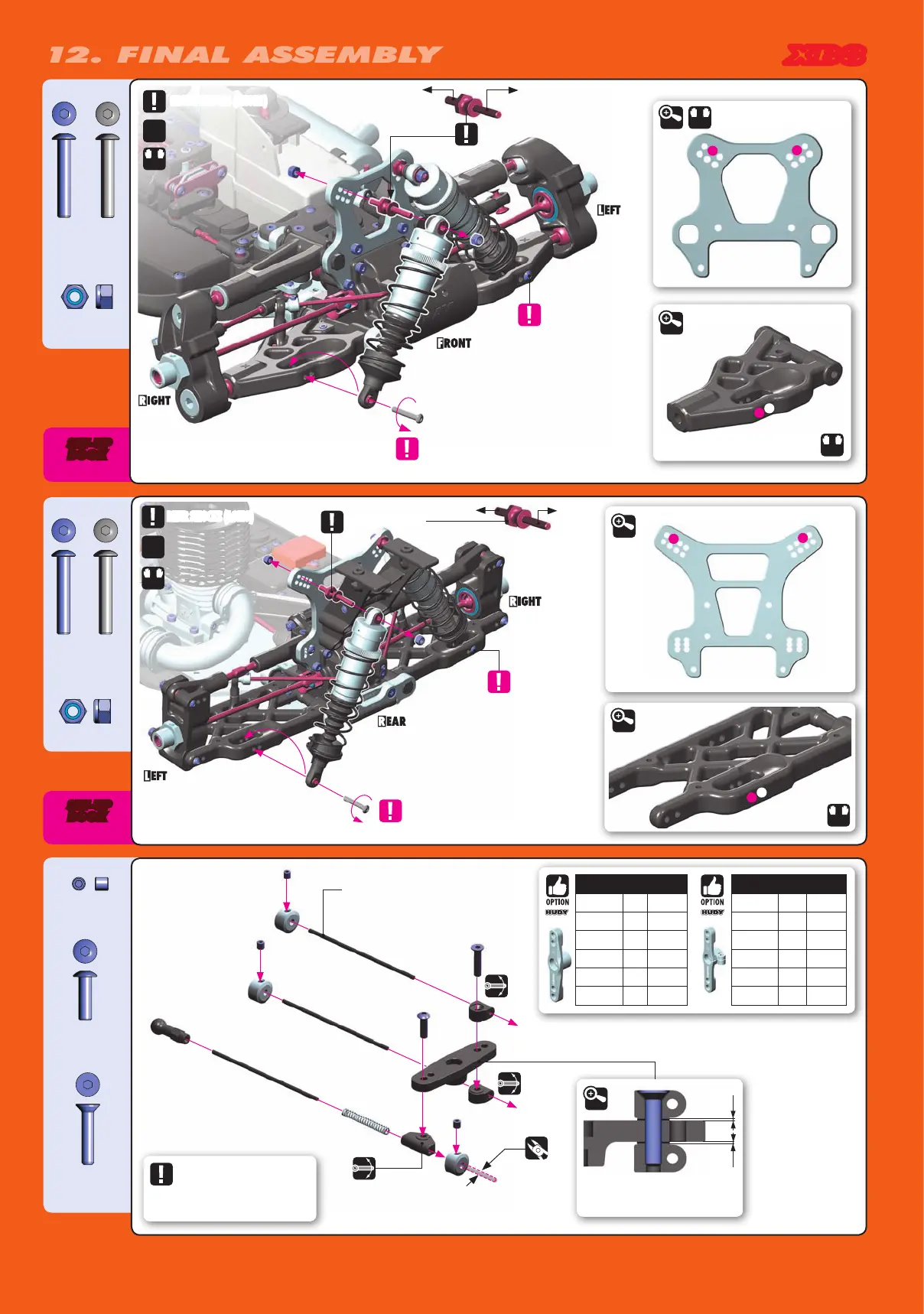

SHOCK ABSORBERS
SHOCK ABSORBERS
901303
SB M3x3
902310
SH M3x10
903314
SFH M3x14
960030
N M3
902319
SH M3x18
LEFT thread
902318
SH M3x18
XB8
FRONT SHOCKS (SHORT)
NOTE ORIENTATION
SHORTER
LONGER
On the front right arm use the SILVER M3x18
screw - this screw has LEFT THREAD
Use STANDARD
M3x18 screw
3x18mm
L=R
2x
INITIAL SETTING
DETAIL
DETAIL
INITIAL SETTING
902319
SH M3x18
LEFT thread
960030
N M3
902318
SH M3x18
12. FINAL ASSEMBLY
REAR SHOCKS (LONG)
On the rear left arm use the SILVER M3x18
screw - this screw has LEFT THREAD
Use STANDARD
M3x18 screw
M3x18mm
NOTE ORIENTATION
SHORTER
LONGER
L=R
L=R
L=R
2x
Tighten screw until snug.
Pivots should move freely.
Small gap
Small gap
DETAIL
Brake rod
Throttle rod
Thread brake rods into plastic
pivots until flush with outer end
Brake rod
Cut off
remaining
material
Use servo horn to match your servo
K - (23T) H - (24T) F - (25T)
INITIAL SETTING
DETAIL
BOOK
SET-UP
BOOK
SET-UP
DETAIL
L=R
INITIAL SETTING
CLAMP ALU SERVO HORNS
#293444 23T OPTION
#293445 24T OPTION
#293446 25T OPTION
#293447 23T OPTION
#293448 24T OPTION
#293449 25T OPTION
ALU SERVO HORNS
#293504 23T OPTION
#293505 24T OPTION
#293506 25T OPTION
#293507 23T OPTION
#293508 24T OPTION
#293509 25T OPTION

Xray XB8 Series Specifications

General

Scale	1/8
Drive	4WD
Type	Buggy
Chassis	7075 T6 Aluminum
Body	Not included
