Xray XB8 Series User Manual

6

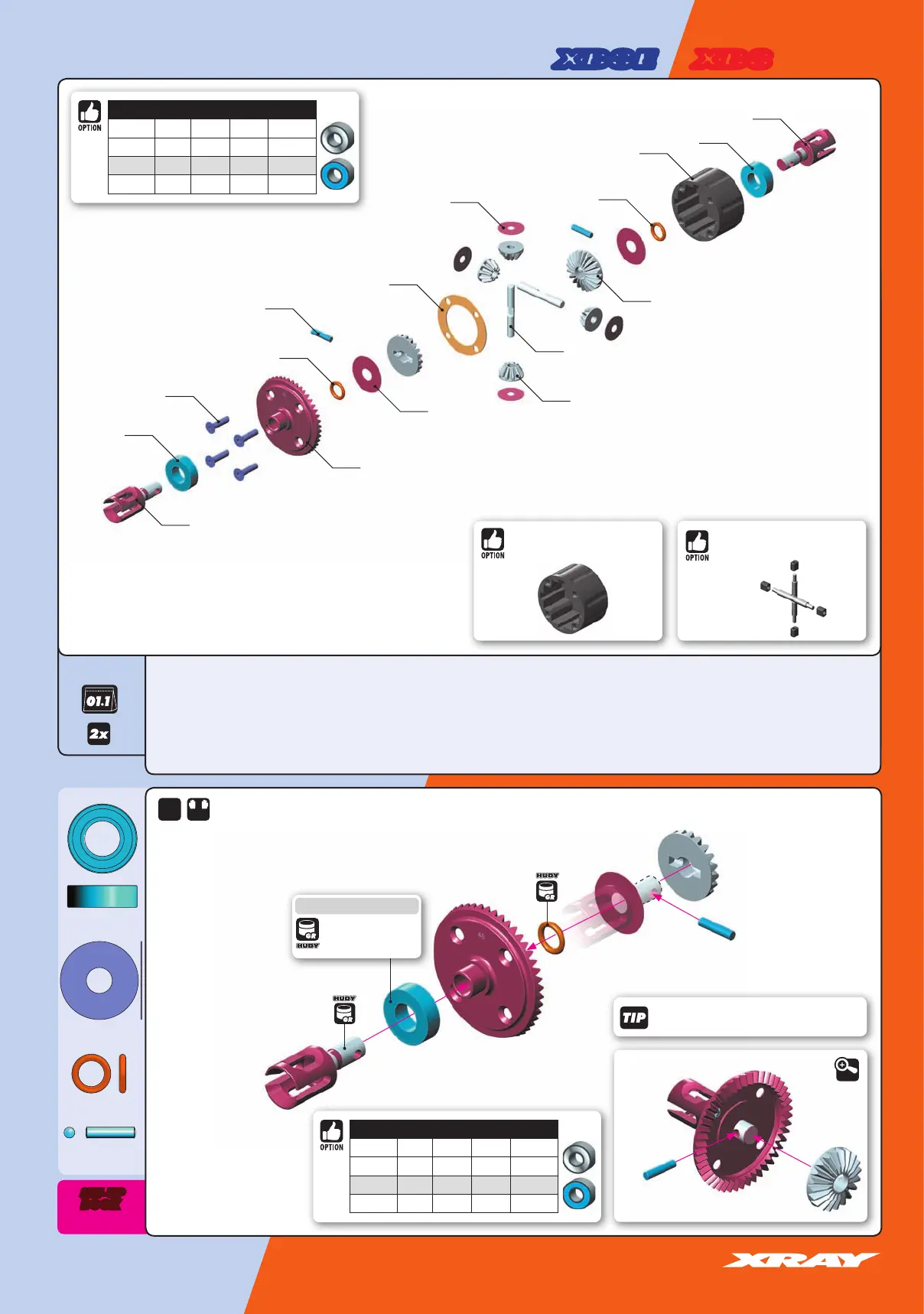

DIFFERENTIAL GEARS
1. F&R DIFFERENTIALS
2x
F=R
➊
➋
➌
➍
➎
➏
355005 XB8 DIFFERENTIAL 46T - V2 - SET
355022 DIFFERENTIAL CASE - V2
355031 STEEL DIFF BEVEL & SATELLITE GEARS - V2 (2+4)
355046 FRONT/REAR DIFF LARGE BEVEL GEAR 46T - HUDY STEEL
355065 DIFF OUTDRIVE ADAPTER - V2 - HUDY SPRING STEEL™ (2)
355084 F/R DIFF PIN (2)
355091 F/R DIFF GASKET (4)
903312 HEX SCREW SFH M3x12 (10)
940816 BALL-BEARING 8x16x5 RUBBER SEALED - GREASE (2)
964030 WASHER S 3.5x12x0.2 (10)
964060 WASHER S 6x18x0.2 (10)
971061 SILICONE O-RING 6x1.55 (10)
980261 PIN 2.5x11.5 (10)
BAGS
940816
903312
355046
964060
355031
355031
971061
355022
940816
355091
964030
980261
971061
355084
355065
355065
940816
BB 8x16x5
964060
S 6x18x0.2
971061
O 6x1.55
980261
P 2.5x11.5
Graphite Grease
(HUDY #106210)
Graphite Grease
(HUDY #106210)
STEP DETAIL
➎
➎➏
➏
DETAIL
BOOK
SET-UP
IMPORTANT!
Use the same diff outdrives on both ends of a diff.
#355022-G
DIFFERENTIAL CASE - V2 - GRAPHITE
#355086
HEAT RESISTANT F/R ALU DIFF PIN
+ INSERTS (SET)
XB8XB8E
Use HUDY Ball-Bearing Grease
#106220 - STANDARD
#106221 - BLUE
#106222 - RED
XRAY BALL-BEARING
#930816 8x16x5 GREASE STEEL OPTION
#930817 8x16x5 OIL STEEL OPTION
#940816 8x16x5 GREASE RUBBER INCLUDED
#940817 8x16x5 OIL RUBBER OPTION
XRAY BALL-BEARING
#930816 8x16x5 GREASE STEEL OPTION
#930817 8x16x5 OIL STEEL OPTION
#940816 8x16x5 GREASE RUBBER INCLUDED
#940817 8x16x5 OIL RUBBER OPTION
