2. REAR TRANSMISSION
980314
P 3x14
Graphite Grease
(HUDY #106210)
Apply oil from inside to prevent
breakage of the rubber boot.
BEFORE inserting the clip on the central CVD shaft joint, apply a small amount of
threadlock on the area where the clip goes.
AFTER inserting the clip on the central CVD shaft joint, turn the clip so that the slot
is 90° from the pin. This will prevent the pin from opening the clip.
930816
BB 8x16x5
(Steel covers)
INITIAL SETTING
INITIAL SETTING
LOWER CENTER
INLINE HUB FOR BEVEL DRIVE GEAR
POSITIONS
UPPER
115mm - LONG CVD DRIVE SHAFT
BAG 00.9
BAG 00.9

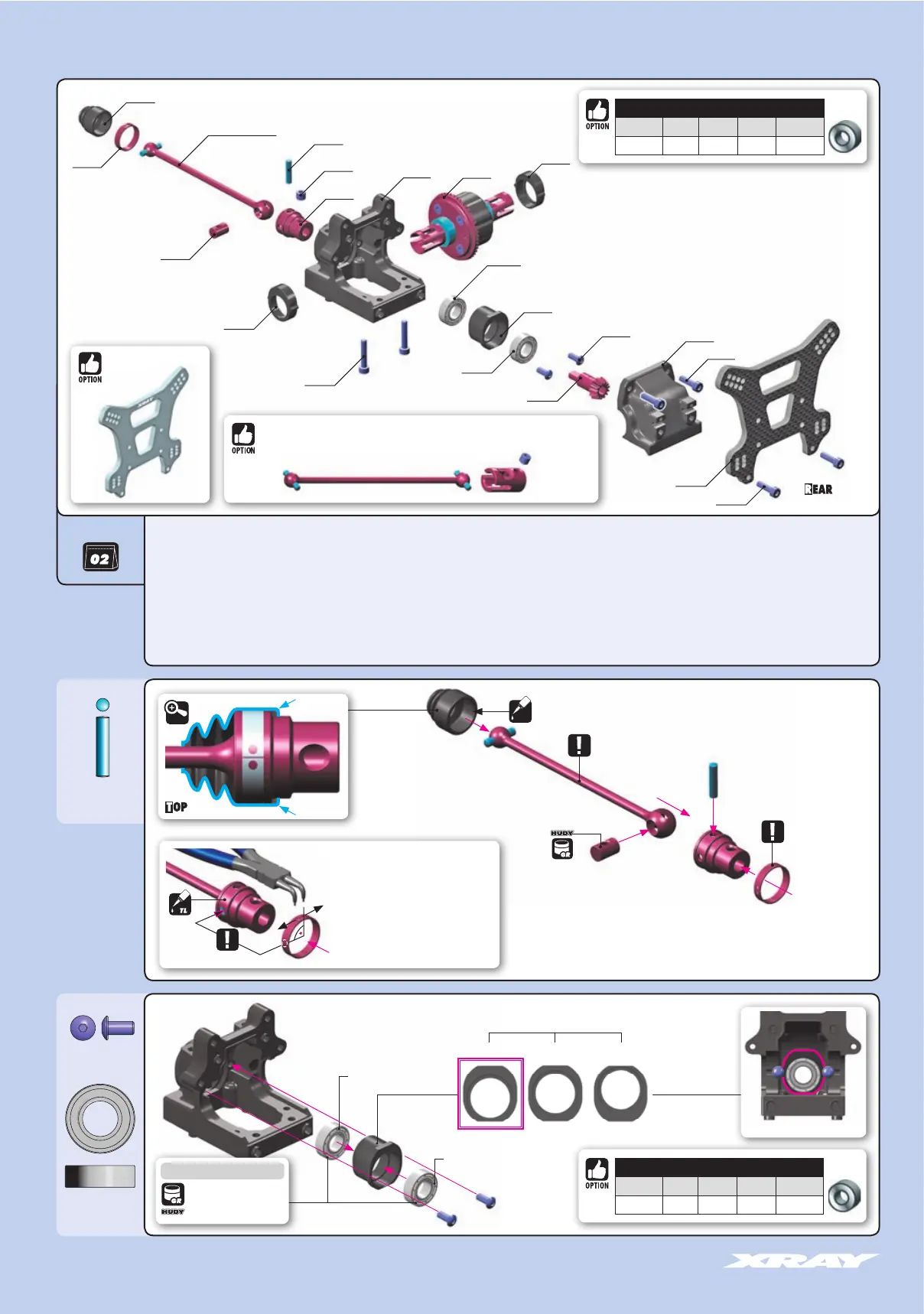

352009 SEMI-SPLIT DIFF BULKHEAD BLOCK SET FRONT/REAR
352015 XB8 GEARBOX PINION HEIGHT INSERT (1+1)
352073 XB8 GEARBOX DIFF HEIGHT INSERT (2+2)
353055 GRAPHITE REAR SHOCK TOWER FOR SEMI-SPLIT BULKHEAD 4MM
354813 BEVEL DRIVE PINION GEAR 13T - MATCHED FOR 46T LARGE BEVEL GEAR
355236 CVD DRIVE SHAFT COUPLING - HUDY SPRING STEEL™
355414 CENTRAL CVD SHAFT UNIVERSAL JOINT - HUDY SPRING STEEL™
355471 DRIVE SHAFT LOCKING RING (2)
355472 DRIVE SHAFT BOOT (2)
355627 REAR CENTRAL CVD DRIVE SHAFT 115MM - HUDY SPRING STEEL™
901504 HEX SCREW SB M5x4 (10)
902306 HEX SCREW SH M3x6 (10)
908312 HEX SCREW SOCKET HEAD CAP SCH M3x12 (10)
908316 HEX SCREW SOCKET HEAD CAP SCH M3x16 (10)
930816 BALL-BEARING 8x16x5 STEEL SEALED - GREASE (2)
980314 PIN 3x14 (10)
355006 DIFFERENTIAL 46T - MATCHED FOR 13T PINION GEAR - SET
#355415 CENTRAL DOGBONE SHAFT UNIVERSAL JOINT - HUDY SPRING STEEL™+
#355632 FRONT CENTRAL DOGBONE DRIVE SHAFT 116MM - HUDY SPRING STEEL™
