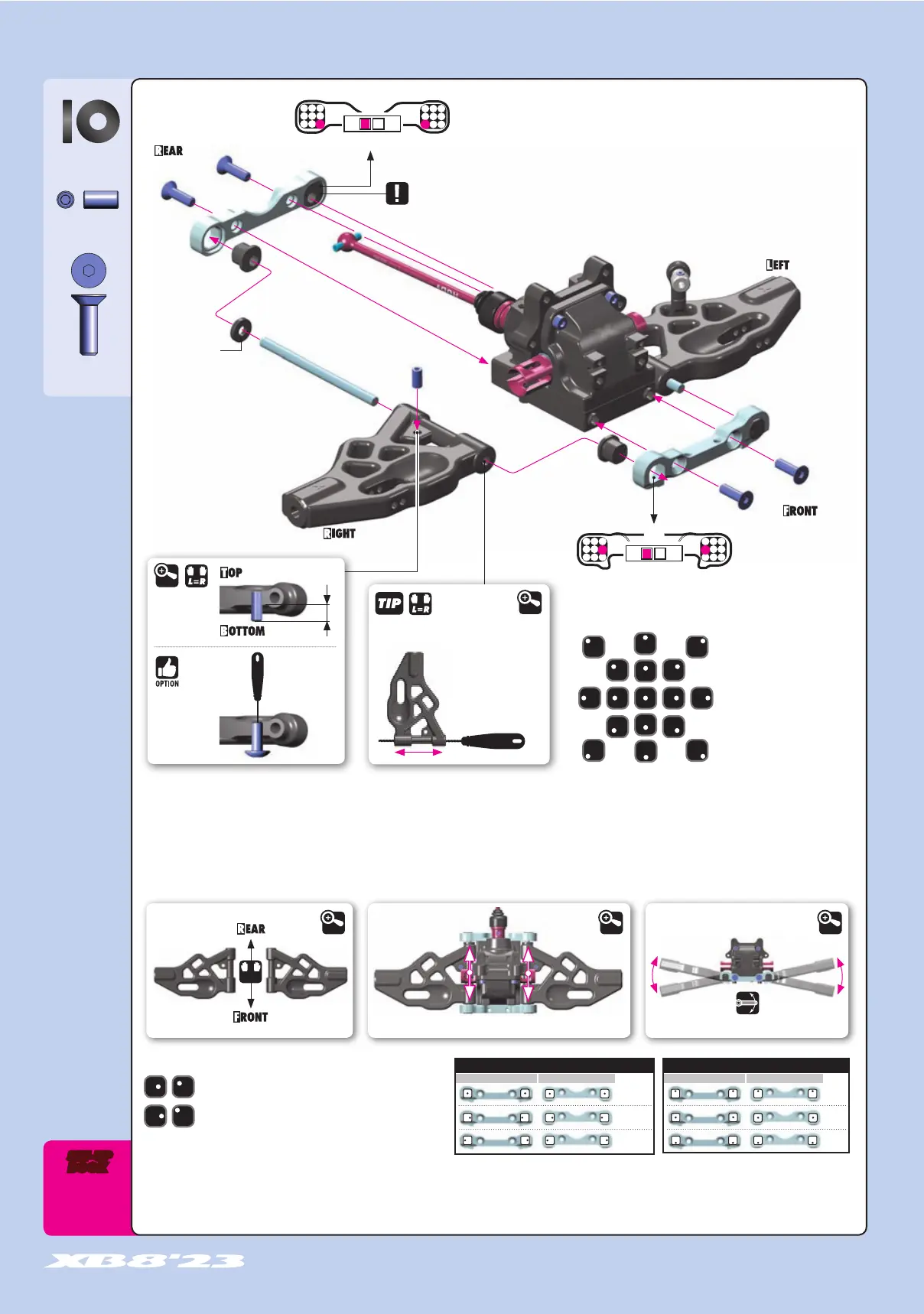

5. FRONT SUSPENSION
KICK UP
ROLL CENTER DOWNSTOP
WHEELBASE
TRACK WIDTH
901408
SB M4x8
353371
SHIM 4x10x2
903414
SFH M4x14
All possible mounting alternatives
of eccentric bushings.
The tables below describe the amounts of kick-up, front track-width change depending on the combinations
of eccentric bushings used with 0 and 1mm, 1° offset. The 0.5mm, 0.5° represents the half change.
* NOT recommended to use this setting.
TRACK-WIDTH ROLL CENTER
FF FFFR FR(mm) (mm)
=308
=306
=310*
=1
=0
=-1
The XRAY alu front lower suspension holders provide even greater range of
adjustment for the front suspension. Using different combinations of eccentric
bushings, fine adjustment of front kick-up, roll center, and front track-width
can be obtained. For more information about the influence of kick-up, front
track-width, and roll centers on car handling, please refer to HUDY Off-Road
Set-up Book (#209099).
Eccentric bushings have two different offsets from the center.
Middle position = 0.5 mm or 0.5° from center
Outer position = 1mm or 1° from center
➊
➊
➋
➌
➌
➍
➍
➎
4x8mm
FR
FF
2mm
DETAIL
FRONT ARM
L=R
DETAIL
Check for free movement.
DETAIL
Push the arm from both sides to create play.
INITIAL SETTING
FF
(HUDY #107644)
ARM REAMER
If the suspension arms DO NOT move freely,
use a HUDY Arm Reamer to resize the holes.
DETAIL
0.0mm
DOWNSTOP SETTING
DETAIL
2.0mm Allen
#902407
Downstop screw
for fine tuning.
INITIAL SETTING
0.5º
1º
INITIAL SETTING
FR
0.5º1º
BOOK
SET-UP
Push bushing into suspension
holder until flush.
To Next Page
