Xray XB8 User Manual

23
980317
P 3x17
901504
SB M5x4
941318
BB 13x19x4
980263
P 2.5x13
940816
BB 8x16x5
➌
2.5x13mm
8x16x5mm
3x17mm
13x19x4mm
94mm - LONG CVD DRIVE SHAFT
352244-H
BAG 00.9
BAG 00.9

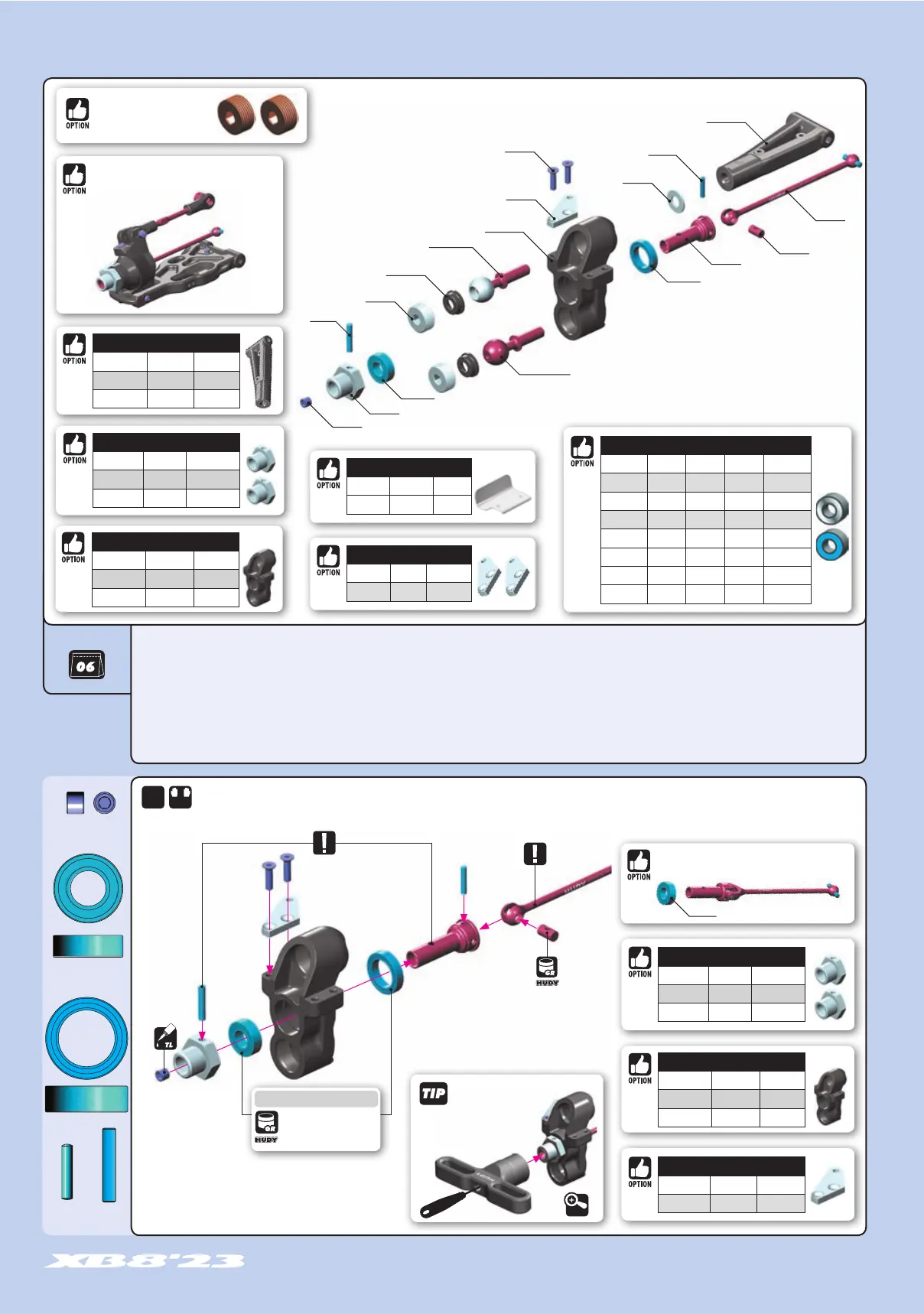

6. FRONT SUSPENSION
352135-M FRONT UPPER ARM - MEDIUM
352244-H PB STEERING BLOCK LB - HARD
352370 ALU STEERING PLATE - SWISS 7075 T6 (L+R)
355211 CVD DRIVE AXLE - HUDY SPRING STEEL™
355221 CVD UNIVERSAL DRIVE SHAFT 94MM - HUDY SPRING STEEL™
355237 CVD DRIVE SHAFT COUPLING - HUDY SPRING STEEL™
355251 ALU WHEEL AXLE OFFSET "+1MM" - HARD COATED (2)
357250 STEEL PIVOT BALL 13.7 MM (2)
357251 ALU PIVOT BALL 13.7 MM WITH STEEL SCREW (2)
BAG
352370
357256
357251
ALU BLACK
STEEL SILVER
357250
941318
355211
355221
(94mm)
355237
352135-M
980317
355251
901504
357254-G
357252
940816
903312
357252 ALU ADJUSTING NUT M15x1 (2)
357254-G COMPOSITE BALL CUP 13.9 MM - GRAPHITE (2)
357256 ALU SHIM 6x13x1 (2)
901504 HEX SCREW SB M5x4 (10)
903312 HEX SCREW SFH M3x12 (10)
940816 BALL-BEARING 8x16x5 RUBBER SEALED - GREASE (2)
941318 BALL-BEARING 13x19x4 RUBBER SEALED - GREASE (2)
980263 PIN 2.5x13 (10)
980317 PIN 3x17 (10)
#357253
BRASS ADJUSTING NUT M15x1
L=R
2x
➊
➋
➎
➍
➍
➏
➐
NOTE ORIENTATION
To tighten the setscrew you
can also use the (HUDY 17mm
Wheel Nut Tool #107570).
2.5mm
DETAIL
940816
#355222
UNIVERSAL DRIVE SHAFT - HUDY SPRING STEEL™
OFFSET WHEEL AXLES
#355250 0mm OPTION
#355251 +1mm INCLUDED
#355252 +2mm OPTION
FRONT UPPER SUSP. ARMS
#352135 SOFT OPTION
#352135-M MEDIUM INCLUDED
#352135-G GRAPHITE OPTION
OFFSET WHEEL AXLES
#355250 0mm OPTION
#355251 +1mm INCLUDED
#355252 +2mm OPTION
STEERING BLOCKS
#352244 MEDIUM OPTION
#352244-H HARD INCLUDED
#352244-G GRAPHITE OPTION
ALU STEERING PLATE
#352372 1 DOTS OPTION
#352370 2 DOTS INCLUDED
FRONT ARM WINGS
#352194 LEXAN® OPTION
#352195 CARBON OPTION
ALU STEERING PLATE
#352372 1 DOTS OPTION
#352370 2 DOTS INCLUDED
Graphite Grease
(HUDY #106210)
980263
#350910
C-HUB FRONT SUSPENSION CONVERSION SET
Use HUDY Ball-Bearing Grease
#106220 - STANDARD
#106221 - BLUE
#106222 - RED
XRAY BALL-BEARINGS
#930816 8x16x5 GREASE STEEL OPTION
#940816 8x16x5 GREASE RUBBER INCLUDED
#931318 13x19x4 GREASE STEEL OPTION
#941318 13x19x4 GREASE RUBBER INCLUDED
#930817 8x16x5 OIL STEEL OPTION
#940817 8x16x5 OIL RUBBER OPTION
#931319 13x19x4 OIL STEEL OPTION
#941319 13x19x4 OIL RUBBER OPTION
STEERING BLOCKS
#352244 MEDIUM OPTION
#352244-H HARD INCLUDED
#352244-G GRAPHITE OPTION
