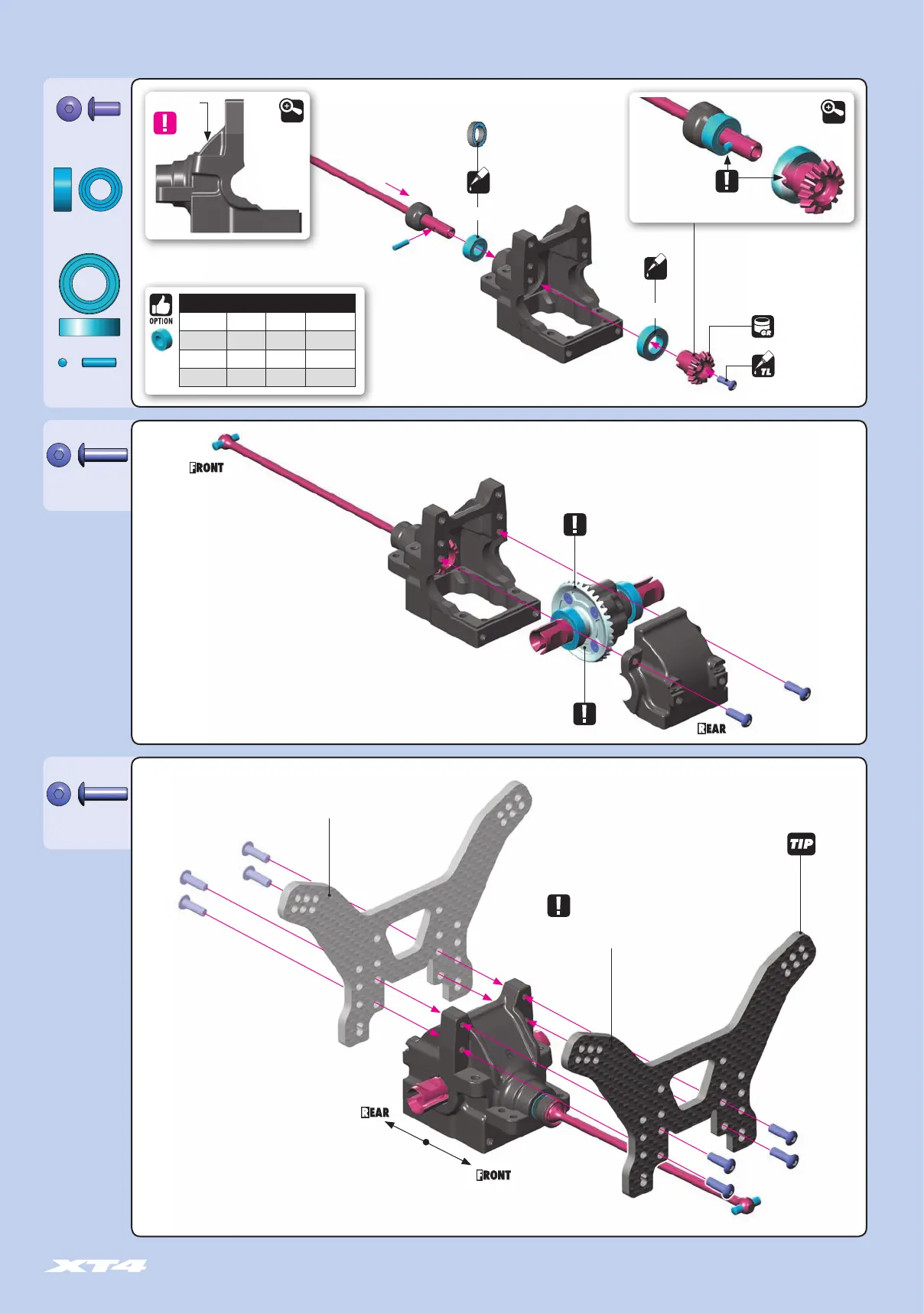

2. REAR CENTRAL TRANSMISSION
➊
➋
➌
➍
➎
➏
Bearing with BLUE
rubber covers
Follow the TECH TIP on page 5
to prepare graphite parts
940510
BB 5x10x4
902310
SH M3x10
902306
SH M3x6
902310
SH M3x10
THREAD LOCK
8x14x4mm
OIL
GRAPHITE GREASE
(HUDY #106210)
NOTE ORIENTATION
REAR DIFF 10.000cSt
NOTE ORIENTATION
DETAIL
XRAY BALL-BEARINGS
#359050 5x10x4 GREASE OPTION
#940510 5x10x4 OIL INCLUDED
#940814 8x14x4 GREASE OPTION
#940815 8x14x4 OIL INCLUDED
981208
P 2x8
Bearing Oil
(HUDY #106230)
5x10x4mm
OIL
Bearing Oil
(HUDY #106230)
REAR BLOCK
DETAIL
Marked “R”
940815
BB 8x14x4
(INITIAL SETTING)
SHOCKS MOUNTED IN FRONT OF REAR SHOCK TOWER
ALTERNATIVE 1
DO NOT USE FOR BASIC SET-UP
SHOCKS MOUNTED BEHIND REAR SHOCK TOWER
Alternatives shock mounted folow page 39 / step 2 and 3.
NOTE
ALTERNATIVE 2
