Xray XT4 User Manual

32
903308
SFH M3x8
902318
SH M3x18
BAG

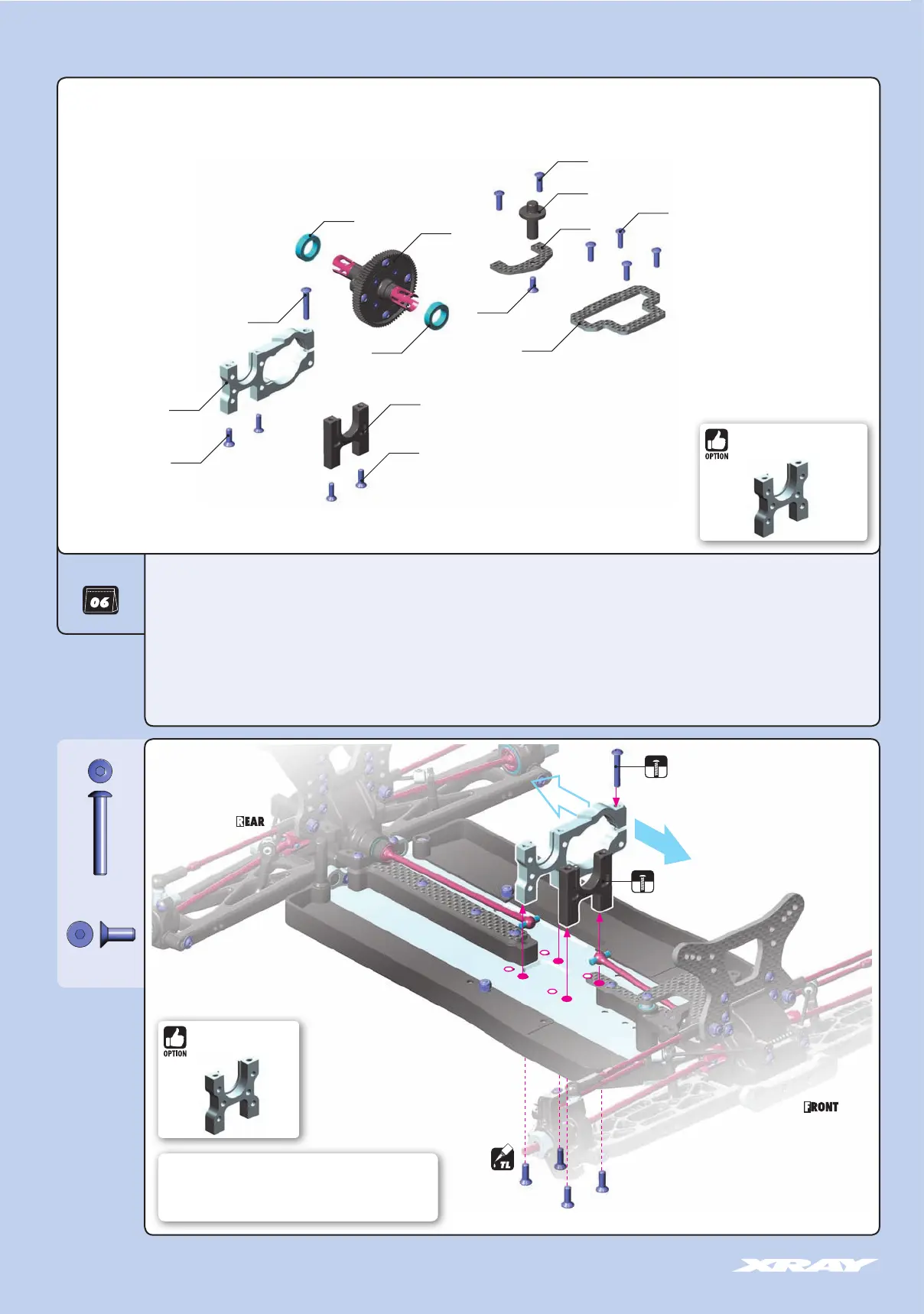

6. SLIPPER CLUTCH ASSEMBLY
361175 GRAPHITE CENTER UPPER DECK 2.0MM - V2
361187 GRAPHITE REAR UPPER BRACE 2.0MM
361320 BODY MOUNT, BATTERY MOUNT - V2 & WING SHIM (2)
364013 ALU MOTOR BULKHEAD - LOWER
364023 COMPOSITE CENTRAL BULKHEAD - LOWER
902308 HEX SCREW SH M3x8 (10)
902318 HEX SCREW SH M3x18 (10)
903308 HEX SCREW SFH M3x8 (10)
941015 BALL-BEARING 10x15x4 RUBBER SEALED - OIL (2)
364901 GEAR CENTER DIFFERENTIAL - SET
364023
941015
902318
364013
903308
941015
903308
903308
361175
364901
361320
361187
902308
902308
#364024
ALU
CENTRAL BULKHEAD
ALTERNATIVE 1
FORWARD WEIGHT POSITION
(INITIAL SETTING)
FORWARD WEIGHT POSITION
More traction on the front suspension, increases rotation of the car in
corners, recommended for use on medium- and high-traction tracks.
TIGHTEN GENTLY
TIGHTEN GENTLY
#364024
ALU
CENTRAL BULKHEAD
