33
903308
SFH M3x8
902318
SH M3x18
NOTE ORIENTATION

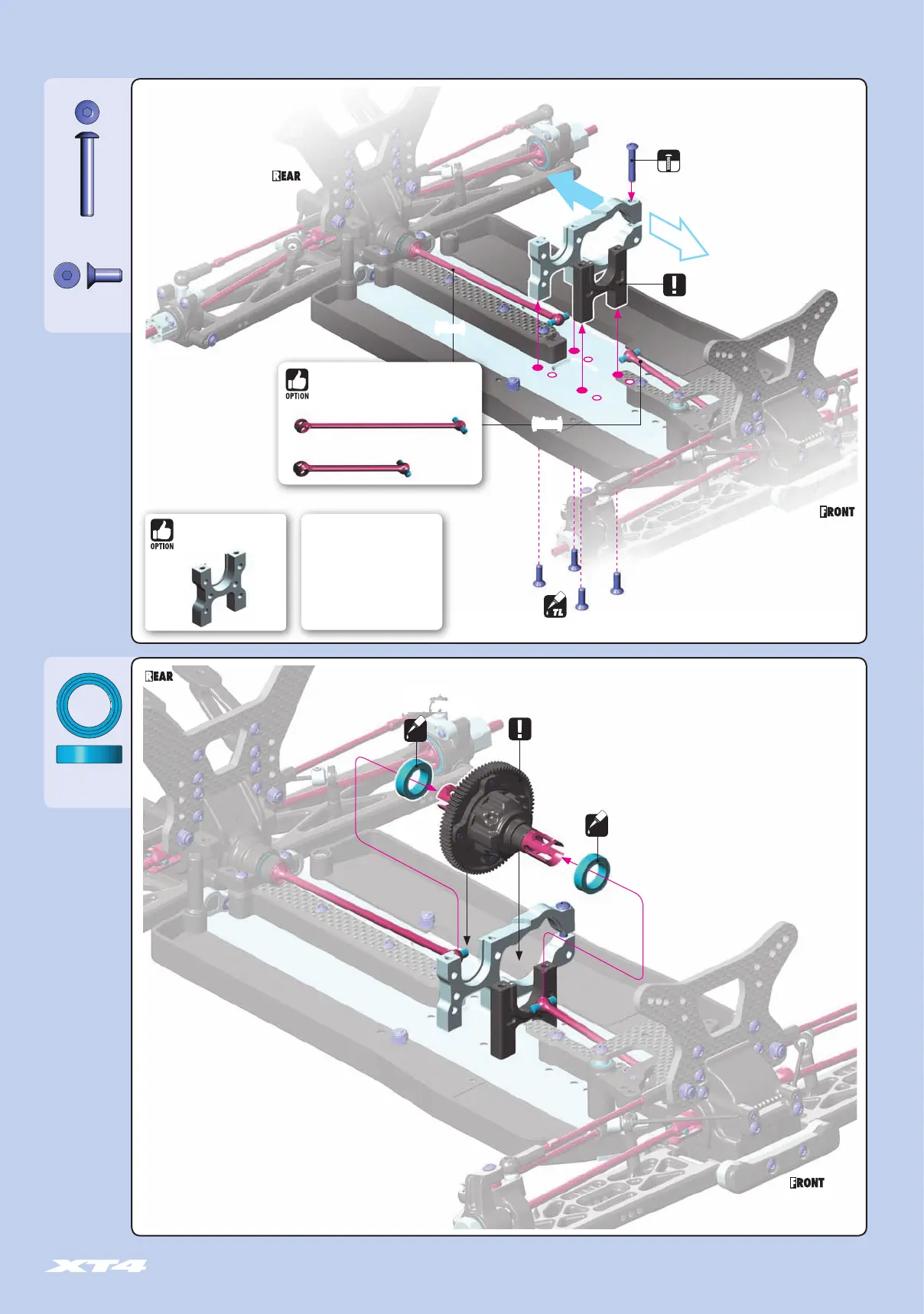

6. SLIPPER CLUTCH ASSEMBLY
941015
BB 10x15x4
ALTERNATIVE 2
REARWARD WEIGHT POSITION
(OPTION)
BEARING OIL
(HUDY #106230)
OIL
NOTE ORIENTATION
REARWARD WEIGHT
POSITION
More traction on the rear
suspension, increases stability of
the car, recommended for use on
very-low-traction tracks.
TIGHTEN GENTLY
(95mm)
(82mm)
#365425 Central Drive Shaft 95mm
82mm - HUDY Spring Steel™
95mm - HUDY Spring Steel™
#365428 Central Drive Shaft 82mm
#364024
ALU
CENTRAL BULKHEAD
BEARING OIL
(HUDY #106230)
OIL
