BEVEL GEARS
#364935 GRAPHITE OPTION
#364945 ALU OPTION
#364955 STEEL INCLUDED
BEVEL & SATELITTE GEARS + PINS
#304932 + #304980 GRAPHITE INCLUDED
#335030 + #335080 STEEL OPTION

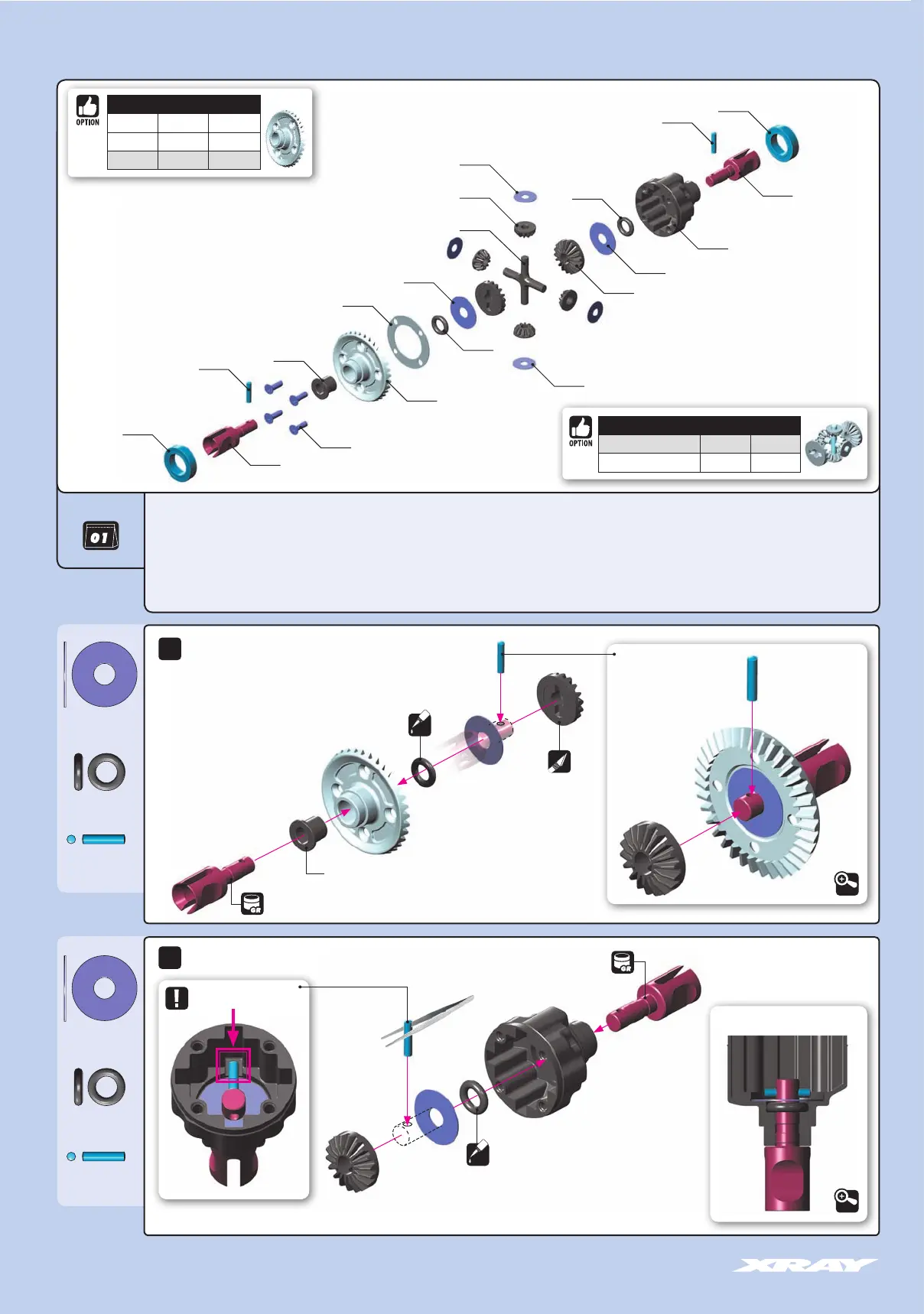

1. FRONT & REAR DIFFERENTIAL
2x
2x
STEP DETAIL
STEP DETAIL
Use tweezers to
insert pin
➊
➊
➋
➋
➌
➌
➍
➍
➍
➎
➎
➎
➍➎
➍
304932 GRAPHITE GEAR DIFF BEVEL & SATELLITE GEARS (2+4)
304980 COMPOSITE GEAR DIFF CROSS PIN
304990 DIFF GASKET (4)
364902 GEAR DIFFERENTIAL FOR 2.5MM PIN - SET
364910 COMPOSITE GEAR DIFFERENTIAL CASE
364955 STEEL DIFFERENTIAL BEVEL GEAR 35T
364961 GEAR DIFF OUTDRIVE ADAPTER FOR 2.5MM PIN - HUDY SPRING STEEL™ (2)
364990 COMPOSITE BEVEL GEAR BUSHING (2)
903258 HEX SCREW SFH M2.5x8 (10)
941014 BALL-BEARING 10x15x4 RUBBER SEALED - GREASE (2)
964031 WASHER S 3.5x10x0.2 (10)
964050 WASHER S 5x15x0.3 (10)
972050 SILICONE O-RING 5x2 (10)
981210 PIN 2x10 (10)
BAG
364961
364910
964050
964031
972050
364955
903258
364961
304932
941014
981210
972050
964031
964050
304990
364990
981210
941014
304932
304980
972050
O 5x2
972050
O 5x2
964050
S 5x15x0.3
964050
S 5x15x0.3
981210
P 2x10
981210
P 2x10
CUTAWAY VIEW
NOTE ORIENTATION
OIL
OIL
DO NOT USE for optional ALU or GRAPHITE gears
DETAIL
DETAIL
#106210 HUDY GRAPHITE GREASE
#106210 HUDY GRAPHITE GREASE
