28
902314
SH M3x14
902312
SH M3x12
902314
SH M3x14
902316
SH M3x16
903310
SFH M3x10
903310
SFH M3x10

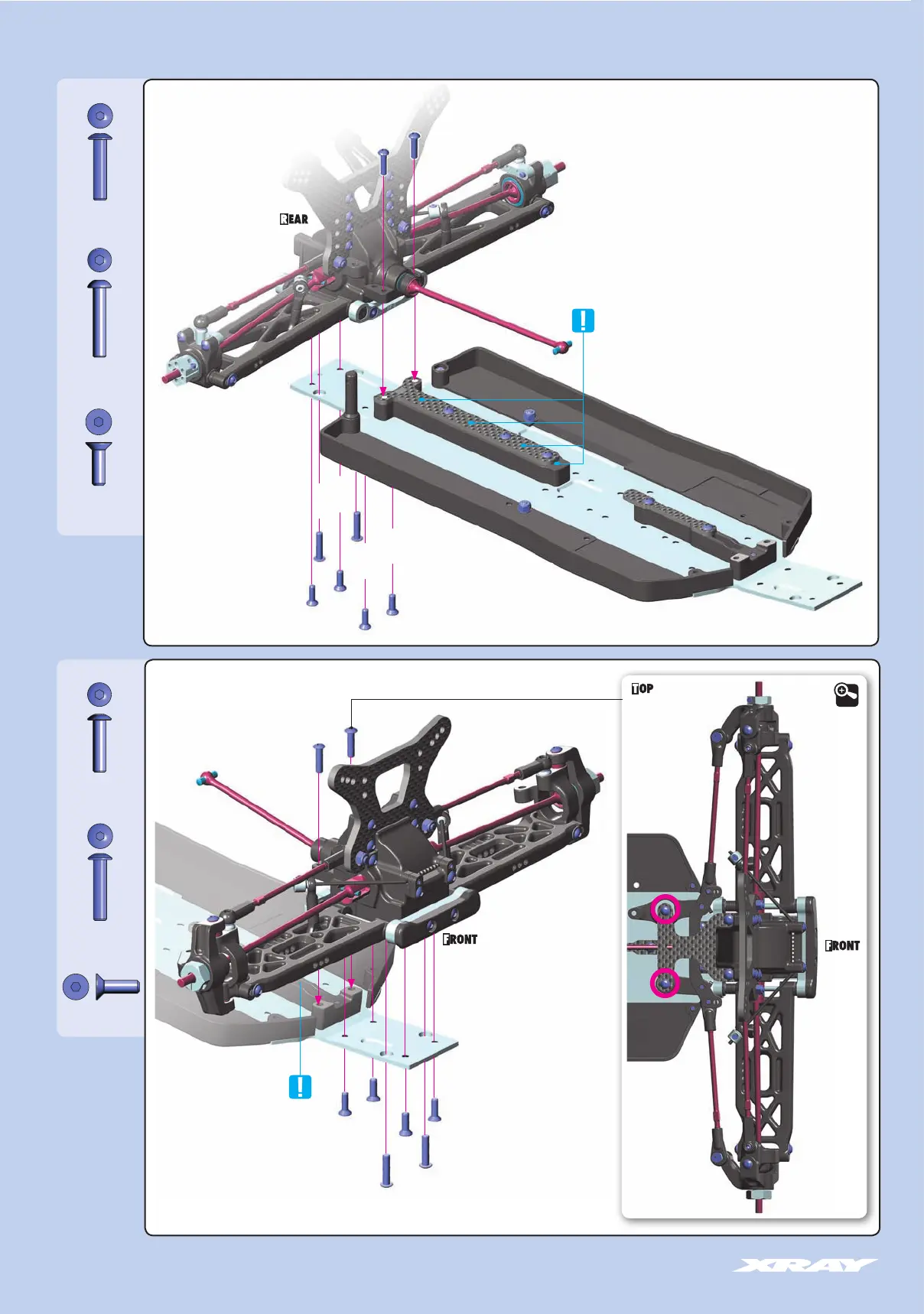

4. FRONT & REAR ASSEMBLY
3x16mm
3x14mm
3x10mm
3x10mm
3x10mm
3x14mm
3x10mm
After you mount the rear suspension
assembly to the chassis, fully tighten
all 4 screws that were previously left
untightened (page 25, step 2).
After you mount the front suspension
assembly to the chassis, fully tighten
all 3 screws that were previously left
untightened (page 25, step 2).
3x10mm
3x12mm
DETAIL
