Xray XT4 User Manual

30
SERVO SAVER
940508
BB 5x8x2.5
970100
O 10x1.5
Bearing Oil
(HUDY #106230)
STEERING PLATES
#362571 HARD INCLUDED
#362571-G GRAPHITE OPTION
#362574 ALU OPTION

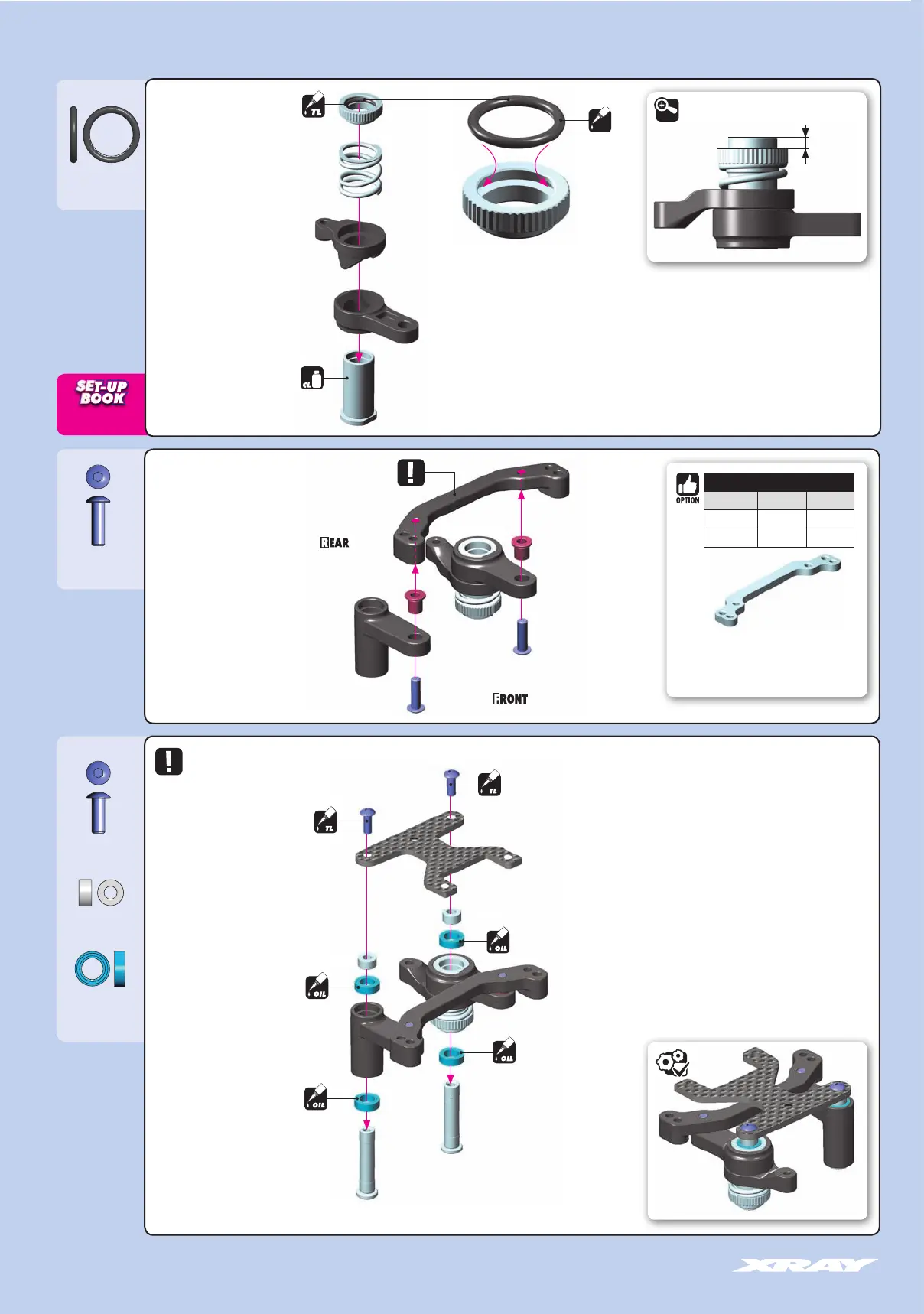

5. STEERING
NOTE ORIENTATION
NOTE ORIENTATION
303125
SHIM 3x6x3
902308
SH M3x8
902310
SH M3x10
Increases steering precision and predictability
and is recommended for use in high-traction
conditions. Includes extra Ackermann positions
for very precise steering adjustment.
3~4mm
INITIAL PRELOAD SETTING
CLEANER
THREAD LOCK
OIL
DETAIL
3x6x3mm
3x6x3mm
Bearing Oil
(HUDY #106230)
