SHOCK OIL
902205
SH M2x5
Gently push the shock shaft
completely into the shock body.
Excess oil will flow through the
hole in the shock cap.
Keep the shock shaft pushed in the
shock body and insert the screw
into the shock cap. Tighten gently.
6x push the shaft up and down. Untighten the screw. Tighten the screw.
The rebound will be at approx. 0%
TIGHTEN FULLY
Gently push the shock shaft
completely into the shock body.
Excess oil will flow through the
hole in the shock cap.
FRONT (SHORT)
Oil 650cSt
2x
REAR (LONG)
Oil 450cSt
2x
Extend the shock shaft completely.
Fill the shock body with the shock
oil. For the FRONT shocks (short)
use 650cSt oil. For the REAR shocks
(long) use 450cSt oil.
Move the shock shaft up and
down a few times to release the
air bubbles trapped beneath the
piston.
Orient the filled shock vertically
for several minutes with the
shock shaft fully extended. The
remaining air bubbles will
release.
Gently place the shock cap onto
the filled shock body and start to
tighten the cup. Tighten the cap
fully.
➊ ➋ ➌ ➍ ➎
➏ ➐ ➑ ➒ ➓
3~5x
UP & DOWN
6x
UP & DOWN
DEFAULT SHOCK REBOUND SETTING 0% REBOUND
Follow the steps below to set the shock rebound to the default setting of 0%.

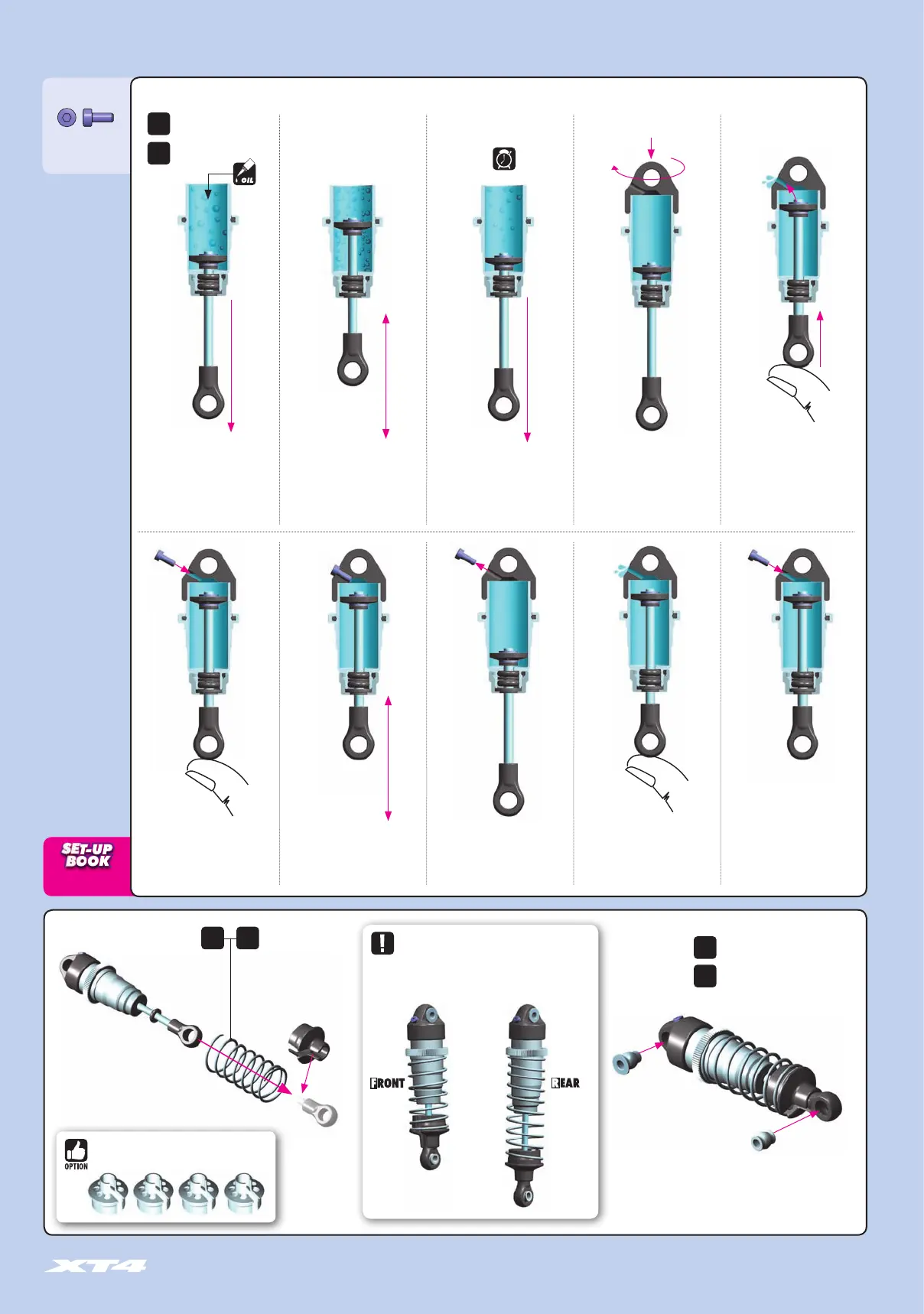

7. SHOCK ABSORBERS
SHORT FRONT SHOCKS
Short Springs
FRONT SHOCKS (SHORT)
REAR SHOCKS (LONG)
LONG REAR SHOCKS
Long Springs
IMPORTANT
Both FRONT SHOCKS must be the same overall length.
Both REAR SHOCKS must be the same overall length.
2x2x
2x
2x
#368021
ALU SHOCK SPRING RETAINING COLLAR (4)
