15

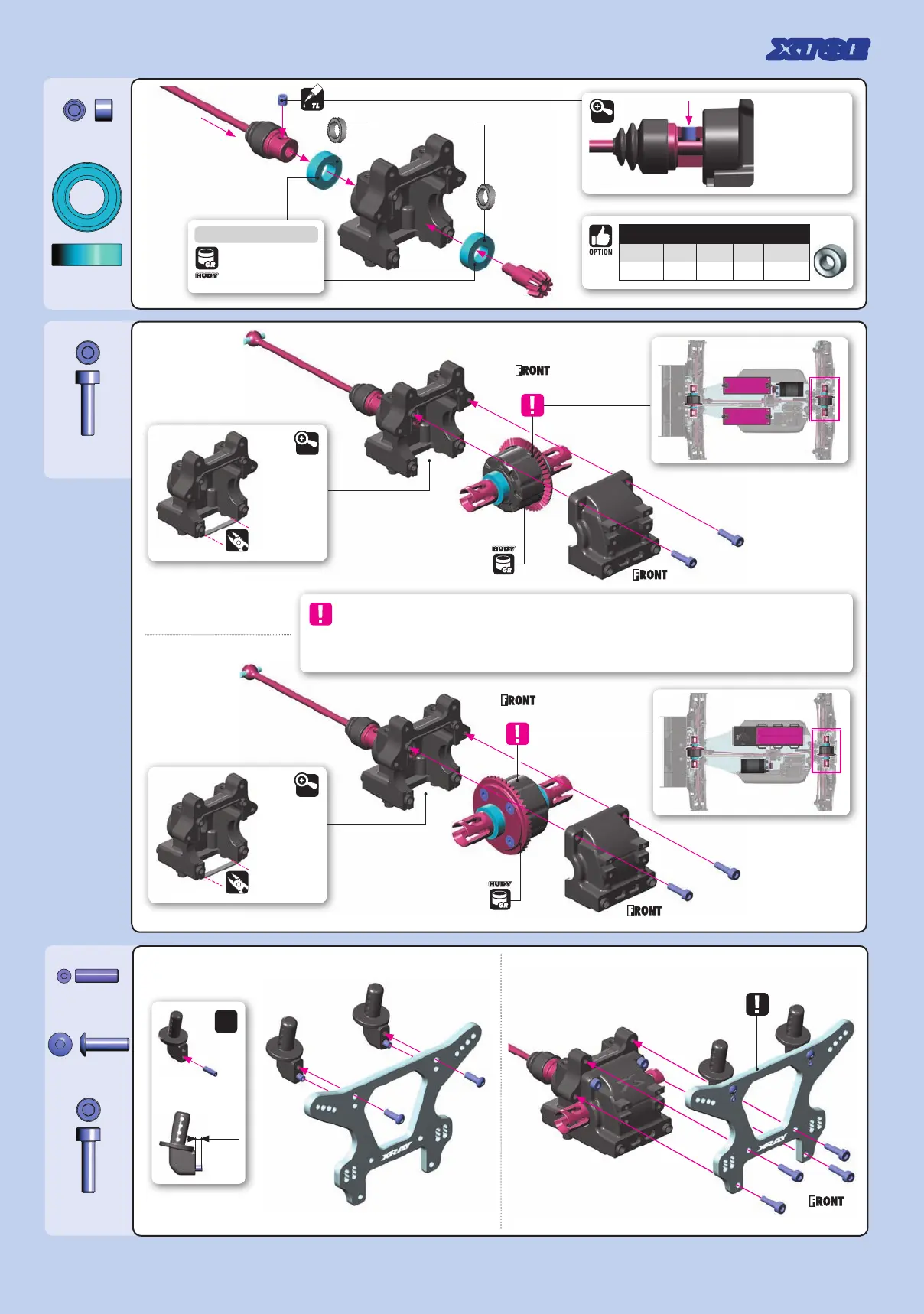

2. FRONT TRANSMISSION
930816
BB 8x16x5
908312
SCH M3x12
902310
SH M3x10
Cut on both front
and rear
bulkhead blocks.
DETAIL
Cut on both front
and rear
bulkhead blocks.
DETAIL
NOTE DIFF ORIENTATION
NOTE DIFF ORIENTATION
FRONT DIFF
10.000cSt
FRONT DIFF
10.000cSt
Graphite Grease
(HUDY #106210)
Graphite Grease
(HUDY #106210)
908312
SCH M3x12
During assembly, there is no need to check gear mesh or diff play. In particular, do not check gear mesh and diff play when the
differential is installed only in the gear box without the suspension holders and without being mounted to the chassis. All parts have
specifically designed play, and only when the car is fully assembled will it have the proper amount of play where necessary. Only
once you build the entire car, then you can check for free movement of all rotational parts and drivetrain as well a free non-binding
operation of suspension parts.
Diff orientation for the
SADDLE PACK ALTERNATIVE
Diff orientation for the
BRICK ALTERNATIVE
(INITIAL SETTING)
901310
SB M3x10
901504
SB M5x4
XT8E
NOTE DIFF ORIENTATION
SADDLE PACK LAYOUT
NOTE DIFF ORIENTATION
BRICK LAYOUT
➊
➋
➌
➍
➎
DETAIL
STEP DETAIL
➎
➎
Push joint against
gear to remove gap.
Tighten setscrew onto
gear flat spot.
XRAY BALL-BEARINGS
#930816 8x16x5 GREASE STEEL INCLUDED
#930817 8x16x5 OIL STEEL OPTION
Use HUDY Ball-Bearing Grease
#106220 - STANDARD
#106221 - BLUE
#106222 - RED
NOTE
ORIENTATION
3.5mm
2x
Bearing with STEEL covers.
To Next Page
