Xray XT8 User Manual

60
XT8
353513-K
12
BAG
351310 FOAM WASHER FOR BODY POSTS (4)
353565 COMPOSITE REAR WING SHIM - BLACK (2)
355261 WHEEL NUT - RIBBED - HARDvCOATED (2)
356200 BRAKE/THROTTLE ARMS & SERVO ARMS - SET
356402 BRAKE/THROTTLE SYSTEM - SET
356510 CLOSED BALL JOINT 3.9 (4)
358047 STEEL SCREW SHOCK PIVOT BALL WITH HEX (2)
358811 AIR FILTER ELBOW - LOW PROFILE
358821 AIR FILTER BODY & CAP - LOW PROFILE
358841 AIR FILTER FOAM & OIL - LOW PROFILE
358950 SILICONE TUBING 1M (2.4 x 5.5MM)
359400 BODY CLIP (10)
356402
356402
356402
356510
902310
356200
356402
356402
356402
356402
356402
353565
358821
902308
358811
358821
358841
358841
902318
902319
358047
Wheels / Inserts / Tires
(NOT INCLUDED)
Body
(NOT INCLUDED)
358047
355261
960030
960030
960030
960030
REAR
SHOCK
FRONT
SHOCK
903312
359400
901303
356402
903314
351310
901302
961022
358950
356402

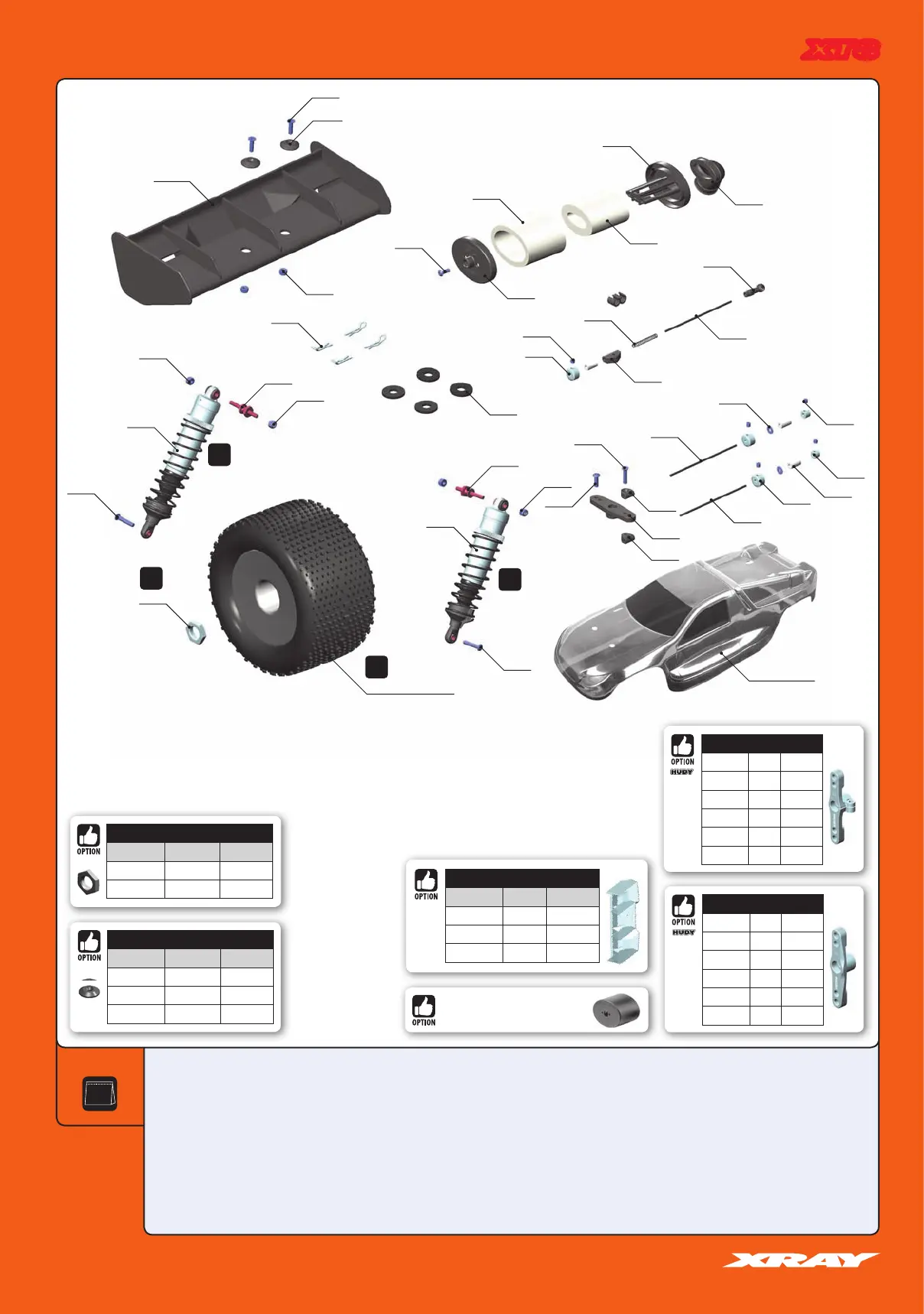

12. FINAL ASSEMBLY
#358832
AIR FILTER RAIN COVER
2x
2x
WING SHIMS
#353565 COMPOSITE INCLUDED
#293561 ALU OPTION
#293561-O ALU OPTION
#353561 ALU OPTION
WHEEL NUTS
#355261 OPEN INCLUDED
#293560 COVERED OPTION
#355265 COVERED OPTION
4x
4x
901302 HEX SCREW SB M3x2.5 (10)
901303 HEX SCREW SB M3x3 (10)
902308 HEX SCREW SH M3x8 (10)
902310 HEX SCREW SH M3x10 (10)
902318 HEX SCREW SH M3x18 (10)
902319 HEX SCREW SH M3x18 - LEFT THREAD (10)
903312 HEX SCREW SFH M3x12 (10)
903314 HEX SCREW SFH M3x14 (10)
960030 NUT M3 (10)
961022 WASHER S 2.2 (10)
353513-K REAR WING - IFMAR - BLACK
CLAMP ALU SERVO HORNS
#293444 23T OPTION
#293445 24T OPTION
#293446 25T OPTION
#293447 23T OPTION
#293448 24T OPTION
#293449 25T OPTION
ALU SERVO HORNS
#293504 23T OPTION
#293505 24T OPTION
#293506 25T OPTION
#293507 23T OPTION
#293508 24T OPTION
#293509 25T OPTION
WINGS
#353513-K BLACK INCLUDED
#353513 WHITE OPTION
#353513-Y YELLOW OPTION
#353512 LEXAN
®
OPTION

Xray XT8 Specifications

General

Scale	1/8
4WD/2WD	4WD
Width	300 mm
Chassis Material	Aluminum
Shock Type	Oil-filled
Height	180mm
Gear Type	Spur Gear
